HLA Attachments

   Stone Fork (Retainer Style Tine) COMPACT DUTY   1" Shaft diameter  2-½" spacing between tines  Points are ⅝" thick, 400 Brinell high strength steel  23" high  35" deep  2000 lbs capacity           ...

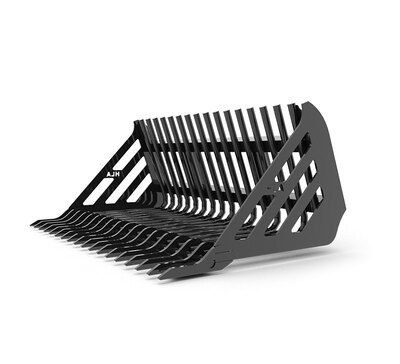

   Stone Fork (Retainer Style Tine) REGULAR DUTY   REGULAR DUTY  1-¼" shaft diameter  2-½" spacing between tines  Points are 5/8" thick, 400 Brinell high strength steel  23" high  40" deep  5500 lbs capacity           ...

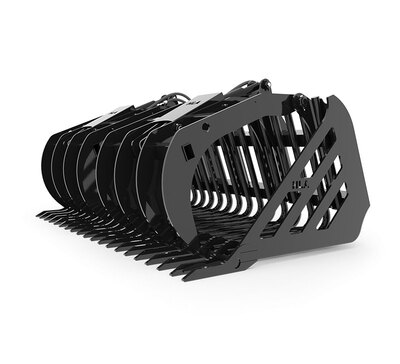

  Stone Fork (Retainer Style Tine) with Split Grapple - HEAVY DUTY   HEAVY DUTY - UP TO 9500 LB CAPACITY  Two independent grapples  Ideal for brush & rock clean up  Ideal for awkward abrasive loads  30" overall height  40" overall depth  Comes with 2-½" x 8" cylinders           ...

 Stone Fork (Retainer Style Tine) with Split Grapple - REGULAR DUTY   REGULAR DUTY - UP TO 5500 LB CAPACITY  Two independent grapples  Ideal for brush & rock clean up  Ideal for awkward abrasive loads  30" overall height  40" overall depth  Comes with 2-½" x 8" cylinders           ...

  Compact Brush Grapple w/ Electric Actuator   Opens to 38" wide from ground to point of grapple  Tine tips and grapple tips are AR400 material  Tine spacing 6" on center  Single grapple arm  28" overall height  33" overall depth  Comes with 8" stroke 12V heavy duty linear actuator           ...

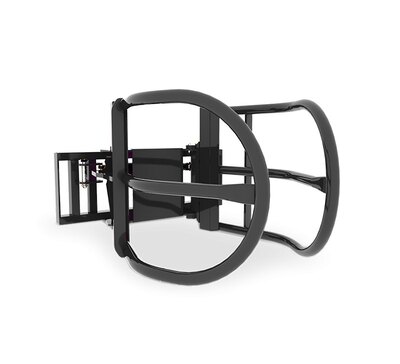

 Round Bale Grapple (BG4000)   Designed for gentle handling of heavy wrapped silage bales  Lockable arms, one arm can be locked in a fixed position using pins so that all movement occurs in the other arm. Useful for stacking.  Works with up to 5' diameter bales  Approximate weight: 590 lbs  1800 lbs capacity           ...

Square Bale Grapple (BG6000)   Same specs and design as round bale grapple with arms to accept square bales 4 - 6 ft long and round bales 5-6 ft diameter  Opens up to 84"  Approximate weight: 570 lbs  2000 lbs capacity           ...

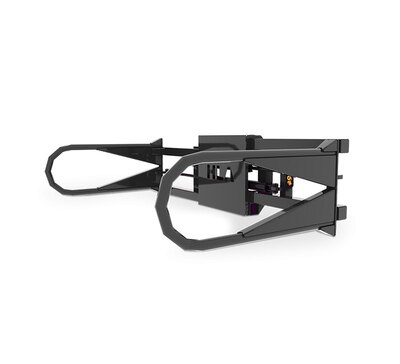

Square Bale Squeeze (BG7000)   86" extended – 30" Retracted  Arms are 50” long, 20” tall  2-½" x 28" stroke cylinder  Slim brace arm design allows for tight stacking of bales  Approximate weight: 810 lbs  3000 lbs capacity           ...

Compact Utility Grapple   To be fitted on models SBC, MBC & LDFE  Heavy duty welded cylinder  Opens up to 37-½"           ...

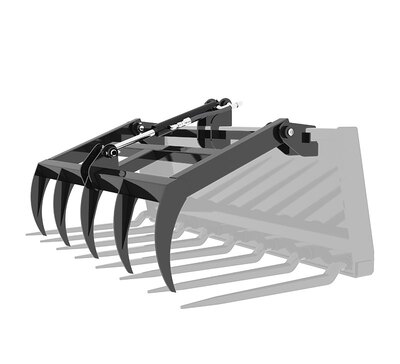

Regular Utility Grapple   Can be fitted to models SB, SBHV, MB, MBHV, MFE, & SFR  Accommodates 4ft round bales  Works equally well on other materials such as manure, etc.  Opens up to 70"  Available for 72", 84", and 96" forks and buckets  Comes with cylinders           ...

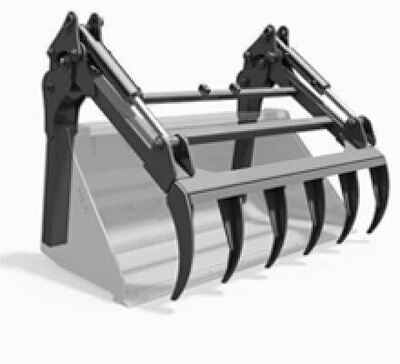

Large Utility Grapple   Can be fitted to models SB, SBHV, MB, MBHV, MBHVX, & THMB (Does not fit THMBHV & THMBHVX buckets)  Specific heavy duty design for handling large round and square bales  Opens up to 72"  Removable / bolt-on mounting posts  Accomodates 6ft round bales           ...

Extra Large Utility Grapple   Can be fitted to THMBHV & THMBHVX buckets  Specific heavy duty design for handling large round and square bales  Opens up to 72”  Removable / bolt-on mounting posts  Accomodates 6ft round bales           ...

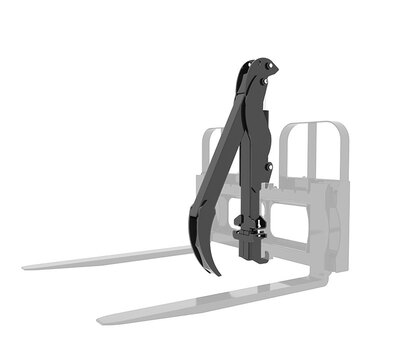

Single Arm Log Grapple   Removable log grapple for pallet forks  Clamps onto Class II or III fork frame (walk through guards only)  C/w Hydraulic cylinder           ...

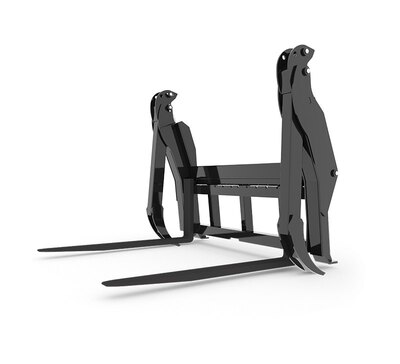

Log Grapple   Grapple version of HD55/HD75 pallet fork  42" solid fork lift tines  5500/7500 lbs capacity  C/w HD Cylinders           ...

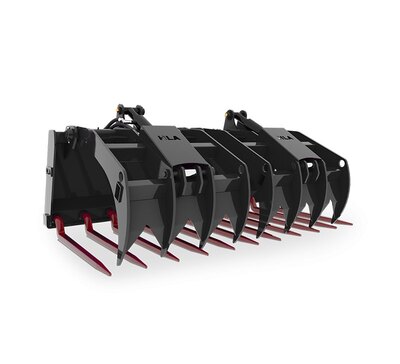

Debris Grapple Fork   Two independent grapples  Replaceable tempered tines eliminate the need for a support bar at points which reduces lodging and jamming when emptying bucket  Designed to pick-up brush and other debris while leaving the dirt  39" Conus II cranked Kverneland tines (32" usable length)  Cylinders completely protected from debris  Comes with 2...

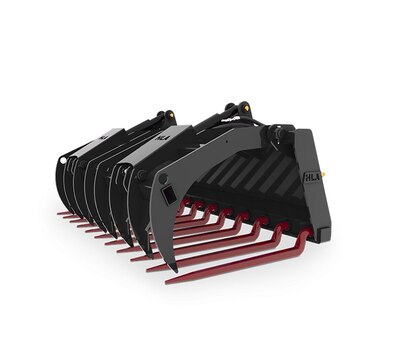

Manure Fork with Cranked Kverneland Tine & Skidsteer Grapple   Designed for use on skidsteers with limited clearance for grapple arms  Comes with 2-1/2" x 8" cylinders           ...

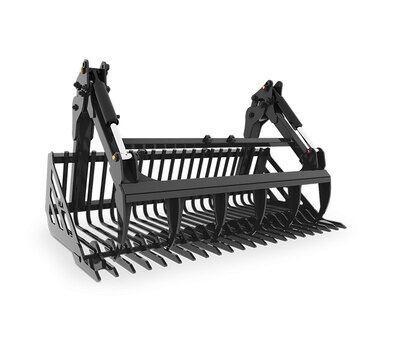

Regular Duty Stone Fork with Retainer Style Tine & Skidsteer Grapple   Designed for use on skidsteers with limited clearance for grapple arms  Same great features as regular & heavy duty stone forks  Comes with 2-1/2" x 8" cylinders           ...

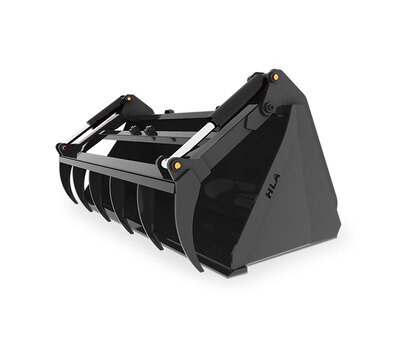

Low Profile Skidsteer Bucket & Skidsteer Grapple   Designed for use on skidsteers with limited clearance for grapple arms  Comes with 2-1/2" x 8" cylinders           ...

Standard Skidsteer Bucket & Skidsteer Grapple   Designed for use on skidsteers with limited clearance for grapple arms  Comes with 2-1/2" x 8" cylinders           ...

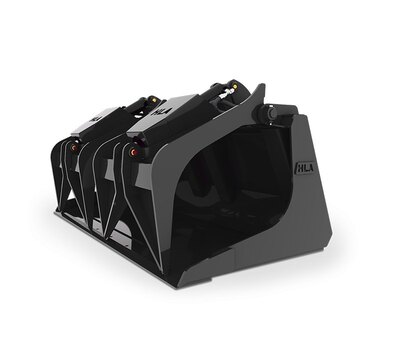

Scrap Grapple Bucket (Skidsteer)   Two independent grapples  1/4" material, 3/8" end plates  3/4 X 6 bevelled cutting edge  Ideal for awkward abrasive loads  31" overall height  34" overall depth  Comes with 2-1/2" x 8" cylinders  Drilled for standard bolt on cutting edge           ...
