HLA Attachments

Compact Scrap Grapple Bucket (Skidsteer)   3/16" material, 1/4" end plates  3/4 X 4 bevelled cutting edge  Single grapple arm  26" overall height  26" overall depth  Opens to 36"  Comes with 2-1/2" x 8" cylinder  Drilled for standard bolt on cutting edge  Add 2" to Inside Width column to calculate Outside Width of bucket      &n...

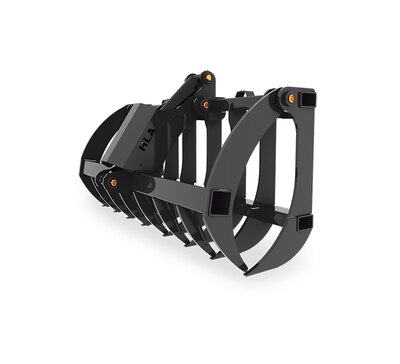

Compact Brush Grapple   Opens to 38" wide from ground to point of grapple  Tine tips and grapple tips are AR400 material  Tine spacing 6" on center  Single grapple arm  28" overall height  33" overall depth  Comes with 2-1/2" x 8" cylinder           ...

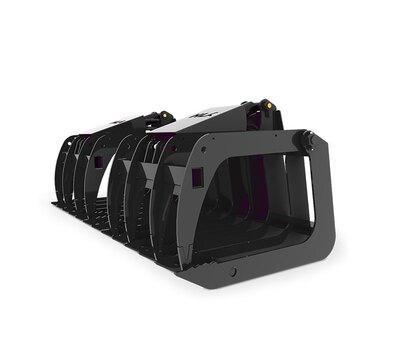

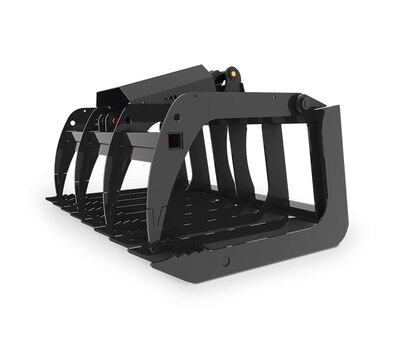

Brush Grapple   Opens to 48" wide from ground to point of grapple  Tine tips and grapple tips are AR400 material  Tine spacing 5-1/2" between  Independent grapples for clamping of awkward loads  Comes with 2-1/2" x 8" cylinders           ...

Light Duty Root Rake c/w Hydraulic Grapple   Light weight with rugged design for compact loaders  28" overall height when closed  7-3/8" centre to centre tine spacing  Points are 1/2" thick, commercial steel  Opens up to 33-1/2"  Comes with 2-1/2"x 8" cylinder           ...

Light Duty Root Rake c/w Electric Grapple   Light weight with rugged design for compact loaders  28" overall height when closed  7 3/8" centre to centre tine spacing  Points are ½" thick, commercial steel  Opens up to 33 ½"  Comes with an 8" stroke 12V heavy duty linear actuator  Comes with electrical wire kit and switch for actuator control  &nb...

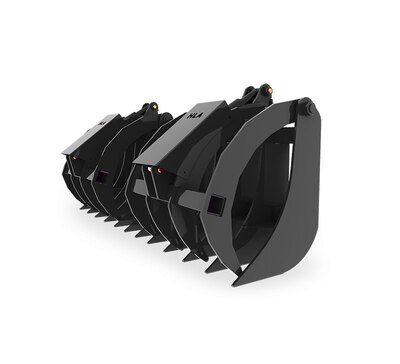

Root Rake c/w Grapple   Two independent grapples for complete clamping on awkward loads  34" overall height when closed  Points are 1/2" thick, 400 Brinell high tensile steel  7-3/8" centre to centre tine spacing  Opens up to 48-1/2"  Comes with 2-1/2" x 8" cylinders           ...

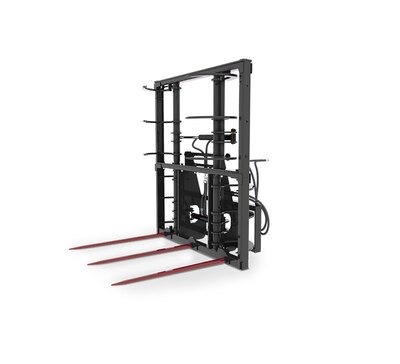

Hydraulic Bale Claw   Ideal for handling stacked large square bales  12 hydraulic claws rotate into stack for secure handling  72" overall height  Frame width 64"  6000 lbs capacity  3 Kverneland tines @ 23" spacing  Approximate weight 1090 lbs           ...

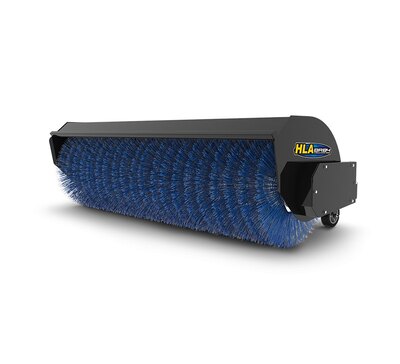

Hydraulic Rotary Broom   Unique lateral and forward float  Gauge wheels  Includes electric selector valve and wire kit (if you do not choose OEM control kit)  Includes hydraulic hoses and flat-faced couplers  26" diameter poly/steel bristle wafers  Hydraulic angle 30° right and left  Direct motor drive on broom  Hydraulic requirements: 12-20 GPM @...

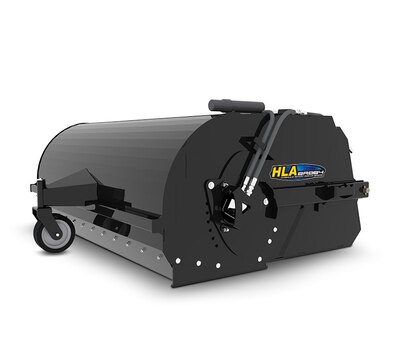

Hydraulic Rotary Pick-up Broom   Ideal for cleaning up parking lots, construction sites, streets, curbs and gutters as well as parks and recreation areas etc.  Includes hydraulic hoses and flat-faced couplers  26" diameter poly/steel bristle wafers  Direct motor drive on broom  Hydraulic requirements: 12-20 GPM @ 1500 - 3000 PSI  Front gauge wheel  Reve...

Heavy Duty Rubber Free Stall Scraper with Back Drag   Heavy duty rubber for longer life  Deeper scraper for more volume and smoother operation  Enclosed frame with splash plate  Allows clean-out of corners  18" high rubber           ...

Heavy Duty Rubber Free Stall Scraper   Heavy duty rubber for longer life  Deeper scraper for more volume and smoother operation  Enclosed frame with splash plate  18" high rubber           ...

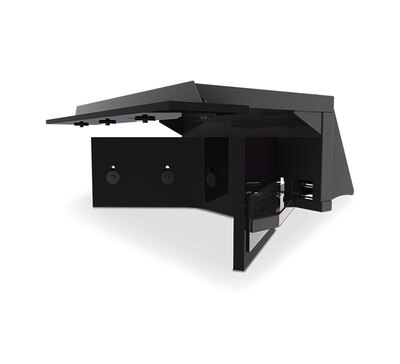

Rubber Feed Alley Scraper   Power angle  Easy on concrete or tiled floor mangers  24" high  Angles 45° either direction           ...

Hydraulic Adjustable Rubber Scraper   Heavy duty rubber for longer life  Hydraulic flow divider for equal movement of wings  24" tall rubber           ...

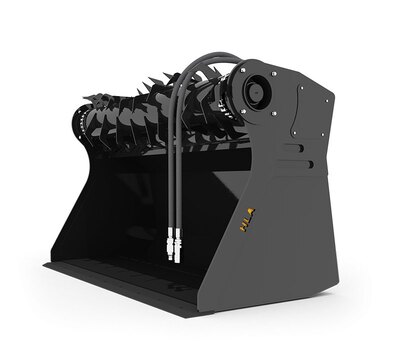

Silage Facer - Bucket Mount   Minimum 20 GPM required  Maximum flow 40 GPM  Facing drum mounted on bucket  400 Brinell high tensile steel teeth on drum  Dual drive motors  Heavy duty roller drive chains  Includes hose kit and flat-faced couplers           ...

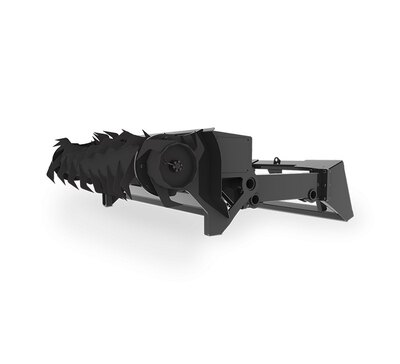

Silage Facer - Frame Mount   Minimum 20 GPM required  Maximum flow 40 GPM  Facing drum mounted on a 4 ft frame  400 Brinell high tensile steel teeth on drum  Includes hose kit and flat-faced couplers  Dual drive motors  Heavy duty roller drive chains           ...

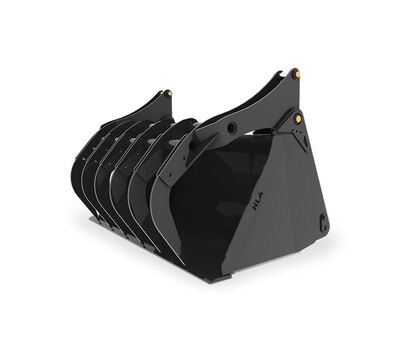

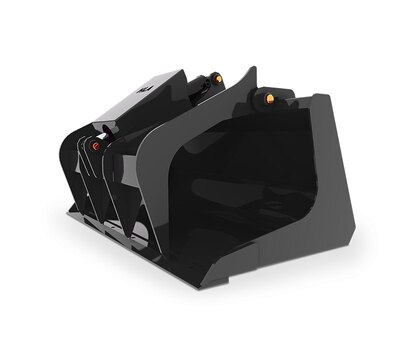

Silage Grapple Bucket   Heavy duty grapple integrated into the bucket design  Strategic pivoting arc design on the grapple for more power and less disturbance of the bunk silo face  3 X 16 cylinders with 1-½" diameter pins  2" diameter pivot pins on grapple  For outside width add 2" to inside width column.  3/4" AR400 bolt on grapple teeth    &nbs...

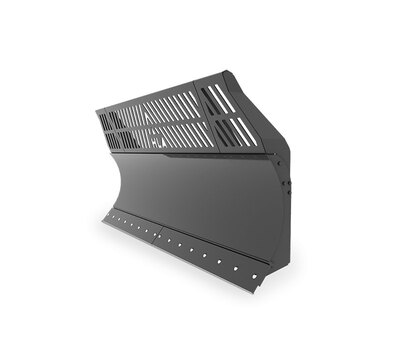

5000 Series Silage Blade - Front Wheel Assist Tractors   For front wheel assist tractors only  Compatible with SB5QDM Series undercarriage blade mounts.  Heavy duty construction with two angle cylinders  Reversible cutting edge  Skid shoes are standard  58" high blade  34" high mouldboard  24" high mesh guard  3 x 16 cylinders with 1-1/2" diam...

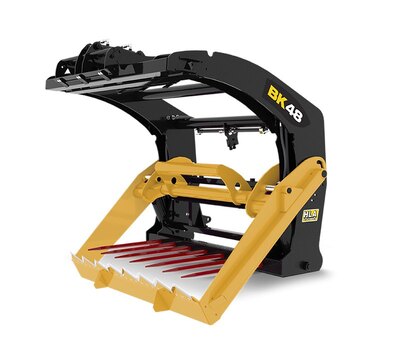

Bale Knife - Loader Mount   Slice bales up to 72" in diameter  Proprietary grabber holds and retains plastic and net wrap, eliminates “tail” dropping into mixer  Cuts down TMR processing time up to 30%  The BK60 and 72 have adjustable bumper to accommodate bales down to 48”  Individual bolt on knives for easy replacement  Minimum hydraulic pressure: 27...

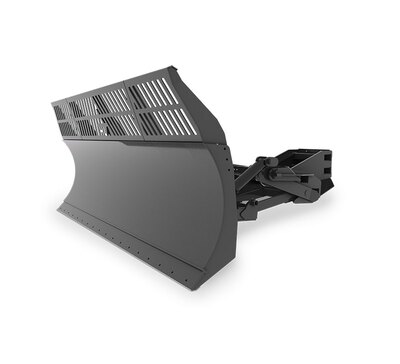

6000 Series Silage Blade    Designed for articulated tractors only  Quick attach design  Heavy duty construction  Dual hydraulic angle cylinders  Dual manual jacks ensures easy hook up and safe storage  Hydraulic radial lift  Hydraulic tilt cylinder  Forward mounted hydraulic connectors for ease of connection  No tool quick attach locking pins...

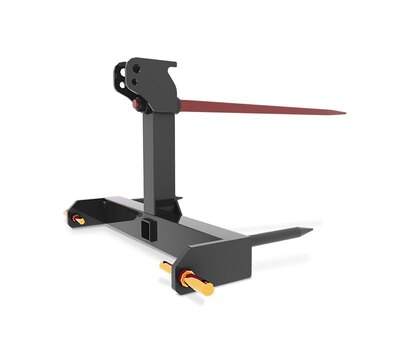

Single Three Point Hitch Spear   Reese receiver / ball hitch (Ball hitch not included)  Fits both CAT I & II  Kverneland tine  2 stabilizer tines  2000 lbs capacity @ 24" L.C.  Available with 39" or 49" tine  Approximate weight: 87 lbs           ...
