Our reversible vibratory plates are available in various sizes. Individual - just the way you need them. You can also get select models with remote control for a high level of operating comfort and sensitive variable control.

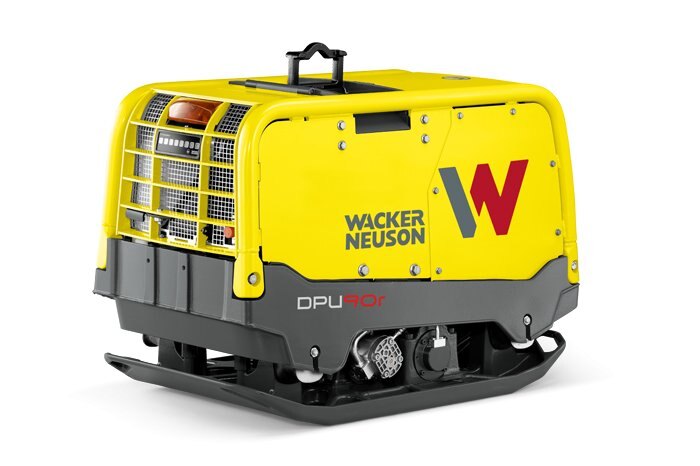

DPU90r - Excellent compaction with remote control

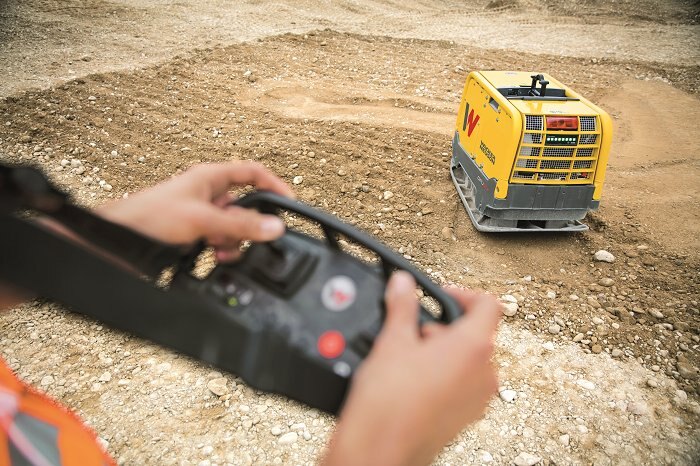

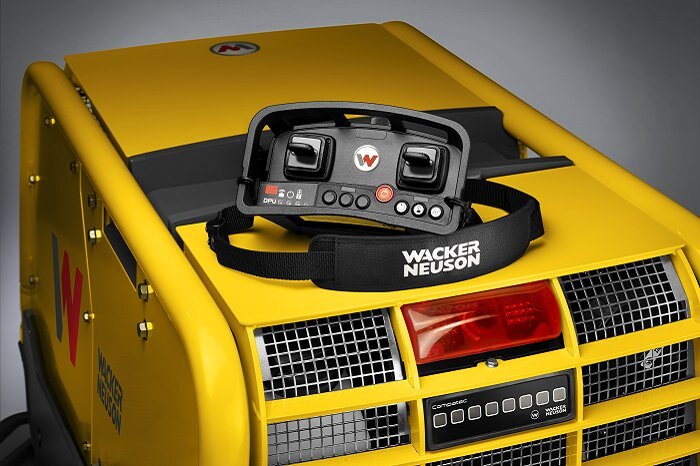

Robust and compact in design, the DPU90r offers high compaction performance with infrared remote control that can be steered continuously in curves with pinpoint accuracy. The innovative steering eccentric weights provide high rotational dynamics and extremely easy steering with no loss of performance. The infrared remote control maintains line-of-sight operation, protecting the operator from vibration, emissions and noise. The DPU90r offers outstanding compaction results for granular and mixed soils for the toughest compact jobs.
Powerful centrifugal force, fast travel speed and high frequency rate in a rugged design.

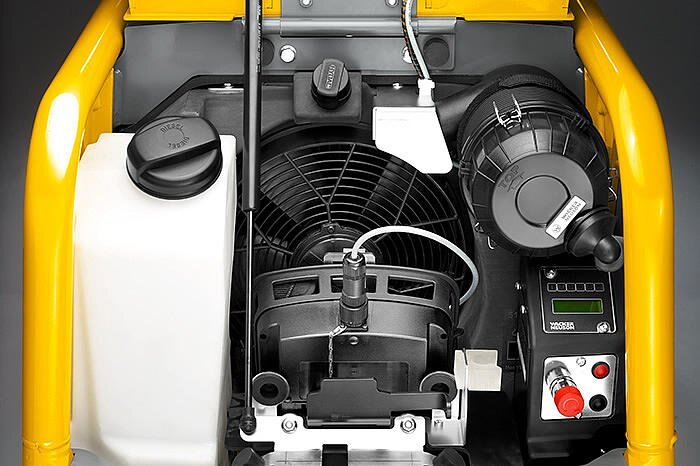

Designed for optimum serviceability, making routine maintenance quick and easy.
Intelligent water-cooled engine designed for ambient temperatures up to 122 °F

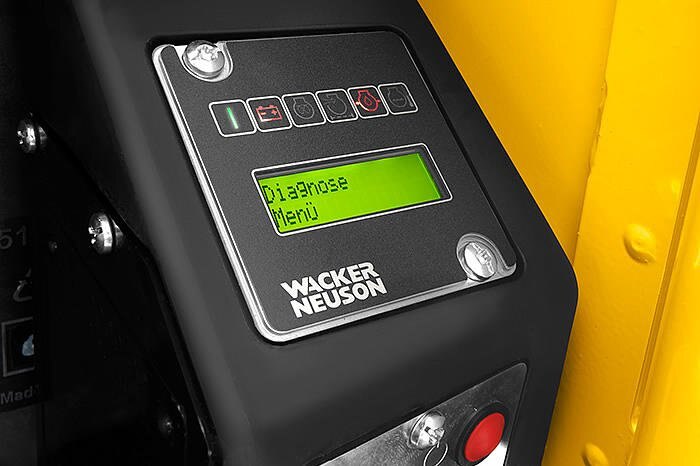

Available with either machine protection sensor that detects machine overload, or Compatec, compaction detection system with overload protection
Advance travel max. (dependent on soil and environmental influences)
28 m/min
Surface capacity max. (dependent on soil and environmental influences)
1,294 m²/h
Engine / Motor
Engine / Motor type
Water-cooled 2-cylinder 4-stroke diesel engine
Engine / Motor manufacturer
Kohler
Engine / Motor
KDW702-3350 US
Displacement
686 cm³
Engine performance max. (DIN ISO 3046 IFN)
11.7 kW
at rpm
3,600 rpm
Engine performance (rated power) (DIN ISO 3046 IFN)
10.7 kW
at rpm
3,350 rpm
Operating performance (DIN ISO 3046 IFN)
9.8 kW
at rpm
3,350 rpm
Fuel consumption
2.7 l/h
Fuel tank capacity
7.2 l
Permissible tilt
25 °
Power transmission
Hydrostatic
Fuel type
Diesel
CO2 (NRSC) *
905 g/kWh
Further model variants are freely configurable:- operating width: 670 mm oder 770 mm- steering: with remote control or center pole (see DPU90)*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.Available options:- overload protection sensor incl. shutdown or warning option at machine overload- Compatec: compaction degree feedback control incl. overload protection sensor
Imperial
Operating data
Operating weight
1,596 lb
Centrifugal force
20,233 lbf
Base plate width
30 in
Base plate length
47 in
Base plate thickness
0.6 in
Height (ground clearance)
33 in
Operating width
30 in
Frequency
63 Hz
Advance travel max. (dependent on soil and environmental influences)
91.8 ft/min
Surface capacity max. (dependent on soil and environmental influences)
13,929 ft²/h
Engine / Motor
Engine / Motor type
Water-cooled 2-cylinder 4-stroke diesel engine
Engine / Motor manufacturer
Kohler
Engine / Motor
KDW702-3350 US
Displacement
41.8 in³
Engine performance max. (DIN ISO 3046 IFN)
15.7 hp
at rpm
3,600 rpm
Engine performance (rated power) (DIN ISO 3046 IFN)
10.7 kW
at rpm
3,350 rpm
Operating performance (DIN ISO 3046 IFN)
13.1 hp
at rpm
3,350 rpm
Fuel consumption
0.7 US gal/h
Fuel tank capacity
1.87 US gal
Permissible tilt
25 °
Power transmission
Hydrostatic
Fuel type
Diesel
CO2 (NRSC) *
905 g/kW-hr
Further model variants are freely configurable:- operating width: 670 mm oder 770 mm- steering: with remote control or center pole (see DPU90)*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.Available options:- overload protection sensor incl. shutdown or warning option at machine overload- Compatec: compaction degree feedback control incl. overload protection sensor
