Weidemann 5080T

Stock #  N2264
Overview

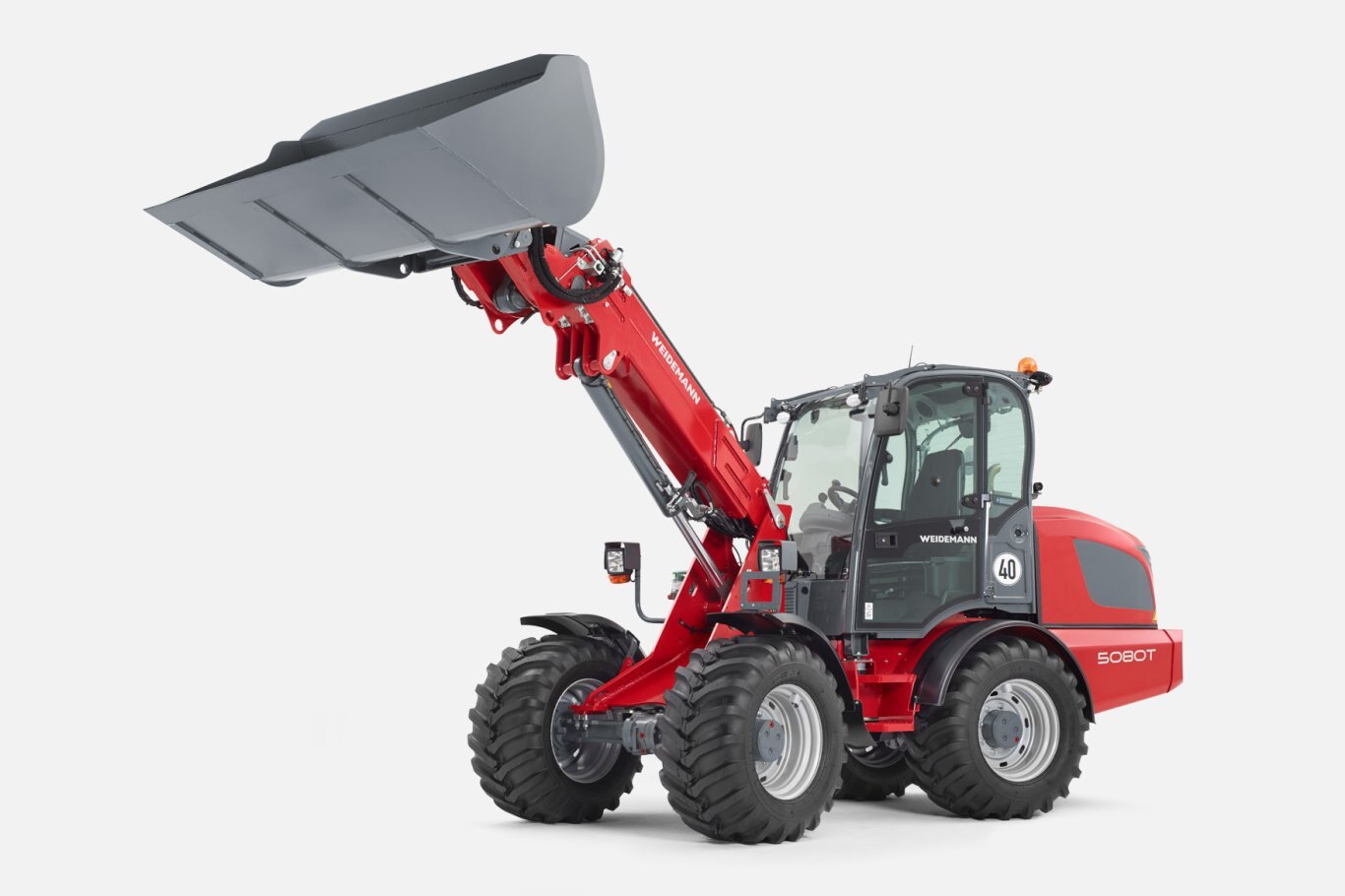

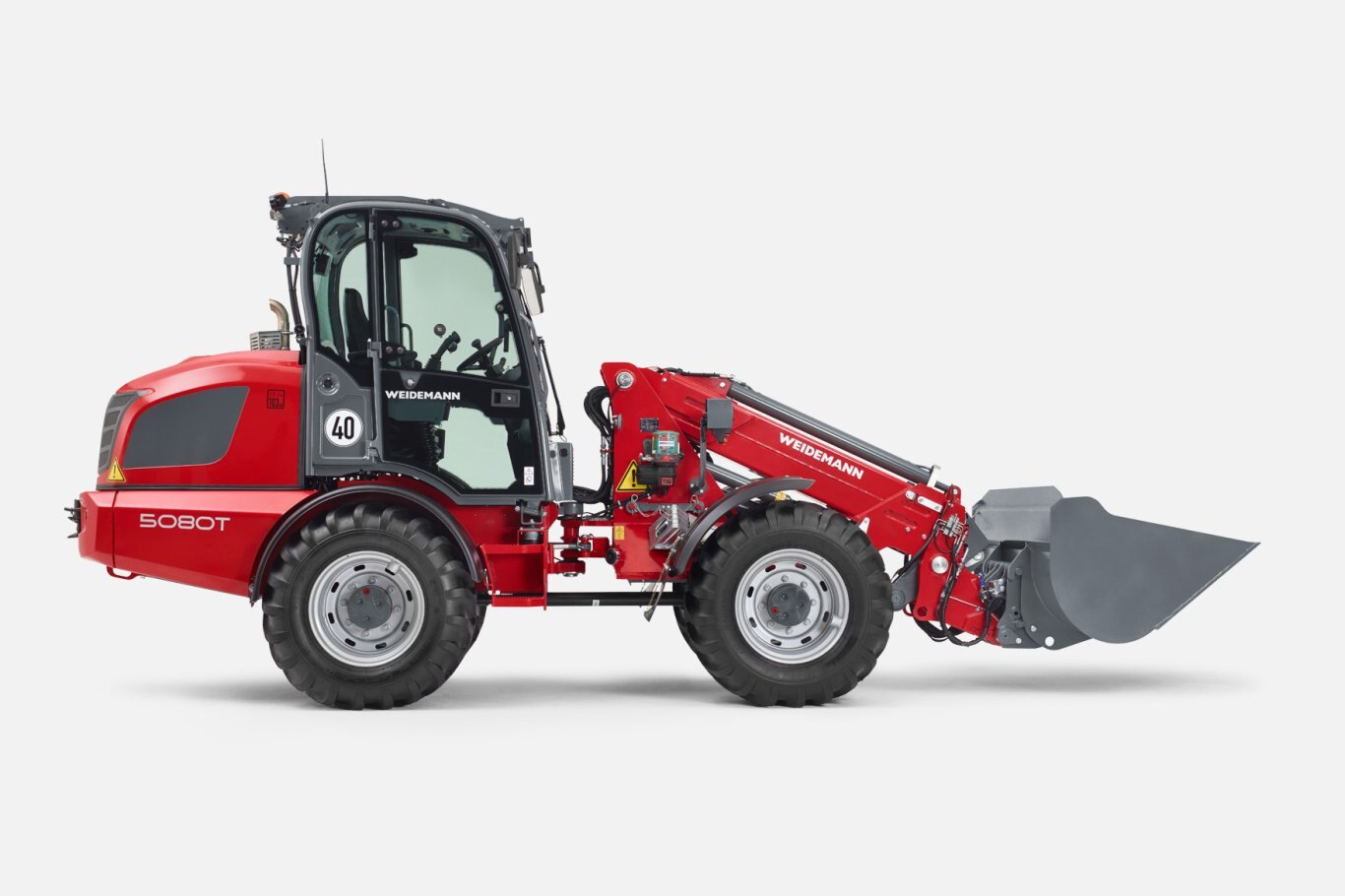

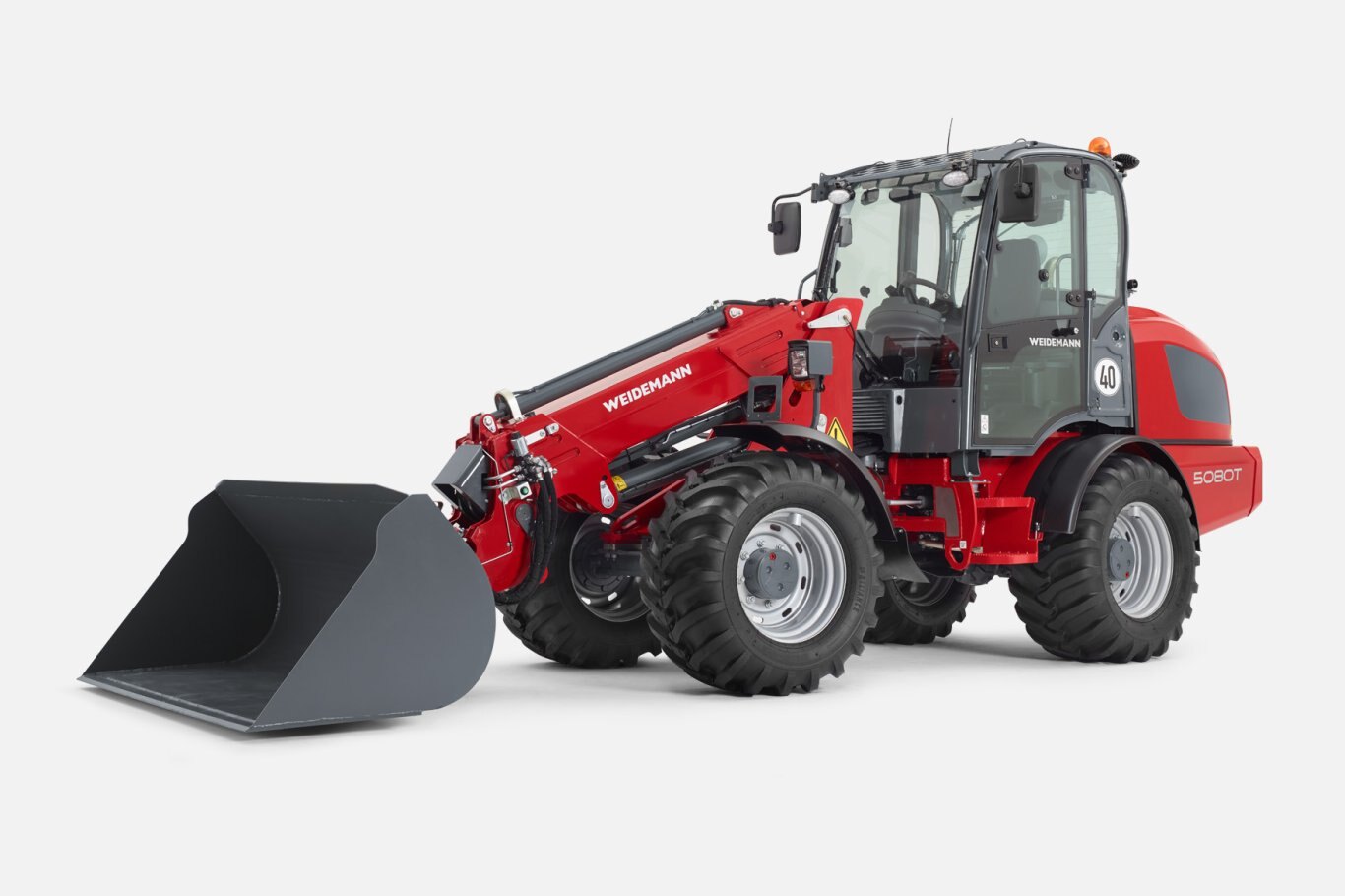

5080T Telescopic wheel loaders - Powerful and fast

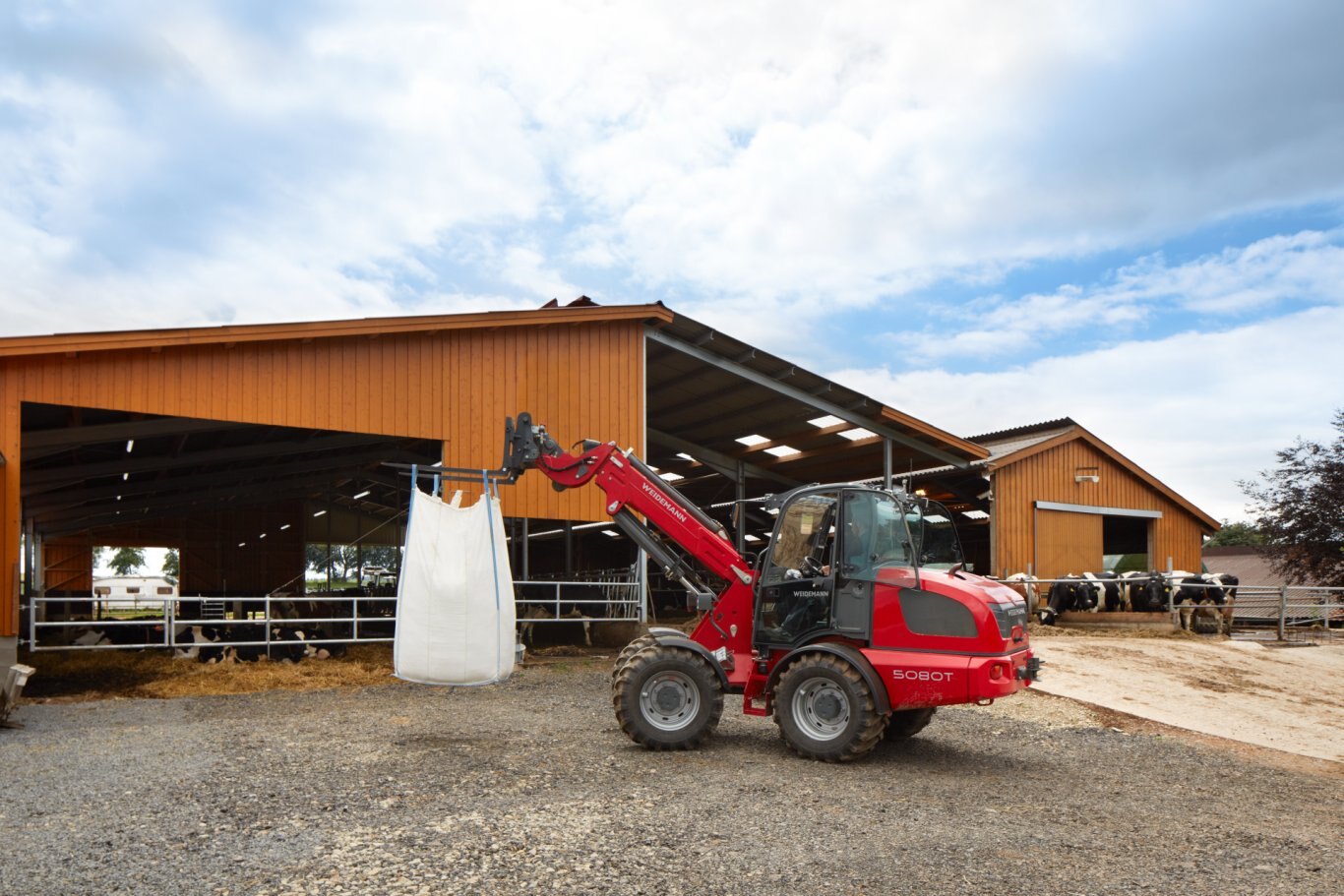

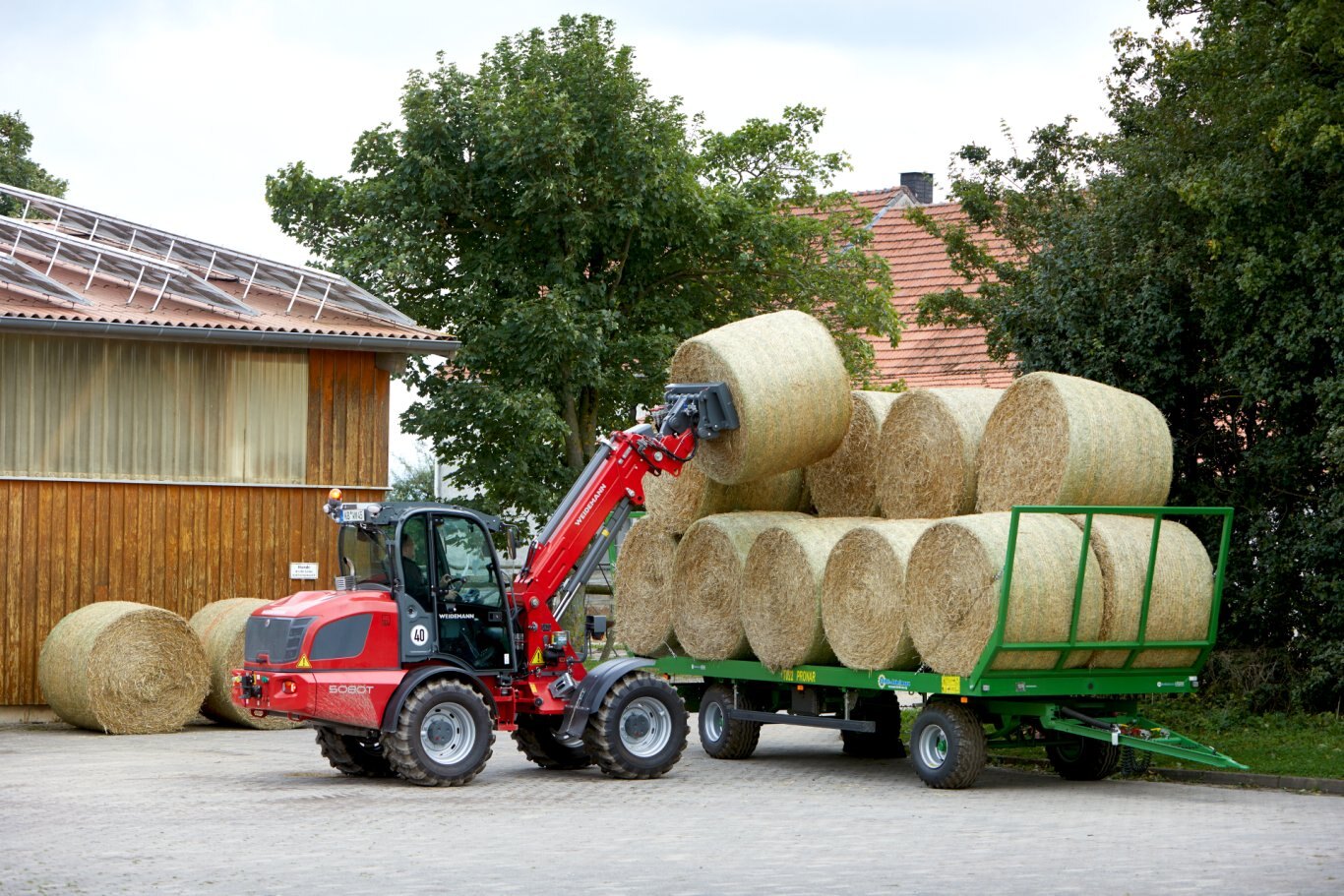

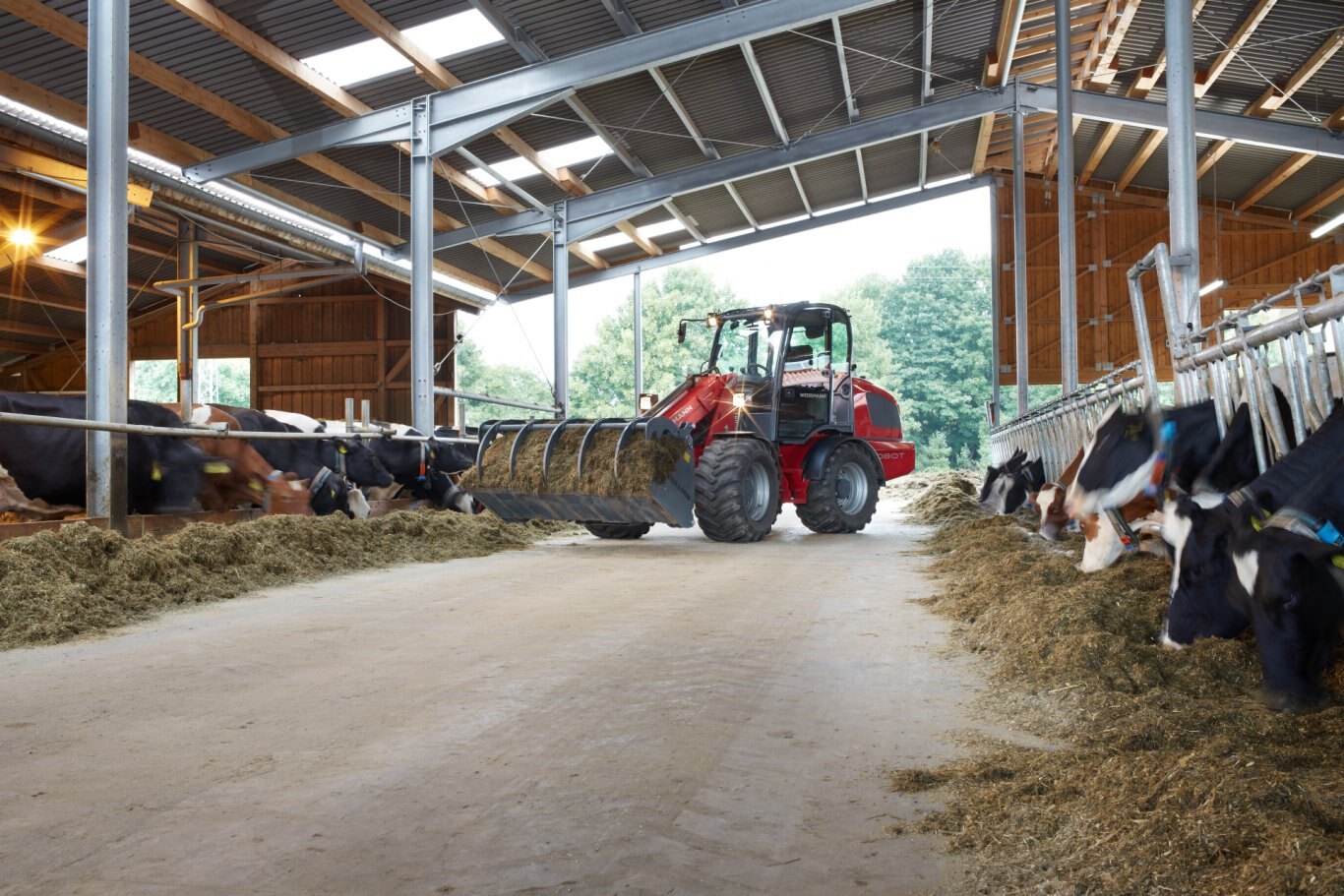

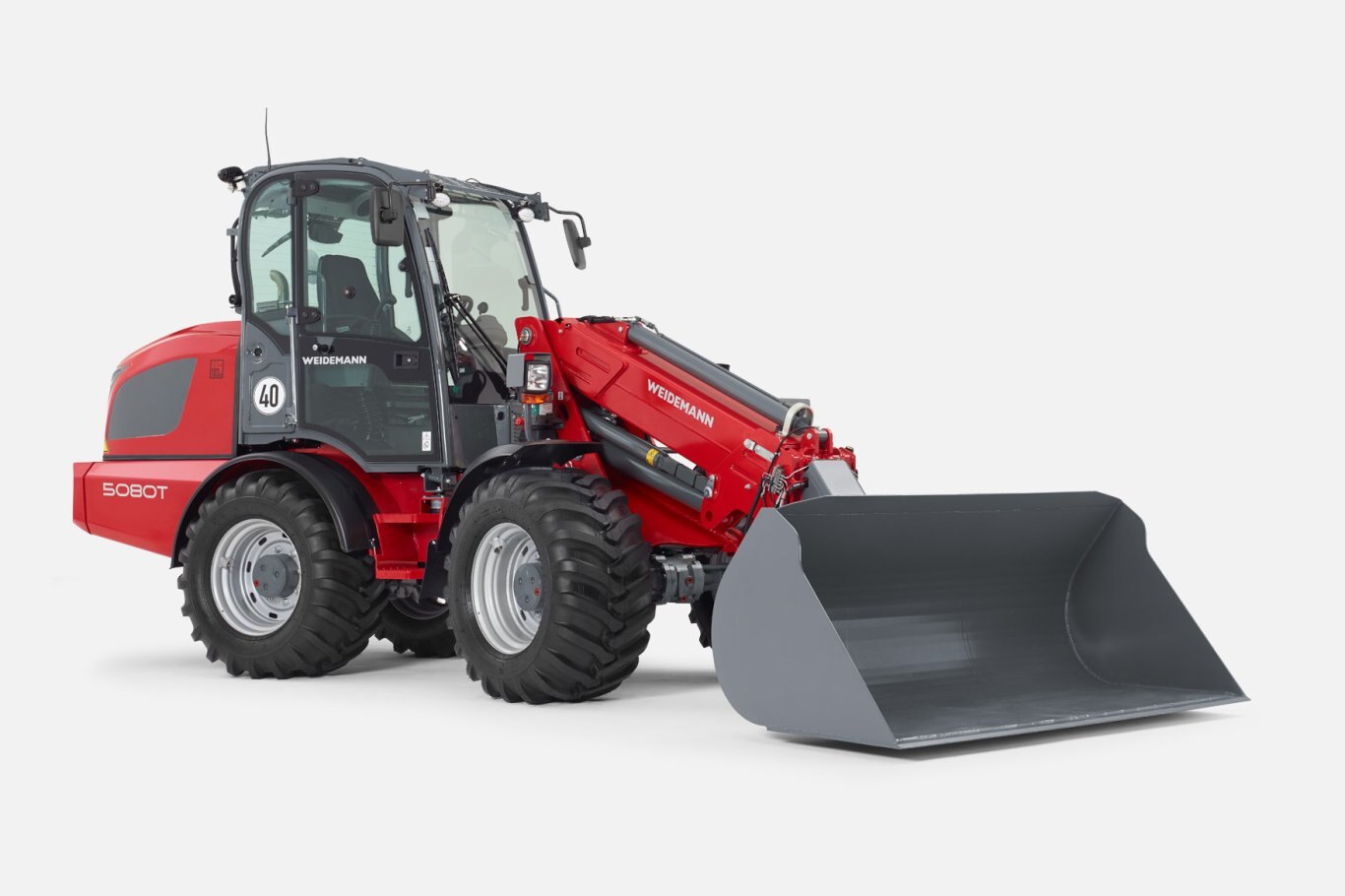

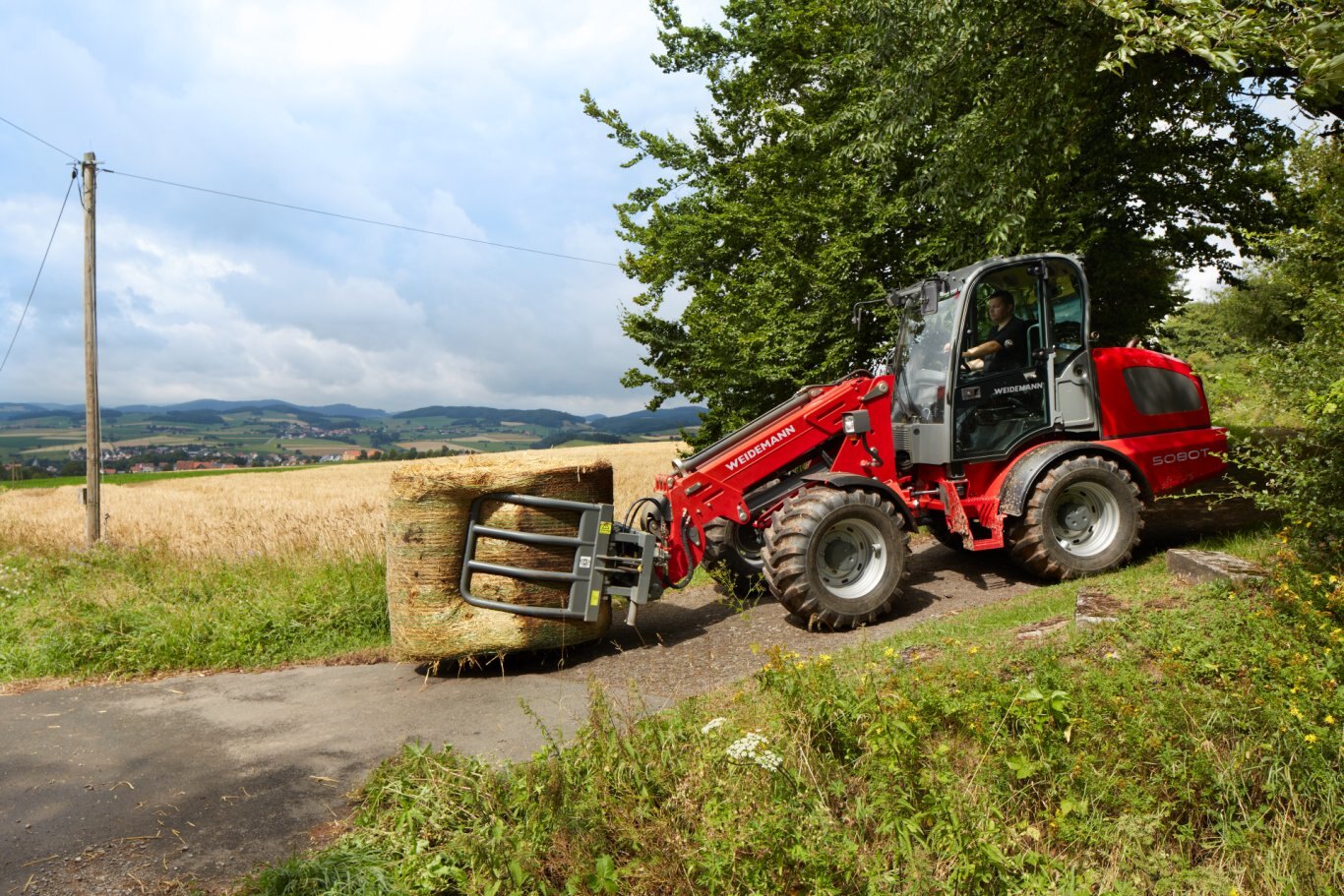

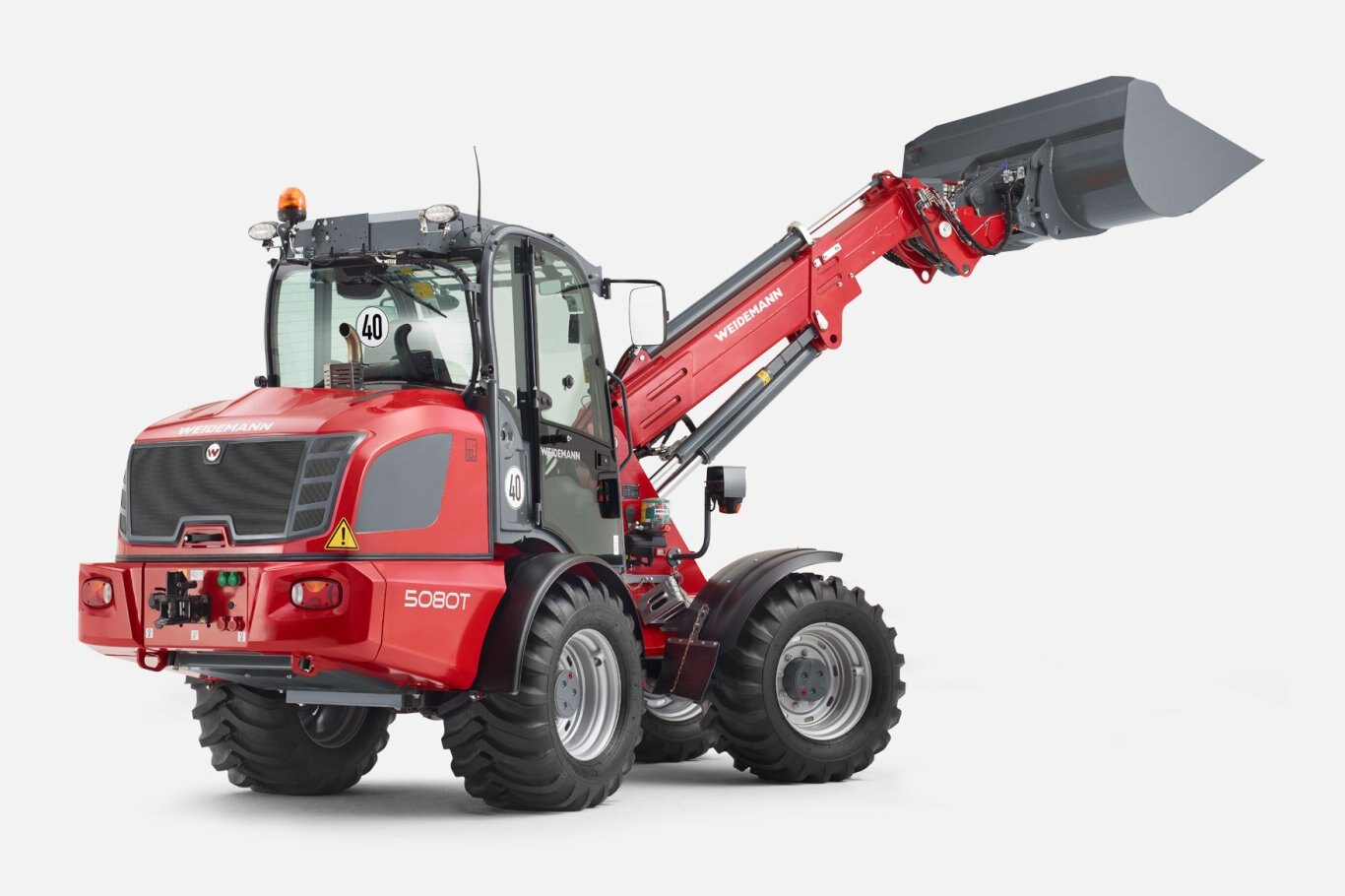

The Weidemann tele wheel loader 5080T in the 7 t / 15,432 lb class has a very powerful motorization with exhaust emission standard V, planetary axles for high shearing forces and a roomy comfort cab with the best work ergonomics. The telescopic arm is built sturdy and stable; parallel guidance is done with hydraulics. High loading heights can be ideally managed with it. On the tele wheel loader 5080T, speed has been increased to 40 km/h / 24.85 mph so that the loader can get from point A to point B quickly. With this option, the machine also gets a loading arm damping that can be electrically activated. This prevents the machine from swaying at high driving speeds and provides extra comfort for the operator. This makes the tele wheel loader 5080T ideally suitable for high material handling and working at different application sites.



Specifications
Model
5080T
Category Name
Equipment
Year
2024
Sale Type
New
Manufacturer
Weidemann
highlights

Weidemann 5080THigh hydraulic performance

  • A Weidemann machine has sufficient hydraulic output. It is therefore suitable for operating many different attachments.
  • The flexible combination of machine and a variety of hydraulically operated attachments covers numerous work tasks.
  • The advantage: Machines with high hydraulic output save money, as it is not absolutely necessary to change to a larger machine.

Weidemann 5080TFlow Sharing

  • Flow Sharing enables the operation of several functions under constant hydraulic pressure. This enables simultaneous work movements, such as lifting/lowering the attachment and rolling in/out in parallel.
    The operator can work faster, more sensitively and more comfortably with the machine, which in turn increases productivity.

Weidemann 5080T30/40 km/h / 18.64/24.85 mph Driving speed

  • With the appropriate motorization, the machine can optionally reach a speed of 30 or 40 km/h / 18.64/24.85 mph. This allows the machine to be moved from A to B quicker, which saves time, thereby increasing productivity.

Weidemann 5080TErgonomic Joystick

  • The joystick can be held securely and comfortably. The control is, both, direct and sensitive. Thus the operator always has the machine and the most important functions under control.
  • In addition to standard functions such as selecting the direction of travel and the speed level, many other functions such as the differential lock, the 3rd and 4th control circuit, High-Flow and all electric functions can be operated via the joystick. This enables comfortable one-handed operation of attachments.
  • Concentrating the most important function on the joystick ensures comfortable working even over longer periods of time. This also increases overall efficiency when working with the machine.

Weidemann 5080TJog Dial Control Element

  • The Jog Dial control element enables various machine parameters and functions to be operated and read out via the display: For example, setting the loading swing arm oscillation damping, reading out the operating hours and machine information or tracking service intervals. The jog dial is positioned within easy reach of the operator's working area.
  • If necessary, the flow rate of the hydraulic oil can be manually set using the jog dial control element. This is advantageous if the machine drives a hydraulic attachment, which does not require the full hydraulic performance of the machine. The operator can work with the machine and attachment very sensitively and in a resource-conserving way.
  • When servicing is required, the jog dial can be used to quickly display the important error messages and necessary machine information. This speeds up diagnosis and reduces machine downtime.

Weidemann 5080TErgonomic cockpit

  • Plenty of legroom, clearly arranged controls, comfortable operator’s seat, and optimal view of the attachment. A work area that motivates the operator and fully supports them.
  • Well-tuned equipment increases the comfort for the operator. He can also work optimally with the machine for longer periods of time.



standard engine data
Engine manufacturer Perkins
Motor type 904J-E36TA
Cylinder 4
Drive output 100 kW
Drive output 134.1 HP
At max. rpm 2,200 rpm
Cylinder capacity 220.97 in³
Type of coolant Water
Exhaust standard level V
Exhaust aftertreatment DOC/DPF/SCR



electrical system
Operating voltage 12 V
Battery 135 Ah
Alternator 85 A



weights
Operating weight 15,873 lb
Tipping load with bucket – machine straight, loading frame horizontal 9,623 lb
Tipping load with bucket – machine pivoted, loading frame horizontal 8,067 lb
Tipping load with bucket – machine straight (extended) 5,646 lb
Tipping load with bucket – machine pivoted (extended) 4,702 lb
Tipping load with pallet fork – machine straight, loading frame horizontal 9,046 lb
Tipping load with pallet fork – machine pivoted, loading frame horizontal 7,602 lb
Tipping load with pallet fork – machine straight (extended) 5,644 lb
Tipping load with pallet fork – machine pivoted (extended) 4,691 lb



driver's cab
Driver's cab Cab



filling levels
Tank capacity for fuel 27.74 US gal
Tank capacity for hydraulic oil 25.10 US gal
Tank capacity for urea solution 5.02 US gal



drive system
Type of drive Hydrostatic
Drive unit universal joint shaft
Speed levels 2
Axle PA 1422/2
Travel speed Standard 0-12,43 mph
Travel speed Option 1 0-18,64 mph
Travel speed Option 2 0-24,85 mph
Operating brake Disc brake (combined with parking brake)
Parking brake Service and parking brake in the drive train acts on all 4 wheels
Differential lock 100 % front axle + rear axle



hydraulic system
Drive hydraulics working pressure (max.) 6599 psi
Work hydraulics discharge volume (max.) 26,42 (30,38-39,63) gpm
Work hydraulics working pressure (max.) 3408 psi



kinematics
Lifting cylinder 1
Tipping cylinder 1
Quick change system hydraulic



steering
Steering type Hydraulic activated articulated pendulum steering
Steering cylinder 2
Oscillating angle ± 12 degree



noise characteristic values
Average sound power level LwA (cabin) 101.4 dB(A)
Guaranteed sound power level LwA (cabin) 103 dB(A)
Specified sound pressure level LpA (cabin) 74 dB(A)



other information
Free text

FSD = operator's canopy

DPF = diesel particulate filter

DOC = diesel oxidation catalyst

SCR = selective catalytic reduction

Tipping load calculation pursuant to ISO 14397



dimensions
Weidemann 5080T
    Telescopic arm (Z-kinematics) / axle PA1400
- Standard tires 550/45-22.5 AS ET0
A Total length 244.1 in
B Total length without bucket 205.9 in
C Bucket pivot point (to center of axle) 49.2 in
D Wheel base 86.2 in
E Rear overhang 62.2 in
F Height with cab 105.9 in
H Seat height 63.8 in
J Total working height 231.9 in
K Bucket pivot point (max. lift height) 200.4 in
L Load-over height telescopic arm extended 185.8 in
M Dumping height telescopic arm extended 161.0 in
N Reach (at M) 31.5 in
O Digging depth 2.4 in
P Total width 77.6 in
Q Track width 56.0 in
S Ground clearance 15.0 in
T Maximum radius 176.0 in
U Radius on the outer edge 154.7 in
V Inner radius 72.8 in
W Articulation angle 42 °
X Rollback angle at max. lift height 37 °
Y Dumping angle 36 °
Z Rollback angle on ground 36 °





editions

5080T edition

  • 2-door cabin + heater and fan
  • Radio ready (antenna + speakers)
  • Air-conditioning system
  • Fabric seat, airspring, heated
  • Lighting according to Road Traffic Regulations
  • 4 work lights (2 front + 2 rear)
  • Manual throttle
  • Hand inching
  • Speed increase
  • Lifting arm damping
  • 7-pole plug receptacle in rear
  • 3rd control circuit proportional
  • Unpressurized return line, front
  • Load-sensing hydraulic
  • 100% differential lock
  • All-wheel drive
  • EquipCare available
  • Tires Alliance 550/45-22.5 AS

Options

  • Rear hydraulic connection
  • Faster Block 3rd control circuit US
  • 14 pin socket in front
  • Rear hydraulic connection dual-effect via switch valve
  • Two hydraulic connections in rear (63 l/min), dual-acting
  • Special paintwork RAL single colour - in place of WM red
  • Special paintwork RAL multi-colour
