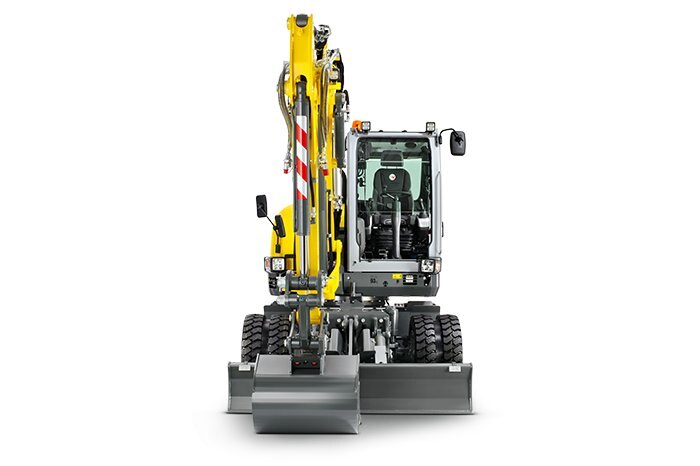

Wacker Neuson Wheeled Excavators EW65

Overview

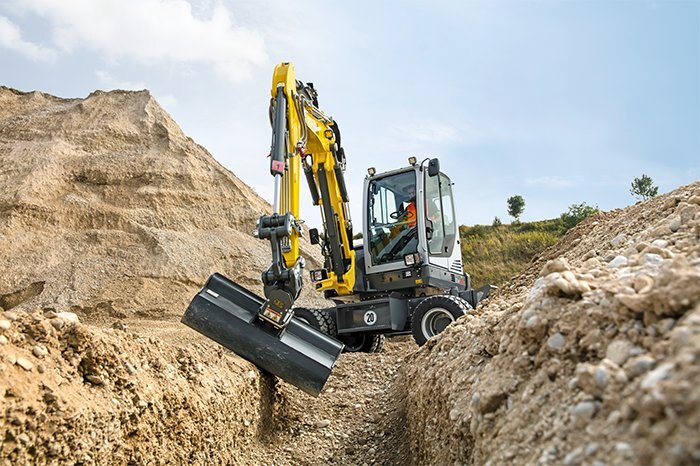

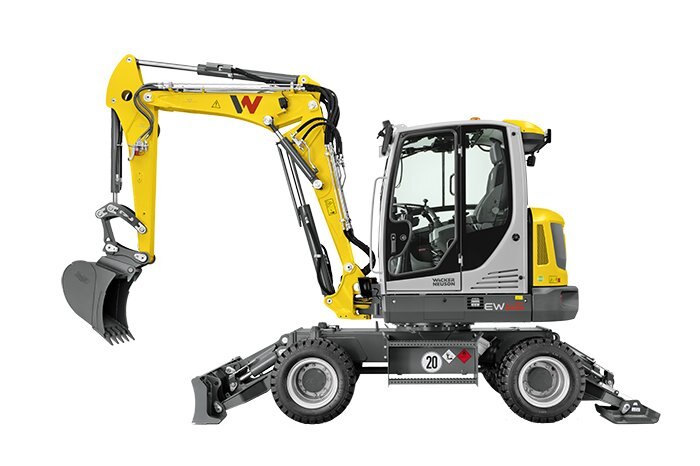

EW65 - Wheeled excavator offers power and mobility

The EW65 offers impressive power and speed with simple operation. Tier 4 Final Perkins engine offers excellent power and low fuel consumption. The unit’s compact size, speed up to 18.6 mph/30 kph, and mobility make it the ideal machine for a variety of applications that require the excavator to move around the job site or to and from the job site in municipal areas. This excavator saves time and money because it does not need to be transported on a truck. Large ergonomically cab design provides excellent view of the attachment and entire job site.
  • Four-wheel drive and dual tires offer smooth, comfortable ride, ensure stability and allow the unit to maneuver on rough terrain
  • Articulated triple boom offers increased digging area through an extended dig range, allowing the operator to reach farther, dig closer to the blade and reach under the machine when needed
  • The three-pin bucket linkage system provides best-in-class breakout force and optimizes the bucket’s angle of rotation to keep the load secure in the bucket before dumping
  • Proportional control auxiliary hydraulics are operated by an electric valve and switch on the joystick for a smooth work with attachments
  • Independently operated front stabilizer and rear dozer blade provide very stable operation. Flat bottom dozer blade does not leave marks
Specifications
Model
EW65
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Wheeled Excavators EW65 Economical and powerful

  • Powerful drive system
  • ECO operating mode
  • Up to 20% less fuel consumption

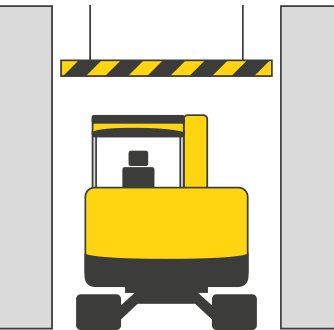

Wacker Neuson Wheeled Excavators EW65 Reduced dimensions
  • Significantly lower height and width than comparable competition models
  • Easily master tight construction sites and low passages
  • Higher level of stability due to the low center of gravity
  • Easy to transport

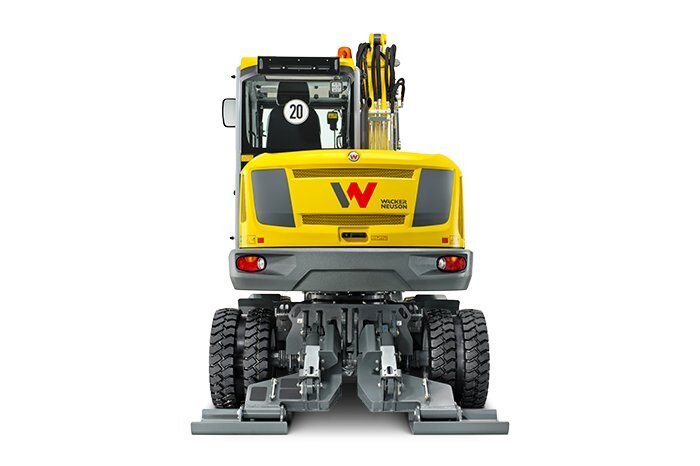

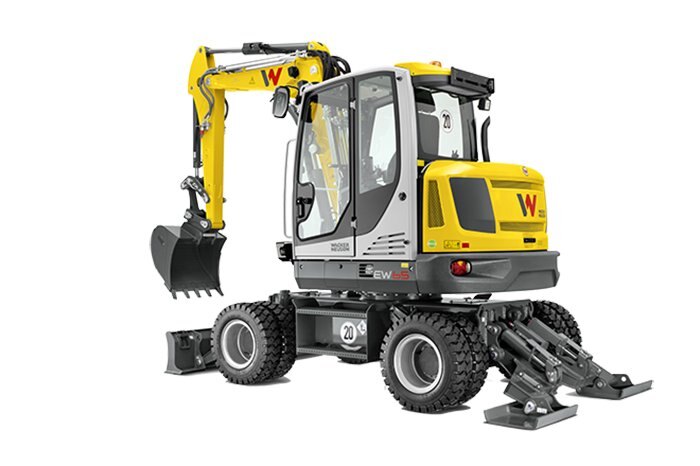

Wacker Neuson Wheeled Excavators EW65 Different stabilizer versions
  • More stability due to the different stabilizer versions
  • Stabilizers optionally in front or rear

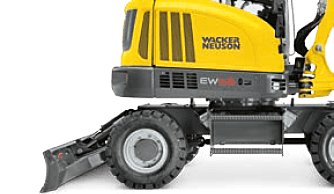

  • Dozer blade
  • Counterweights

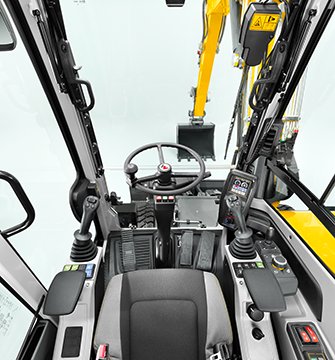

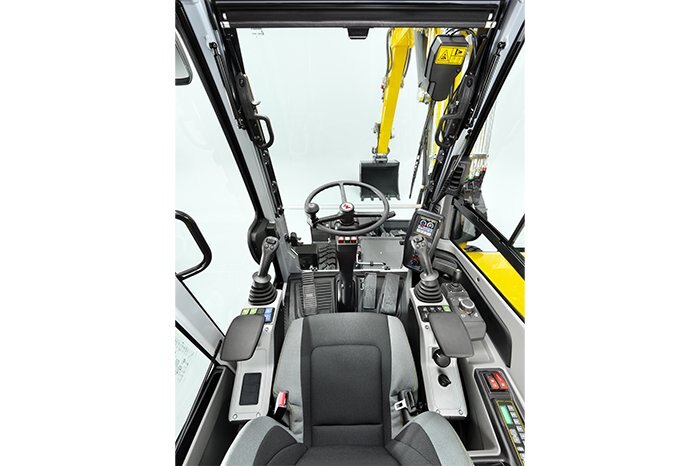

Wacker Neuson Wheeled Excavators EW65 Cabin - sight and operating comfort
  • Innovative solution for the optimal view –boom is offset to the right for an unobstructed view
  • Operator comfort: spacious cabin, air cushioned seat and automatic air-conditioning system
  • Innovative front windshield system: two-part windshield can be slid up and moved - rain roof position
  • LED headlights for optimal illumination
  • Rear camera for more safety when in reverse operation

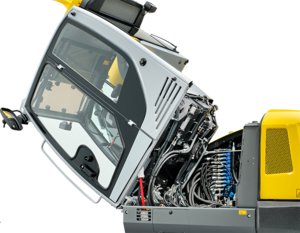

Wacker Neuson Wheeled Excavators EW65 Tiltable cabin:
  • for excellent service access

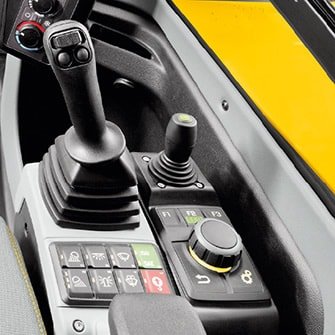

Wacker Neuson Wheeled Excavators EW65 Jog dial system
  • Technology from the automotive sector
  • For the direct control of central functions
  • Intutive to operate
technical specifications

EW65 Technical specifications

Metric

Operating data
Shipping weight min. 6,706 kg
Operating weight  6,990 - 8,470 kg
Biting force max.  30.8 kN
Breakout force max.  46 kN

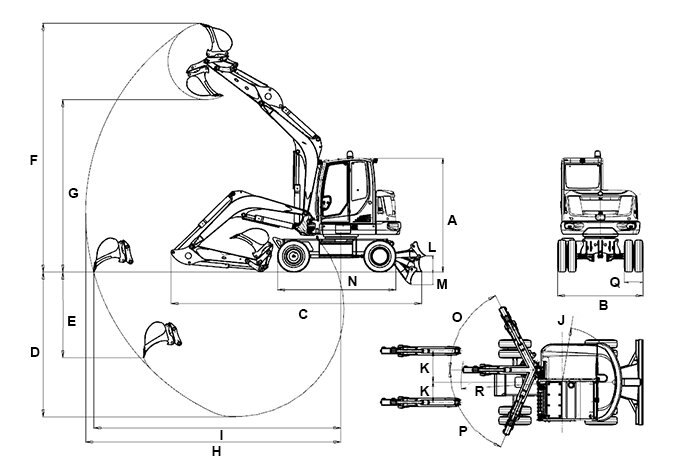

Digging depth max.  3,884 mm
Dump height max.  5,218 mm
Digging radius max.  6,888 mm
Superstructure slewing speed  9 1/min

Engine / Motor
Engine / Motor manufacturer  Perkins diesel engine
Engine / Motor type  404F-E22T
Engine / Motor  Water-cooled 4-cylinder turbo in-line engine
Displacement  2,216 cm³
RPM / speed  2,800 rpm
Engine performance according to ISO 50 kW
Battery  88 Ah
Fuel tank capacity  85 l

Hydraulic system
Duty pump  Variable displacement pump and double hydraulic gear pump
Max. flow rate  144 + 85.5 l/min
Operating pressure for working hydraulics 240 bar
Operating pressure for driving hydraulics 450 bar
Hydraulic oil tank  92 l

Undercarriage
Tires  7.5-15 14 PR Twin Tires
Track width  457 mm
Ground clearance  237 mm
Travel speed max. 30 km/h

Dozer Blade
Width  2,085 mm
Height  429 mm
Stroke - Above ground 395 mm
Stroke - Below ground 301 mm

Sound level
Sound level (LwA) according to 2000/14/EC 97 dB(A)

Imperial

Operating data
Shipping weight min. 14,784.05 lb
Operating weight  15,410.15 - 18,672.96 lb
Biting force max.  6,924 lbf
Breakout force max.  10,341.21 lbf
Digging depth max.  153.03 in
Dump height max.  205.59 in
Digging radius max.  271.39 in
Superstructure slewing speed  9 rev/min

Engine / Motor
Engine / Motor manufacturer  Perkins diesel engine
Engine / Motor type  404F-E22T
Engine / Motor  Water-cooled 4-cylinder turbo in-line engine
Displacement  135.2 in³
RPM / speed  2,800 rpm
Engine performance according to ISO 67 hp
Battery  88 CCA
Fuel tank capacity  22.5 US gal

Hydraulic system
Duty pump  Variable displacement pump and double hydraulic gear pump
Max. flow rate  38.04 + 22.59 US gpm
Operating pressure for working hydraulics 3,481 psi
Operating pressure for driving hydraulics 6,526.8 psi
Hydraulic oil tank  24.31 US gal

Undercarriage
Tires  7.5-15 14 PR Twin Tires
Track width  18.01 in
Ground clearance  9.3 in
Travel speed max. 18.6 mph

Dozer Blade
Width  82.1 in
Height  16.9 in
Stroke - Above ground 15.6 in
Stroke - Below ground 11.9 in

Sound level
Sound level (LwA) according to 2000/14/EC 97 dB(A)
