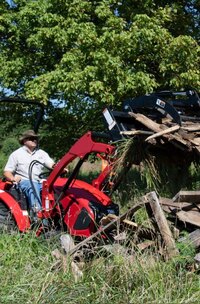

TYM Tractors TX22H Front-End Loader

Specifications

Model	TX22H	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	71.3 in. / 1810 mm	Lift Capacity	617 lb / 280 kgf	Bucket Capacity	5.7 cu. ft / 0.16 cu. m
Price	Contact for price CAD

Description

TX22H
Front-End Loader
Enhance the functionality of your TYM sub-compact tractor with the TX22H front-end loader. With impressive lift capacity and height, this TYM front-end loader can help you lift, move and handle material more effectively.

Engineered to deliver impressive performance with its enhanced features, the TX22H front-end loader takes advantage of the power and capabilities of its compatible sub-compact tractor. With impressive dig depth and maximum rollback angle, you can handle materials more securely. Perform intense tasks without losing stability with TX22H’s impressive lift capacity and breakout force. Built with self-levelling features installed, the TX22H front-end loader can help you focus on the work and improve your productivity.

CAPACITIES & REACH

Lift_height

71.3 in. (1810 mm)

Digging_depth

4.1 in. (105 mm)

Lift_capacity

617 lb (280 kgf)

Self_leveling

Bucket_capacity

5.7 cu. ft (0.16 cu. m)

Max._dump_angle

37°

Max._rollback_angle

23°

Reach_with_bucket_on_ground

49.5 in. (1258 mm)

Clearance_with_bucket_dumped

53.9 in. (1369 mm)

Reach_at_maximum_lift_height

26.8 in. (680 mm)

Max._lift_height_under_level_bucket

64.8 in. (1646 mm)

Bucket_rollback_force_at_ground_line

1036 lb (470 kgf)

Relief_valve_setting_(Loader_control_valve)

1849 psi (130 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

1235 lb (560 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

1.6x1.0 in. (40x25 mm)

Bucket_cylinder

1.6x1.0 in. (40x25 mm)

Height_of_Attachment

18.4 in. (467 mm)

Weight_of_bucket_(3)

114.6 lb (52 kg)

Loader_total_weight_(1+2+3)

418.9 lb (190 kg)

Weight_of_mounting_frame_(2)

101.4 lb (46 kg)

Overall_height_in_carry_position

42 in. (1068 mm)

Attachment_used_for_specification

48 in. (1220 mm)

Length_of_Attachment_(to_pivot_point)

20.7 in. (525 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

202.8 lb (92 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

19.1 in. (484 mm)

CYCLE TIMES

Boom_raising_time

3.7 sec

Boom_lowering_time

2.2 sec

Bucket_dumping_time

3.6 sec

Bucket_rollback_time

2.2 sec
