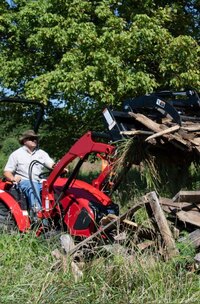

TYM Tractors BL100S Front-End Loader

Specifications

Model	BL100S	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	88.3 in. / 2243 mm	Lift Capacity	1314 lb / 596 kgf	Bucket Capacity	5.3 cu. ft / 0.15 cu. m
Price	Contact for price CAD

Description

BL100S
Front-End Loader
Enhance the functionality of your TYM sub-compact tractor with the BL100S front-end loader. With impressive lift capacity and height, this TYM front-end loader can help you lift, move and handle material more effectively.

Engineered to deliver impressive performance with its enhanced features, the BL100S front-end loader takes advantage of the power and capabilities of its compatible sub-compact tractor. With impressive dig depth and maximum rollback angle, you can handle materials more securely. Perform intense tasks without losing stability with BL100S’s impressive lift capacity and breakout force. Built with self-leveling features, the BL100S front-end loader can help you focus on the work and improve your productivity.

CAPACITIES & REACH

Lift_height

88.3 in. (2243 mm)

Digging_depth

4.2 in. (106 mm)

Lift_capacity

1314 lb (596 kgf)

Self_leveling

Bucket_capacity

5.3 cu. ft (0.15 cu. m)

Max._dump_angle

43°

Max._rollback_angle

38°

Reach_with_bucket_on_ground

58.3 in. (1481 mm)

Clearance_with_bucket_dumped

68.9 in. (1751 mm)

Reach_at_maximum_lift_height

15.5 in. (393 mm)

Max._lift_height_under_level_bucket

83.1 in. (2112 mm)

Bucket_rollback_force_at_ground_line

1541 lb (699 kgf)

Relief_valve_setting_(Loader_control_valve)

2276 psi (160 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

1960 lb (889 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

1.8x1.2 in. (45x30 mm)

Bucket_cylinder

2.0X1.2 in. (50X30 mm)

Height_of_Attachment

19.1 in. (484 mm)

Weight_of_bucket_(3)

146 lb (66 kg)

Loader_total_weight_(1+2+3)

587 lb (266 kg)

Weight_of_mounting_frame_(2)

136 lb (62 kg)

Overall_height_in_carry_position

45.7 in. (1160 mm)

Attachment_used_for_specification

52 in. (1320 mm)

Length_of_Attachment_(to_pivot_point)

23.1 in. (586 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

306 lb (139 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

18.2 in. (462 mm)

CYCLE TIMES

Boom_raising_time

3.8 sec

Boom_lowering_time

2.1 sec

Bucket_dumping_time

4.2 sec

Bucket_rollback_time

2.7 sec
