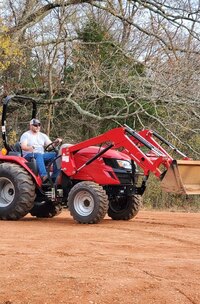

TYM Tractors BL150C Front-End Loader

Specifications

Model	BL150C	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	104.9 in. / 2665 mm	Lift Capacity	2200 lb / 998 kgf	Bucket Capacity	8.1 cu. ft / 0.23 cu. m
Price	Contact for price CAD

Description

BL150C
Front-End Loader
The BL150C front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the BL150C front-end loader can help you get your tasks done more efficiently.

Built for durable performance and excellent dig capabilities, the BL150C front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-leveling feature in place and impressive boom raising and lowering times, you can focus on the task at hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the BL150C front-end loader is ideal for more heavy-duty applications.

CAPACITIES & REACH

Lift_height

104.9 in. (2665 mm)

Digging_depth

4.7 in. (119 mm)

Lift_capacity

2200 lb (998 kgf)

Self_leveling

Bucket_capacity

8.1 cu. ft (0.23 cu. m)

Max._dump_angle

55°

Max._rollback_angle

35°

Reach_with_bucket_on_ground

72.7 in. (1847 mm)

Clearance_with_bucket_dumped

77.0 in. (1955 mm)

Reach_at_maximum_lift_height

15.9 in. (405 mm)

Max._lift_height_under_level_bucket

96.3 in. (2445 mm)

Bucket_rollback_force_at_ground_line

2557 lb (1160 kgf)

Relief_valve_setting_(Loader_control_valve)

2446 psi (172 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

3422 lb (1552 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.2X1.2 in. (55X30 mm)

Bucket_cylinder

2.0X1.2 in. (50X30 mm)

Height_of_Attachment

20.9 in. (530 mm)

Weight_of_bucket_(3)

243 lb (110 kg)

Loader_total_weight_(1+2+3)

1008 lb (457 kg)

Weight_of_mounting_frame_(2)

269 lb (122 kg)

Overall_height_in_carry_position

51.0 in. (1295 mm)

Attachment_used_for_specification

62 in. (1570 mm)

Length_of_Attachment_(to_pivot_point)

28.0 in. (712 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

496 lb (225 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

20.9 in. (530 mm)

CYCLE TIMES

Boom_raising_time

4.4 sec

Boom_lowering_time

3.1 sec

Bucket_dumping_time

4.2 sec

Bucket_rollback_time

2.6 sec
