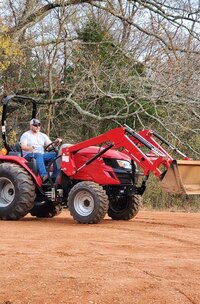

TYM Tractors TX57 Front-End Loader

Specifications

Model	TX57	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	109.4 in. / 2780 mm	Lift Capacity	2790 lb / 1266 kgf	Bucket Capacity	11.3 cu. ft / 0.32 cu. m
Price	Contact for price CAD

Description

TX57
Front-End Loader
The TX57 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX57 front-end loader can help you get your tasks done more efficiently.

Built for durable performance and excellent dig capabilities, the TX57 front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX57 front-end loader is ideal for more heavy duty applications.

CAPACITIES & REACH

Lift_height

109.4 in. (2780 mm)

Digging_depth

5.5 in. (140 mm)

Lift_capacity

2790 lb (1266 kgf)

Self_leveling

Bucket_capacity

11.3 cu. ft (0.32 cu. m)

Max._dump_angle

50°

Max._rollback_angle

35°

Reach_with_bucket_on_ground

71.5 in. (1815 mm)

Clearance_with_bucket_dumped

83.6 in. (2123 mm)

Reach_at_maximum_lift_height

17.6 in. (447 mm)

Max._lift_height_under_level_bucket

101 in. (2566 mm)

Bucket_rollback_force_at_ground_line

4356 lb (1976 kgf)

Relief_valve_setting_(Loader_control_valve)

2489 psi (175 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

5316 lb (2411 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.4x1.4 in. (60x35 mm)

Bucket_cylinder

2.4x1.4 in. (60x35 mm)

Height_of_Attachment

20.4 in. (519 mm)

Weight_of_bucket_(3)

271.2 lb (123 kg)

Loader_total_weight_(1+2+3)

1120 lb (508 kg)

Weight_of_mounting_frame_(2)

313 lb (142 kg)

Overall_height_in_carry_position

56.8 in. (1442 mm)

Attachment_used_for_specification

72 in. (1830 mm)

Length_of_Attachment_(to_pivot_point)

27.3 in. (694 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

535.7 lb (243 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

21.1 in. (537 mm)

CYCLE TIMES

Boom_raising_time

6.4 sec

Boom_lowering_time

4.2 sec

Bucket_dumping_time

5.7 sec

Bucket_rollback_time

3.8 sec
