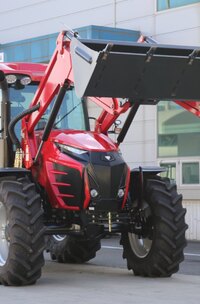

TYM Tractors TL130SL Front-End Loader

Specifications

Model	TL130SL	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	162 in. / 4114 mm	Lift Capacity	5415 lb / 2456 kgf	Self Leveling	Available
Price	Contact for price CAD

Description

TL130SL
Front-End Loader
Engineered to lift higher and lift heavier materials, the TYM TL130SL is optimized for superior material handling. Taking advantage of the power and performance of the TYM utility tractors, the TL130SL is compatible with the T130.

For tasks that require extra lift and reach, the TYM TL130SL is the ideal front-end loader attachment to use. Built with an impressive lift capacity, it boasts unparalleled stability that allows you to lift heavy materials higher without tipping over. The TL130SL front-end loader is built with self-leveling technology and bucket level indicator that allows you to focus on the work on hand and save you time from adjusting your attachment manually. Make cleaning and maintenance simple with the TL130SL’s easy attach and detach system, with only two fixing pins attached on both sides.

CAPACITIES & REACH

Lift_height

162 in. (4114 mm)

Digging_depth

6.1 in. (155 mm)

Lift_capacity

5415 lb (2456 kgf)

Self_leveling

Available

Max._dump_angle

60°

Max._rollback_angle

52°

Reach_with_bucket_on_ground

98.9 in. (2513 mm)

Clearance_with_bucket_dumped

127 in. (3227 mm)

Reach_at_maximum_lift_height

14.9 in. (379 mm)

Max._lift_height_under_level_bucket

152.5 in. (3873 mm)

Bucket_rollback_force_at_ground_line

6874 lb (3118 kgf)

Relief_valve_setting_(Loader_control_valve)

2987 psi (210 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

6618 lb (3002 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

3.1x1.8 in. (80x45 m)

Bucket_cylinder

3.0x1.6 in. (75x40 m)

Height_of_Attachment

22.2 in. (563 mm)

Weight_of_bucket_(3)

448 lb (203 kg)

Loader_total_weight_(1+2+3)

2249 lb (1020 kg)

Weight_of_mounting_frame_(2)

591 lb (268 kg)

Overall_height_in_carry_position

86.4 in. (2194 mm)

Attachment_used_for_specification

92 in. (2330 mm)

Length_of_Attachment_(to_pivot_point)

34.9 in. (886 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

1210 lb (549 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

22.8 in. (579 mm)

CYCLE TIMES

Boom_raising_time

4.4 sec

Boom_lowering_time

2.8 sec

Bucket_dumping_time

3.6 sec

Bucket_rollback_time

2.6 sec
