- Quick exchange of vibrator heads. Just one screw to loosen and the coupling can be disconnected.
- The IRFUflex is well protected against splash water and dirt by reliable seals and the avoidance of loose parts.
- Robust design for durability, low wear and low maintenance.
- High frequency technology provides outstanding results
- Variety of hose lengths and head sizes are available to match the right configuration to the application
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413473
Wacker Neuson Premium Line of Internal Vibrators( IRFUflex)
Call for Price
Overview
Specifications
modular system:
irfuflex technical specifications
Documents
|

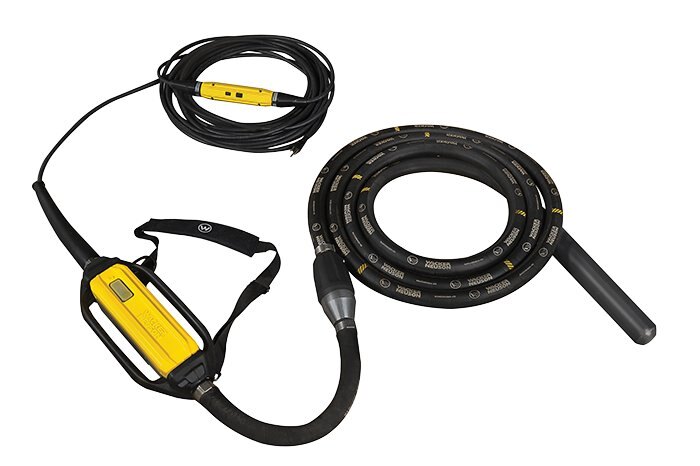

Premium Line of Internal Vibrators The Premium line for comprehensive comfort and maximum flexibility
|
|

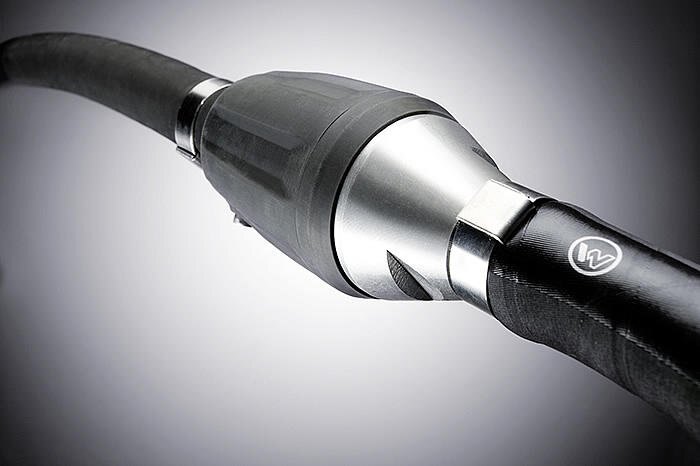

Quick connect coupling for maximum flexibility and ease of use! |
|
|
Model
IRFUflex
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Modular System:

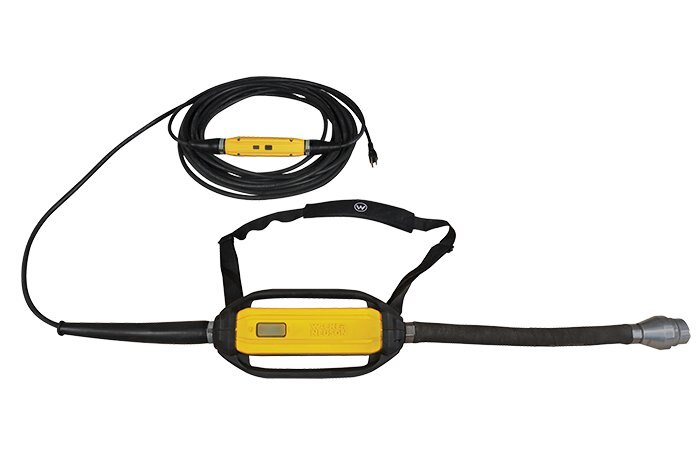

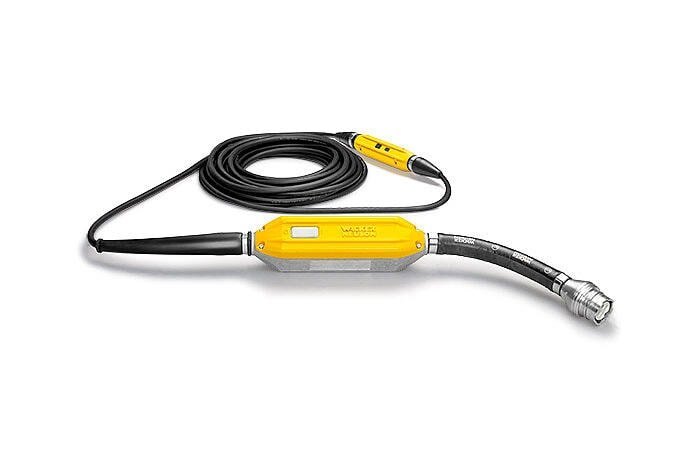

Converter component
The frequency converter component consists of the power cable, Bodyguard™ and the converter case. The coupling allows quick exchange of the vibrator component by loosening just one screw. |
|
The vibrator component consists of protection hose and vibrator head. For optimum concrete compaction results there are 4 sizes of vibrator heads available, each with protection hose lengths of 5 or 10 meters. Individual hose legths from 0.5 to 10 meters are optionally available by special request. The vibrator heads are available with or without rubber cap. |
|
Diameters of 30, 38, 45 and 58 mm |
|

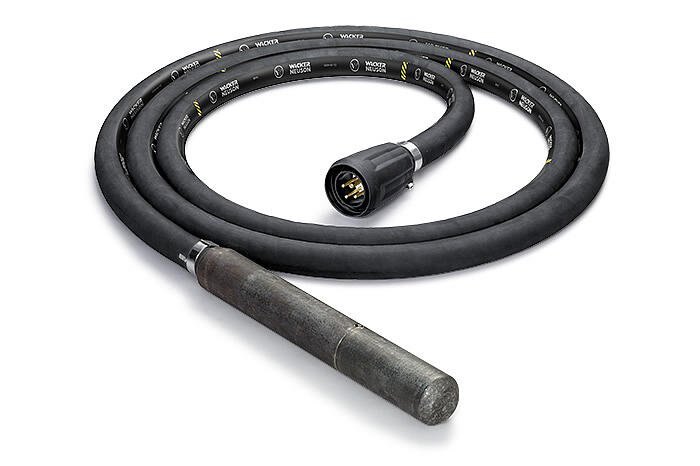

Vibrator component

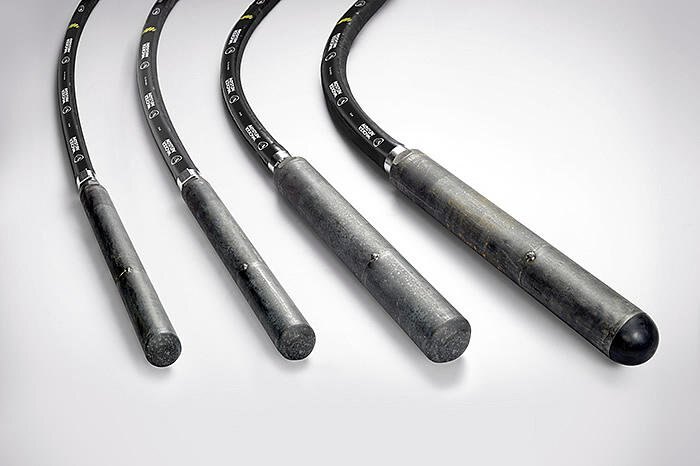

Vibrator heads - 4 sizes

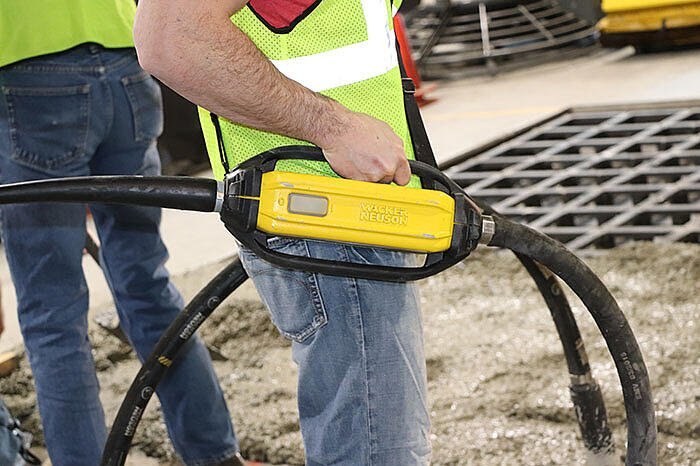

Bodyguard™ IRFUflex Technical Specifications
Metric
Converter Component FUflex4/120
| Weight | 9.4 kg |
| Voltage | 110 - 130 V |
| Current | 3.5 A |
| Frequency | 50 - 60 Hz |
| Output performance | 1.44 kVA |
| Output frequency | 200 Hz |
| Protective hose | 0.5 m |
| Feed cable | 15 m |
Vibrator Components
| IRflex38/120/5 | IRflex45/120/5 | IRflex58/120/15 | |
|---|---|---|---|
| Diameter mm | 38 | 45 | 58 |
| Length of the vibrator head mm | 345 | 382 | 400 |
| Weight kg | 1 | ||
| Operating weight (Protective hose 5 m) kg | 5.6 | 8 | 12.1 |
| Operating weight (Protective hose 10 m) kg | 10.7 | 12 | 17.6 |
| Vibrations rpm | 12,000 | 12,000 | 12,000 |
| Current A | 1.7 | 2.5 | 3.3 |
| Rated performance kW | 0.45 | 0.58 | 1.05 |
| Protective hose max. m | 5 | 5 | 15 |
Imperial
Converter Component FUflex4/120
| Weight | 20.72 lb |
| Voltage | 110 - 130 V |
| Current | 3.5 A |
| Frequency | 50 - 60 Hz |
| Output performance | 1.44 kVA |
| Output frequency | 200 Hz |
| Protective hose | 1.64 ft |
| Feed cable | 49.22 ft |
Vibrator Components
| IRflex38/120/5 | IRflex45/120/5 | IRflex58/120/15 | |
|---|---|---|---|
| Diameter in | 1.48 | 1.75 | 2.3 |
| Length of the vibrator head in | 13.46 | 14.9 | 15.6 |
| Operating weight (Protective hose 5 m) lb | 12.35 | 17.64 | 26.68 |
| Operating weight (Protective hose 10 m) lb | 23.59 | 26.46 | 38.8 |
| Vibrations rpm | 12,000 | 12,000 | 12,000 |
| Current A | 1.7 | 2.5 | 3.3 |
| Rated performance kW | 0.45 | 0.58 | 1.05 |
| Protective hose max. ft | 16.4 | 16.4 | 49.2 |
