ID # 19413481

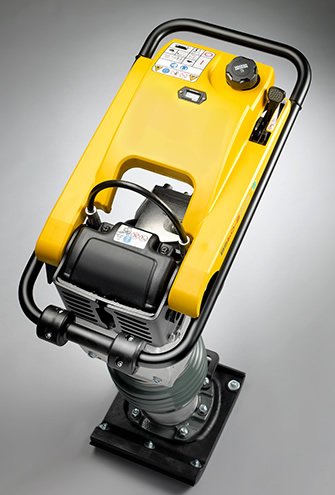

Wacker Neuson BS50-4 BS60-4 BS70-4

  • Wacker Neuson BS50 4 BS60 4 BS70 4
  • Wacker Neuson BS50 4 BS60 4 BS70 4
  • Wacker Neuson BS50 4 BS60 4 BS70 4
  • Wacker Neuson BS50 4 BS60 4 BS70 4
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

BS50-4 BS60-4 BS70-4 - 4-stroke rammers deliver outstanding performance

Wacker Neuson's 4 stroke rammers are designed for high performance and long life. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. The compact design and low center of gravity is ideal for the compaction of cohesive and mixed soils in trenches and other confined areas.
  • Easy to start and simple operation. Convenient single-lever operation for start-up, idling and shut-off
  • Low oil protection: When starting the unit, a sensor detects no or low oil and does not allow the engine to start, protecting the engine
  • A unique four-stage air filtration system provides a virtually dust-free engine for longer life and improved durability. The system includes a last chance filter that protects the engine during air filter maintenance
Specifications
Model
BS50-4 BS60-4 BS70-4
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson BS50 4 BS60 4 BS70 4 Comfortable transport

  • Large and flexible transport lug
  • Easy loading and stowing by transport rollers on the handle

Wacker Neuson BS50 4 BS60 4 BS70 4 4-stage air filter system

  • Very good filter performance thanks to 4-fold air filter (consisting of cyclone filter, paper lamella filter and double foam filter)
  • Clean intake air ensures optimum engine performance
  • Long service intervals due to high filter capacity

Wacker Neuson BS50 4 BS60 4 BS70 4 An engine with a strong reserve

The robust GXR 120 engine from Honda operates in normal operation well below its performance limit. This protects the engine and extends its service life.

Wacker Neuson BS50 4 BS60 4 BS70 4 Comfortable operation with auto-choke

  • Only one lever for idling, starting and stopping
bs50-4 bs60-4 bs70-4 technical specifications

Metric

  BS50-4As BS60-4As BS70-4As

Operating data
Operating weight  kg 65 72 80
Ramming shoe size (WxL)  mm 280 x 340 280 x 340 280 x 340
L x W x H  mm 673 x 343 x 940 673 x 343 x 965 673 x 343 x 965
Percussion rate max. blows/min 680 690 678
Stroke at the ramming shoe mm 61 65 73
Impact force  kN 16 18 20
Operating speed  m/min 7.1 8.8 7
Surface capacity - Compaction m²/h 119 148 118

Engine / Motor
Engine / Motor type  GXR 120 GXR 120 GXR 120
Engine / Motor manufacturer  Honda Honda Honda
Engine / Motor  Air-cooled single-cylinder four-cycle gasoline engine Air-cooled single-cylinder four-cycle gasoline engine Air-cooled single-cylinder four-cycle gasoline engine
Displacement  cm³ 121 121 121
Operating performance (DIN ISO 3046-1) kW 2.7 2.7 2.7
at rpm  rpm 4,200 4,200 3,600
Fuel consumption  l/h 1 1 1
Fuel tank capacity  l 2.9 2.9 2.9
CO2 (NRSC) * g/kWh 674 674 674
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.

 Imperial

  BS50-4As BS60-4As BS70-4As

Operating data
Operating weight  lb 143 159 176.4
Ramming shoe size (WxL)  in 11 x 13.4 11 x 13.4 11 x 13.4
L x W x H  in 26.5 x 13.5 x 37 26.5 x 13.5 x 38 26.5 x 13.5 x 38
Percussion rate max. blows/min 680 690 678
Stroke at the ramming shoe in 2.2 3.1 2.9
Impact force  lbf 3,597 4,047 4,496
Operating speed  ft/min 23.3 28.9 23
Surface capacity - Compaction ft²/h 1,281 1,604 1,270

Engine / Motor
Engine / Motor type  GXR 120 GXR 120 GXR 120
Engine / Motor manufacturer  Honda Honda Honda
Engine / Motor  Air-cooled single-cylinder four-cycle gasoline engine Air-cooled single-cylinder four-cycle gasoline engine Air-cooled single-cylinder four-cycle gasoline engine
Displacement  in³ 7.38 7.38 7.38
Operating performance (DIN ISO 3046-1) hp 3.6 3.6 3.6
at rpm  rpm 4,200 4,200 3,600
Fuel consumption  US gal/h 0.26 0.26 0.26
Fuel tank capacity  US gal 0.77 0.77 0.77
CO2 (NRSC) * g/kW-hr 674 674 674
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
