- Single lever direction control provides for easy operation.
- Easy access throttle control simplifies operation and reduces operator fatique
- Specially designed shockmount system offers a virtually vibration-free guide handle for increased operator comfort and reduced operator fatigue.
- Tough ductile iron base plate is extremely durable even under extreme conditions and provides a long service life.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413486
Wacker Neuson Reversible Vibratory Plates BPU2540A
Call for Price
Overview
Specifications
bpu2540a technical specifications
|
Reversible Vibratory Plates Our reversible vibratory plates are available in various sizes. Individual - just the way you need them. You can also get select models with remote control for a high level of operating comfort and sensitive variable control. |
|

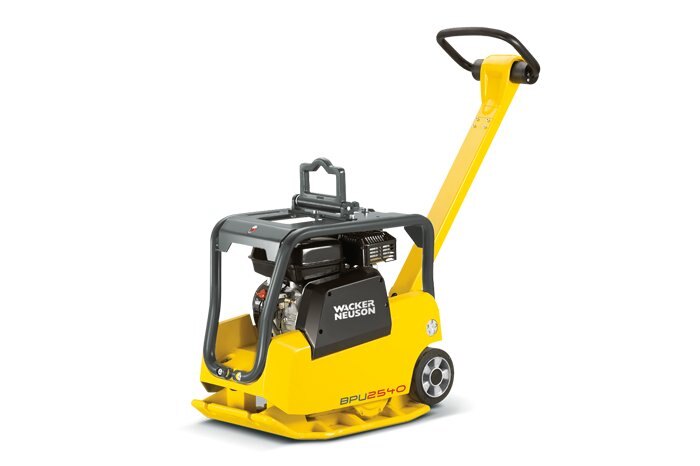

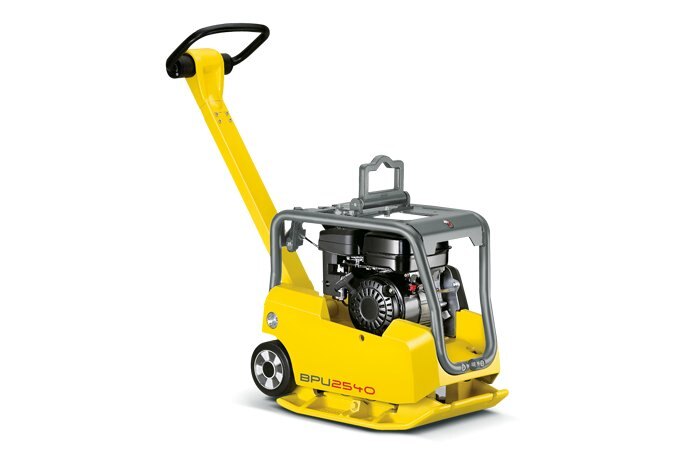

BPU2540A - Small reversible plate delivers big results The smallest reversible plate in the line is the BPU 2540A that offers excellent compaction results with added job site versatility. The unique integrated wheel set simplifies the task of moving a reversible plate around the job site and shop floor. This is an ideal plate for compaction of interlocking paving stones, trenches, paths, sidewalks and maintenance jobs. |
|
|
Model
BPU2540A
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
BPU2540A Technical Specifications
Operating data | |
| Operating weight | 140 kg |
| Centrifugal force | 25 kN |
| Base plate thickness | 10 mm |
| Height (without guide handle) | 666 mm |
| Operating height Adjustable Guide Handle - Down | 800 mm |
| Operating height Adjustable Guide Handle - Up | 1,143 mm |
| Operating width | 400 mm |
| Frequency | 90 Hz |
| Advance travel (depending on soil & environmental factors) | 21 m/min |
| Surface capacity (depending on soil & environmental factors) | 504 m²/h |
| Gradeability (depending on soil & environmental factors) | 30 % |
Engine / Motor | |
| Engine / Motor type | Air-cooled single-cylinder, four-cycle gasoline engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX160 |
| Displacement | 163 cm³ |
| Operating performance (DIN ISO 3046) | 4 kW |
| at rpm | 3,600 rpm |
| Fuel consumption | 0.8 l/h |
| Tank capacity Fuel | 3.7 l |
| Power transmission | From drive motor via automatic centrifugal belt drive direct to exciter. |
| Fuel type | Gasoline |
Imperial
Operating data | |
| Operating weight | 309 lb |
| Centrifugal force | 5,625 lbf |
| Base plate thickness | 0.4 in |
| Height (without guide handle) | 26 in |
| Operating height Adjustable Guide Handle - Down | 31.5 in |
| Operating height Adjustable Guide Handle - Up | 45 in |
| Operating width | 15.8 in |
| Frequency | 90 Hz |
| Advance travel (depending on soil & environmental factors) | 68.9 ft/min |
| Surface capacity (depending on soil & environmental factors) | 5,425 ft²/h |
| Gradeability (depending on soil & environmental factors) | 30 % |
Engine / Motor | |
| Engine / Motor type | Air-cooled single-cylinder, four-cycle gasoline engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX160 |
| Displacement | 9.9 in³ |
| Operating performance (DIN ISO 3046) | 5.5 hp |
| at rpm | 3,600 rpm |
| Fuel consumption | 0.2 US gal/h |
| Tank capacity Fuel | 3.9 US qt |
| Power transmission | From drive motor via automatic centrifugal belt drive direct to exciter. |
| Fuel type | Gasoline |
Model
BPU2540A
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
