- Intuitive guide handle design: The operator changes the direction of travel and speed simply by moving the handle forwards and backwards.
- Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and over large areas.
- Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator.
- The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
- The BPU4045 is equipped with a recoil starter. Different extension plates provide a variety of operating widths.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413489

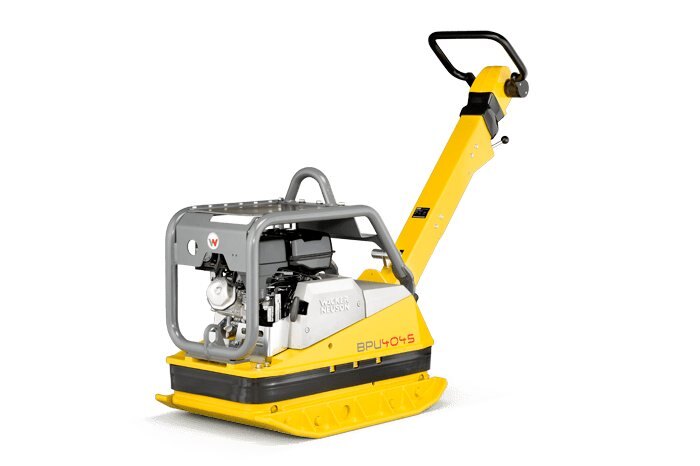

Wacker Neuson Reversible Vibratory Plates BPU4045A
Call for Price
Overview
Specifications
bpu4045a technical specifications
|
Reversible Vibratory Plates Our reversible vibratory plates are available in various sizes. Individual - just the way you need them. You can also get select models with remote control for a high level of operating comfort and sensitive variable control. |
|
High compaction force combined with fast forward and reverse travel means the BPU4045 achieves great productivity. It is an all around versatile plate for all job sites that place high demands on the machine's performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the BPU4045 suitable for all purposes and compacts even medium-weight interlocking paving stone reliably. |
|
|
Model
BPU4045A
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
BPU4045A Technical Specifications
Metric
Operating data | |
| Operating weight | 332 kg |
| Centrifugal force | 40 kN |
| Base plate size (W x L) | 450 x 900 mm |
| Base plate thickness | 12 mm |
| Height (without guide handle) | 725 mm |
| Operating width (without extension plate) | 450 mm |
| Operating width (with extension plate) | 610 mm |
| Frequency | 69 Hz |
| Advance travel max. (depending on soil and environmental factors) | 24 m/min |
| Surface capacity max. (depending on soil and environmental factors) | 864 m²/h |
Engine / Motor | |
| Engine / Motor type | Air-cooled single-cylinder, four-cycle gasoline engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX 270 |
| Displacement | 270 cm³ |
| at rpm | 3,600 rpm |
| Operating performance max. (DIN ISO 3046) | 6 kW |
| Operating performance (DIN ISO 3046) | 4.6 kW |
| at rpm | 2,600 rpm |
| Fuel consumption | 1.6 l/h |
| Tank capacity (fuel) | 5.3 l |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| CO2 (NRSC) * | 762 g/kWh |
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
Imperial
Operating data | |
| Operating weight | 710 lb |
| Centrifugal force | 8,992 lbf |
| Base plate size (W x L) | 17.7 x 35.4 in |
| Base plate thickness | 0.5 in |
| Height (without guide handle) | 28.5 in |
| Operating width (without extension plate) | 17.7 in |
| Operating width (with extension plate) | 24 in |
| Frequency | 69 Hz |
| Advance travel max. (depending on soil and environmental factors) | 78.7 ft/min |
| Surface capacity max. (depending on soil and environmental factors) | 9,300 ft²/h |
Engine / Motor | |
| Engine / Motor type | Air-cooled single-cylinder, four-cycle gasoline engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX 270 |
| Displacement | 16.5 in³ |
| at rpm | 3,600 rpm |
| Operating performance max. (DIN ISO 3046) | 8 hp |
| Operating performance (DIN ISO 3046) | 6.2 hp |
| at rpm | 2,600 rpm |
| Fuel consumption | 0.42 US gal/h |
| Tank capacity (fuel) | 5.6 US qt |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| CO2 (NRSC) * | 762 g/kW-hr |
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
