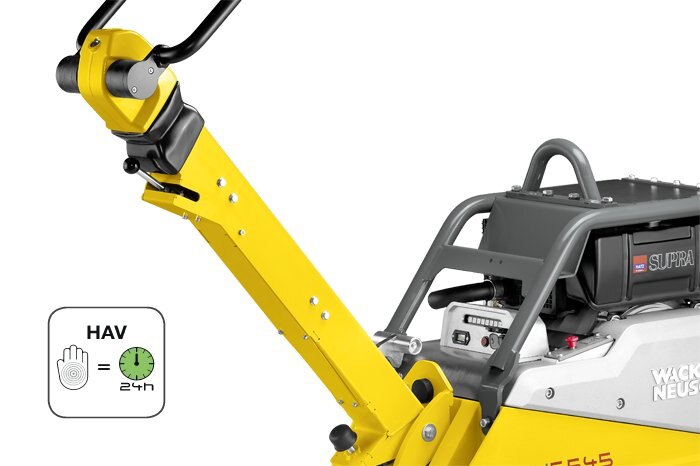

- The innovative guide handle provides for very low hand-arm vibration and optimizes the user-friendliness.
- Different extension plates provide a variety of operating widths.
- Comprehensive comfort features: e.g. low oil shut off, self tightening V-belt and maintenance-free alternator.
- The large diesel engine with its high reserve capacity ensures great efficiency and a long service life.
- Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and large areas.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413490

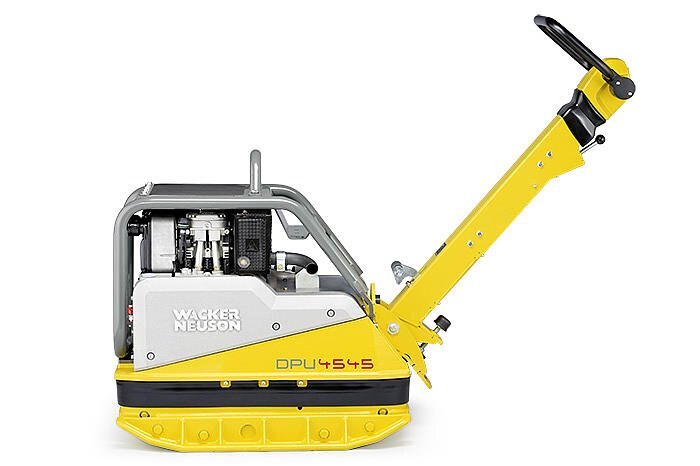

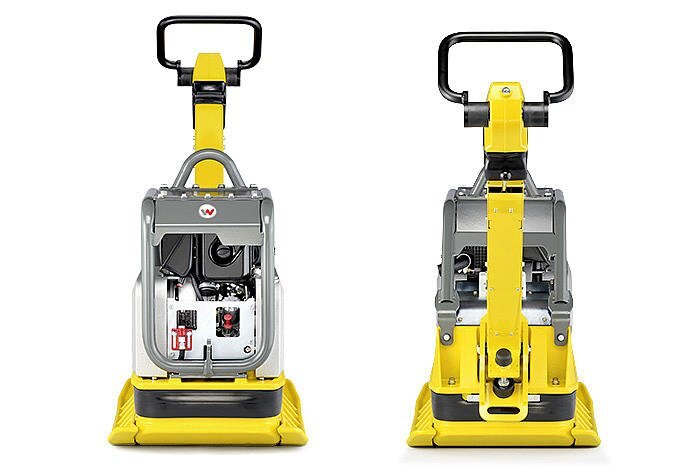

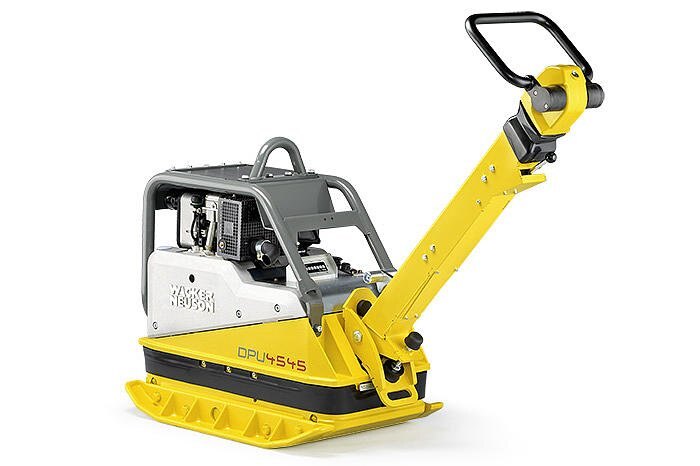

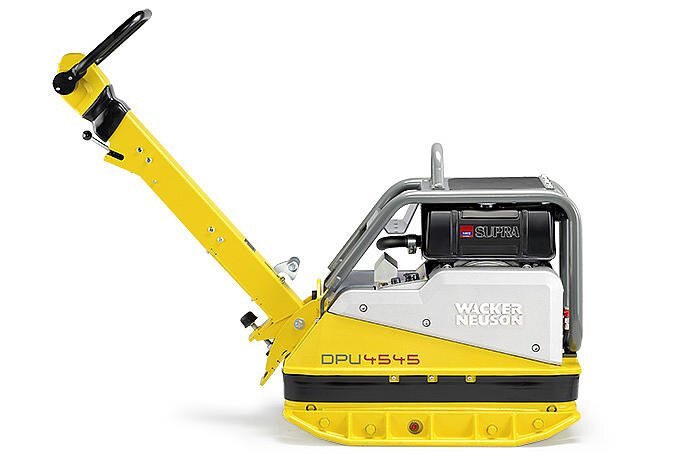

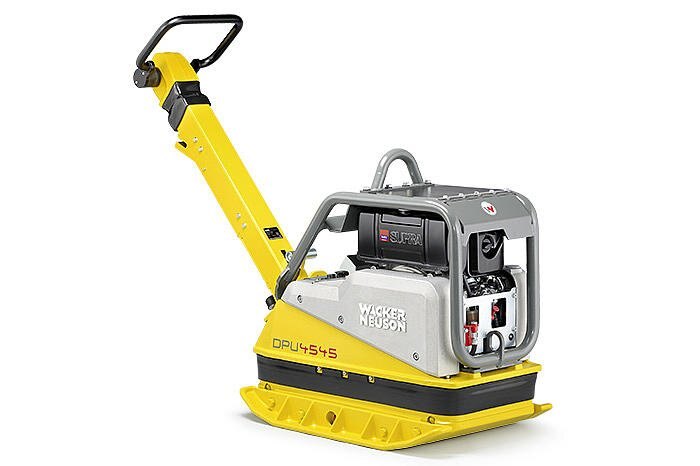

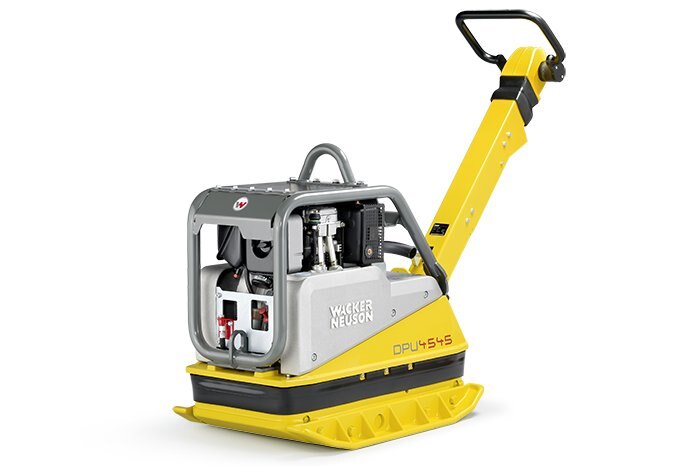

Wacker Neuson Reversible Vibratory Plates DPU4545Heh
Call for Price
Overview
Specifications
dpu4545heh technical specifications
|
Reversible Vibratory Plates Our reversible vibratory plates are available in various sizes. Individual - just the way you need them. You can also get select models with remote control for a high level of operating comfort and sensitive variable control. |
|

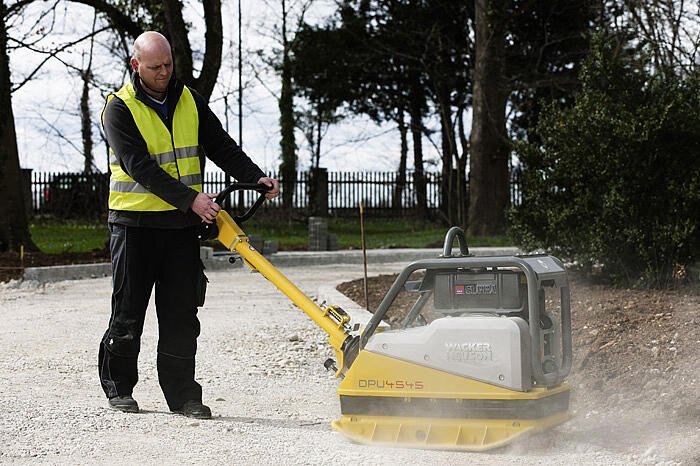

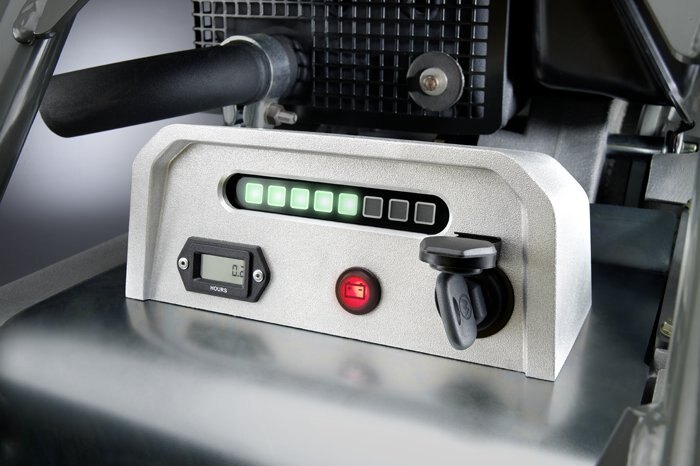

DPU4545Heh - Achieve your goal fast and reliably High compaction force combined with fast forward and reverse travel means the DPU 4545He achieves great productivity. It is an all-around versatile plate for all job sites that place high demands on the machine's performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the DPU 4545He suitable for all purposes and compacts even medium-weight interlocking paving stone reliably. Compatec, the compaction control by Wacker Neuson, is also available as a retrofit kit. |
|
|
Model
DPU4545Heh
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
DPU4545Heh Technical Specifications
Metric
| DPU4545He | DPU4545Hec | |
|---|---|---|
Operating data | ||
| Operating weight kg | 423 | 425 |
| Centrifugal force kN | 45 | 45 |
| Base plate size (W x L) mm | 440 x 900 | 440 x 900 |
| Base plate thickness mm | 12 | 12 |
| Height (without guide handle) mm | 790 | 790 |
| Operating width (with extension plate) mm | 600 | 600 |
| Frequency Hz | 69 | 69 |
| Hand-arm vibrations m/s² | 1.5 | 1.5 |
| Advance travel max. (depending on soil & environmental factors) m/min | 21 | 21 |
| Surface capacity max. (depending on soil & environmental factors) m²/h | 761 | 761 |
| Transport height mm | 1,540 | 1,540 |
| Transport length mm | 1,048 | 1,048 |
| Transport width mm | 780 | 780 |
Engine / Motor | ||
| Engine / Motor type | Air-cooled single-cylinder, four-cycle diesel engine | Air-cooled single-cylinder, four-cycle diesel engine |
| Engine / Motor manufacturer | Hatz | Hatz |
| Engine / Motor | 1D42S | 1D42S |
| Displacement cm³ | 445 | 445 |
| Engine performance max. (DIN ISO 3046 IFN) kW | 6.4 | 6.4 |
| at rpm rpm | 2,850 | 2,850 |
| Operating performance max. (DIN ISO 3046 IFN) kW | 4.9 | 4.9 |
| at rpm rpm | 3,000 | 3,000 |
| Fuel consumption l/h | 1.8 | 1.8 |
| Tank capacity (fuel) l | 5 | 5 |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| Fuel type | Diesel | Diesel |
| CO2 (NRSC) * g/kWh | 993 | 993 |
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
Imperial
| DPU4545He | DPU4545Hec | |
|---|---|---|
Operating data | ||
| Operating weight lb | 933 | 937 |
| Centrifugal force lbf | 10,116 | 10,116 |
| Base plate size (W x L) in | 17.3 x 35.4 | 17.3 x 35.4 |
| Base plate thickness in | 0.5 | 0.5 |
| Height (without guide handle) in | 31.1 | 31.1 |
| Operating width (with extension plate) in | 23.6 | 23.6 |
| Frequency Hz | 69 | 69 |
| Hand-arm vibrations ft/s² | 4.9 | 4.9 |
| Advance travel max. (depending on soil & environmental factors) ft/min | 68.8 | 68.8 |
| Surface capacity max. (depending on soil & environmental factors) ft²/h | 8,191 | 8,191 |
| Transport height in | 60.6 | 60.6 |
| Transport length in | 41.3 | 41.3 |
| Transport width in | 30.7 | 30.7 |
Engine / Motor | ||
| Engine / Motor type | Air-cooled single-cylinder, four-cycle diesel engine | Air-cooled single-cylinder, four-cycle diesel engine |
| Engine / Motor manufacturer | Hatz | Hatz |
| Engine / Motor | 1D42S | 1D42S |
| Displacement in³ | 27.1 | 445 |
| Engine performance max. (DIN ISO 3046 IFN) kW | 6.4 | 6.4 |
| at rpm rpm | 2,850 | 2,850 |
| Operating performance max. (DIN ISO 3046 IFN) kW | 4.9 | 4.9 |
| at rpm rpm | 3,000 | 3,000 |
| Fuel consumption US gal/h | 0.48 | 1.8 |
| Tank capacity (fuel) US qt | 5.3 | 5 |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| Fuel type | Diesel | Diesel |
| CO2 (NRSC) * g/kW-hr | 993 | 993 |
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
