- The innovative guide handle provides for very low hand-arm vibration and optimizes the user-friendliness.
- The BPU 5545A is equipped with a recoil starter. Different extension plates provide a variety of operating widths.
- Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator.
- The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life.
- A safety cut-out mechanism prevents the operator getting trapped between machine and an obstruction when moving backwards.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413491

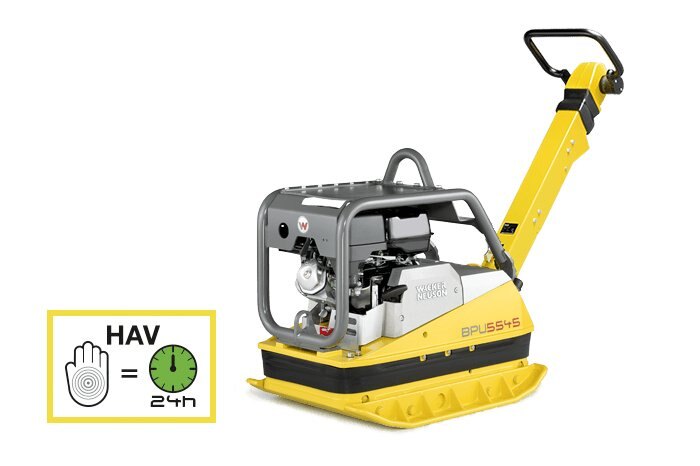

Wacker Neuson Reversible Vibratory Plates BPU5545A
Call for Price
Overview
Specifications
bpu5545a technical specifications
|
Reversible Vibratory Plates Our reversible vibratory plates are available in various sizes. Individual - just the way you need them. You can also get select models with remote control for a high level of operating comfort and sensitive variable control. |
|
BPU5545A - The specialist for heavy soils High compaction force combined with fast forward and reverse travel means the BPU 5545A achieves great productivity. It is an all-around versatile plate for all job sites that place high demands on the machine's performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the BPU 5545A suitable for all purposes and compacts even medium-weight and heavy interlocking paving stone reliably. Infinitely variable forward and reverse operation including spot compaction for easy maneuverability. Ideal for trenches and large spaces. |
|
|
Model
BPU5545A
Category Name
Industrial
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
BPU5545A Technical Specifications
Metric
Operating data | |
| Operating weight | 340 kg |
| Centrifugal force | 55 kN |
| Base plate size (W x L) | 440 x 900 mm |
| Base plate thickness | 12 mm |
| Height (without guide handle) | 725 mm |
| Operating width (with extension plate) | 600 mm |
| Frequency | 69 Hz |
| Hand-arm vibrations | 1.5 m/s² |
| Advance travel max. (depending on soil & environmental factors) | 27 m/min |
| Surface capacity max. (depending on soil & environmental factors) | 852 m²/h |
| Transport height | 1,514 mm |
| Transport length | 1,048 mm |
| Transport width | 780 mm |
Engine / Motor | |
| Engine / Motor type | Air-cooled single cylinder, four-cycle Otto engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX 390 |
| Displacement | 389 cm³ |
| Engine performance max. (DIN ISO 3046) | 6.4 kW |
| at rpm | 3,000 rpm |
| Operating performance max. (DIN ISO 3046) | 5.4 kW |
| at rpm | 2,600 rpm |
| Fuel consumption | 2 l/h |
| Tank capacity (fuel) | 6.1 l |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| Fuel type | Gasoline |
| CO2 (NRSC) * | 743 g/kWh |
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
Imperial
Operating data | |
| Operating weight | 750 lb |
| Centrifugal force | 12,364 lbf |
| Base plate size (W x L) | 17.3 x 35.4 in |
| Base plate thickness | 0.47 in |
| Height (without guide handle) | 28.3 in |
| Operating width (with extension plate) | 23.6 in |
| Frequency | 69 Hz |
| Hand-arm vibrations | 4.9 ft/s² |
| Advance travel max. (depending on soil & environmental factors) | 88.6 ft/min |
| Surface capacity max. (depending on soil & environmental factors) | 9,171 ft²/h |
| Transport height | 59.6 in |
| Transport length | 41.3 in |
| Transport width | 30.7 in |
Engine / Motor | |
| Engine / Motor type | Air-cooled single cylinder, four-cycle Otto engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX 390 |
| Displacement | 23.7 in³ |
| Engine performance max. (DIN ISO 3046) | 6.4 kW |
| at rpm | 3,000 rpm |
| Operating performance max. (DIN ISO 3046) | 5.4 kW |
| at rpm | 2,600 rpm |
| Fuel consumption | 0.53 US gal/h |
| Tank capacity (fuel) | 6.4 US qt |
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. |
| Fuel type | Gasoline |
| CO2 (NRSC) * | 743 g/kW-hr |
*Determined value of the CO2 emission during engine certification without consideration of the application on the machine.
