- Patented three receiving eye design eliminates signal loss from trench shoring while retaining the line-of-sight control of the roller. With 16 channel transmission, multiple rollers can be operated on the same job site without interference from one another.
- RTx model offers flexible drums that allows for convenient conversion from 32 in/82 cm to 22in/56 cm. The easy to remove extensions have a central mounting system that protects the bolts from exposure to damage during operation.
- The articulated joint increases maneuverability and the low center of gravity improves stability. High and low compaction force provides flexibility depending on the job.
- The lower end is completely maintenance-free due to the self-lubricating design of the drive and the exciter.
- The engine control module with diagnostic LEDs monitors machine functions such as oil pressure, radiator level, engine temperature, glow plug, battery and air filter capacity for easy operation and troubleshooting.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413505

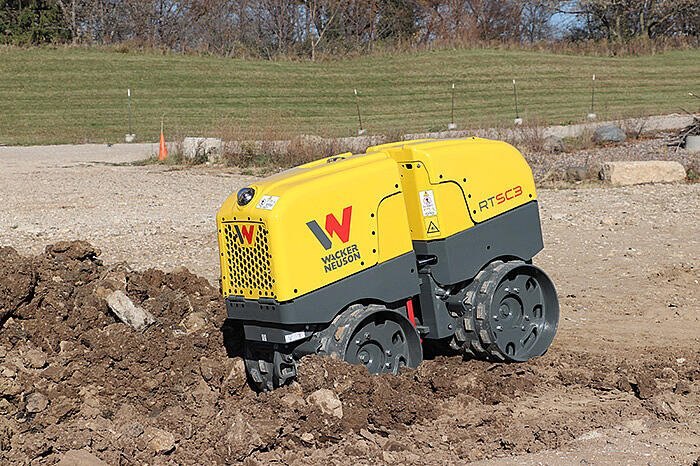

Wacker Neuson Trench Rollers RTxSC3
Call for Price
Overview
Specifications
description
rtxsc3 technical specifications
|
RTxSC3 - The smart remote-controlled trench roller The RT trench roller with the SC3 infrared-remote control offers proven compaction results with safer operation. The smart control uses an infrared signal with line-of-sight control. The machine stops moving and vibrating should the line-of-sight be lost or if the operator comes within three feet (one meter) of the roller’s receiving eyes with the control box. The articulated trench roller offers below the axle exciter in each drum to allow for the efficient transfer of compaction energy to the soil for superior compaction results. Available with the choice of Kohler or Kubota engine. The RTx models are available with Compatec, the compaction control system that indicates the relative compaction level of the soil. |
|
|
Model
RTxSC3
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Description
Third infrared receiving eye
prominently placed infrared receiving eye on top of the Trench Roller ensures that the remote control contact is maintained permanently, even in the trench shoring. |
 Below the axle exciter in each drum: means more efficient transfer of compaction energy to the soil and improved stability of the machine. |

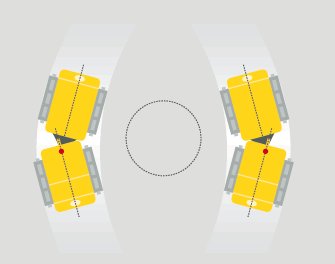

The articulated joint enables continuous operation around curved building segments. |
Compatec - Compaction Control
The RTx models are available with Compatec, Wacker Neuson's compaction control. If the number of lights no longer increases, |
RTxSC3 Technical Specifications
Metric
| RTLx-SC3 | RTKx-SC3 | |
|---|---|---|
Operating data | ||
| Operating weight kg | 1,495 | 1,467 |
| L x W x H mm | 1853 x 820 x 1270 | 1853 x 820 x 1270 |
| Drum diameter mm | 520 | 520 |
| Width Drum mm | 560 / 820 * | 560 / 820 * |
| Centrifugal force (min.) kN | 34.2 | 34.2 |
| Centrifugal force (max.) kN | 68.4 | 68.4 |
| Frequency Hz | 41.7 | 41.7 |
| Linear force static (per drum) N/mm | 10.2 | 9.8 |
| Linear force dynamic (per drum) N/mm | 45 | 45 |
| Travel speed forward km/h | 2.5 | 2.5 |
| Travel speed reverse km/h | 2.5 | 2.5 |
| Turning radius inner mm | 1,600 | 1,600 |
| Surface capacity max. (depending on soil consistency) m²/h | 990 | 990 |
| Gradeability max. (without vibration) % | 50 | 50 |
| Gradeability max. (with vibration) % | 45 | 50 |
Engine / Motor | ||
| Engine / Motor type | Water-cooled 3-cylinder diesel engine with electric starter | Water-cooled 3-cylinder diesel engine with electric starter |
| Engine / Motor manufacturer | Kohler KDW 1003 | Kubota D902 |
| Displacement cm³ | 1,028 | 898 |
| Operating performance (DIN ISO 3046) kW | 14.8 | 15.5 |
| RPM / speed Operating rpm | 3,000 | 3,000 |
| Fuel type Low Sulfer / Ultra Low Sulfer | Diesel | Diesel |
| Fuel consumption l/h | 4.5 | 4.5 |
| Tank capacity l | 24 | 24 |
*RTx model drums can be configured for 32in (820mm) or 22in (560mm) width.
Imperial
| RTLx-SC3 | RTKx-SC3 | |
|---|---|---|
Operating data | ||
| Operating weight lb | 3,295 | 3,235 |
| L x W x H in | 73 x 32 x 50 | 73 x 32 x 50 |
| Drum diameter in | 20.5 | 20.5 |
| Width Drum in | 22 / 32* | 22 / 32* |
| Centrifugal force (min.) lbf | 7,700 | 7,700 |
| Centrifugal force (max.) lbf | 15,400 | 15,400 |
| Frequency Hz | 41.7 | 41.7 |
| Linear force static (per drum) lb/in | 58.3 | 56.2 |
| Linear force dynamic (per drum) lb/in | 258 | 258 |
| Travel speed forward mph | 1.5 | 1.5 |
| Travel speed reverse mph | 1.5 | 1.5 |
| Turning radius inner in | 63 | 63 |
| Surface capacity max. (depending on soil consistency) ft²/h | 10,654 | 10,654 |
| Gradeability max. (without vibration) % | 50 | 50 |
| Gradeability max. (with vibration) % | 45 | 50 |
Engine / Motor | ||
| Engine / Motor type | Water-cooled 3-cylinder diesel engine with electric starter | Water-cooled 3-cylinder diesel engine with electric starter |
| Engine / Motor manufacturer | Kohler KDW 1003 | Kubota D902 |
| Displacement in³ | 62.7 | 54.8 |
| Operating performance (DIN ISO 3046) hp | 19.8 | 20.8 |
| RPM / speed Operating rpm | 3,000 | 3,000 |
| Fuel type Low Sulfer / Ultra Low Sulfer | Diesel | Diesel |
| Fuel consumption US gal/h | 1.2 | 1.2 |
| Tank capacity US gal | 6.3 | 6.3 |
*RTx model drums can be configured for 32in (820mm) or 22in (560mm) width.
