ID # 19413508

Wacker Neuson Single Drum Soil Compactors RC110

  • Wacker Neuson Single Drum Soil Compactors RC110
  • Wacker Neuson Single Drum Soil Compactors RC110
  • Wacker Neuson Single Drum Soil Compactors RC110
  • Wacker Neuson Single Drum Soil Compactors RC110
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Single drum soil compactors

Our comfortable single drum soil compactors are characterized by a high level of operator safety and a long service life. They can be used flexibly and impress (despite the high operating weight) with their high efficiency output in compacting different types of soils.

RC110 - 11-ton soil compactor for variety of applications

The RC110 single drum soil compactor offers optimum compaction results with excellent maneuverability, gradeability and stability. The compact design provides for an excellent view of the work area and drum from the operator’s seat. The spacious operator platform is isolated from vibration for comfortable operation. It also features plenty of legroom and simple operation via an intuitively designed display and joystick. The RC soil compactors are ideal for commercial and residential projects, secondary roads and parking lots.
  • Three-point articulated pendulum joint provides for even weight distribution and consistent compaction, even when navigating curves and uneven ground conditions
  • Speed control provides consistent speed for uniform compaction results
  • Quick and easy maintenance with all access points located on one side of the machine
  • Excellent traction in a variety of conditions, enhancing productivity and safety.
  • Models offered with either smooth drum for compaction of granular material or padfoot drum for effective compaction of cohesive soils such as clay.

Two types of drums:
Available with a smooth drum or padfoot drum

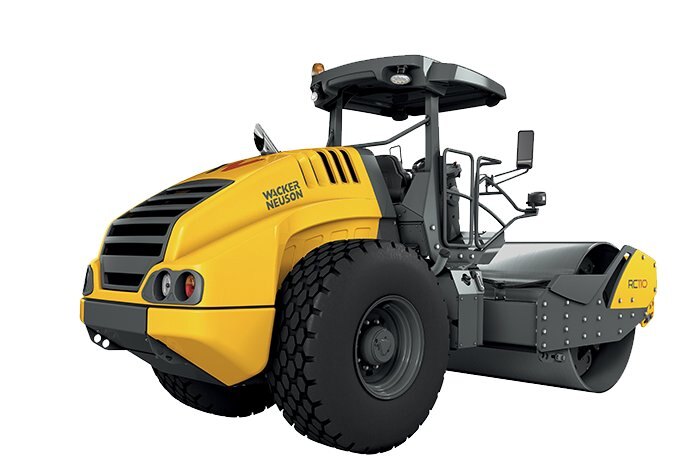

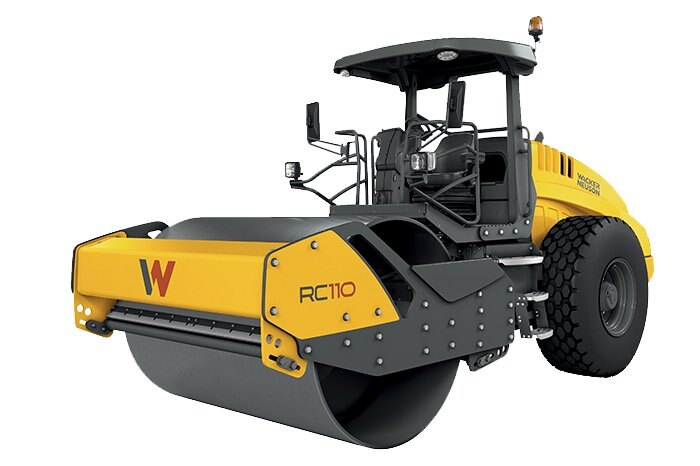

Single drum soil compactors with a smooth drum RC110

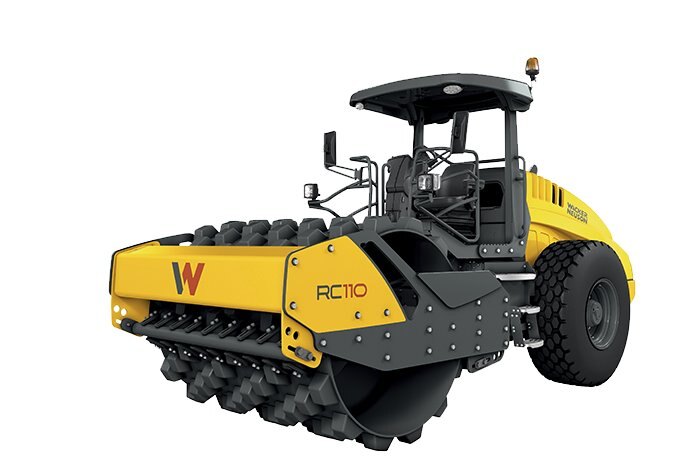

Single drum soil compactors with a padfoot drum RC110p
Specifications
Model
RC110
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description
Wacker Neuson Single Drum Soil Compactors RC110

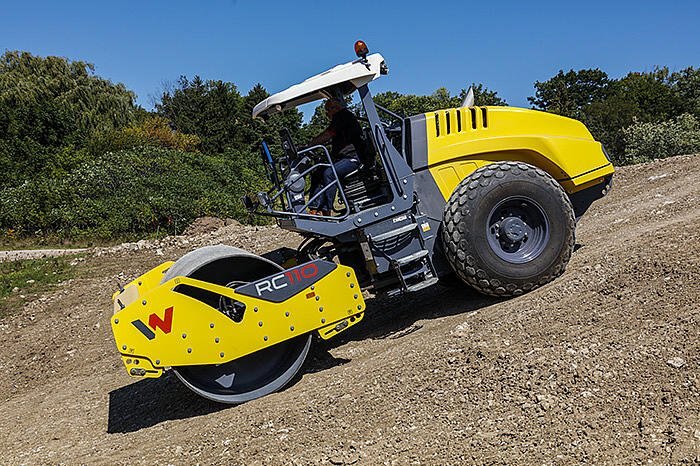

Master up to a 63% gradient

thanks to the wheel motors.

  • Drive system via hydraulic wheel motors
  • Distribution of the torque to the front and rear axle depending on the requirements
  • Efficient compaction on slopes
Wacker Neuson Single Drum Soil Compactors RC110

Compaction through vibration

Vibration for deep compaction

RC110 and RC110p
rc110 options

RC110 Options

OPTIONS - FACTORY INSTALLED

Operators Platform

  • Protective roof on ROPS with integrate FOPS
  • Cab with heating; ROPS and FOPS
  • Cab with heating and AC; ROPS and FOPS
  • Seat-all weather, backrest, armrest
  • Steering column, comfort exit and tilt
  • Seat-rotatable
  • Pre-heater
  • Radio
  • Lunchbox storage

Working accessories

  • Work light Cab, 4-fold, LED
  • Work light ROPS, 4-fold LED
  • Work light Protective Roof, 4-fold, LED
  • Compaction meter

Safety accessories

  • Seat belt reminder signal
  • Fire extinguisher
  • Camera - rear view

Miscellaneous

  • Hydraulic oil, biodegradable
  • Engine stop automatic
  • Hood, electronically operated
  • Battery disconnection switch

DEALER INSTALLED

  • Padfoot shells with combo scraper not mount
rc110 technical specifications

  Metric

  RC110 RC110p

Operating data General
Operating weight with ROPS kg 10,630 11,725
Operating weight with cab kg 10,880 11,975
Operating weight max. kg 13,290 13,110
Drum type  smooth/undivided Sheepsfoot

Dimensions
L x W x H  mm 5,850 x 2,284 x 2,960 5,850 x 2,284 x 2,960
Drum width  mm 2,140 2,140
Drum diameter  mm 1,504 1,684
Operating width max. mm 2,140 2,140
Ground clearance Middle mm 390 390
Axle load Front kg 5,890 6,550
Axle load Rear kg 4,990 5,425
Curb clearance left mm 72 72
Curb clearance right mm 72 72
Turning radius  mm 3,870 3,870

Operating data Vibration
Centrifugal force front, level I kN 246 246
Centrifugal force front, level II kN 136 136
Frequency front, level I Hz 30 30
Frequency front, level II Hz 36 36
Amplitude front, level I mm 2.04 1.9
Amplitude front, level II mm 0.84 0.8
Travel speed max. km/h 14 12
Gradeability with vibration % 54 58
Gradeability without vibration % 59 63

Engine / Motor
Engine / Motor type  4-cylinder diesel engine, TCD 3.6 L4 4-cylinder diesel engine, TCD 3.6 L4
Engine / Motor manufacturer  Deutz Deutz
RPM / speed  rpm 2,300 2,300
Operating performance  kW 85 85
Tank capacity fuel l 280 280
Tank capacity ad blue l 32 32

 Imperial

  RC110 RC110p

Operating data General
Operating weight with ROPS lb 23,435 25,849
Operating weight with cab lb 23,986 26,400
Operating weight max. lb 29,304 28,908
Drum type  smooth/undivided Sheepsfoot

Dimensions
L x W x H  in 230.3 x 89.9 x 116.5 230.3 x 89.9 x 116.5
Drum width  in 84.25 84.25
Drum diameter  in 59.21 66.3
Operating width max. in 84.25 84.25
Ground clearance Middle in 15.35 15.35
Axle load Front lb 12,987.45 14,442.75
Axle load Rear lb 11,002.95 11,962.12
Curb clearance left in 2.84 2.84
Curb clearance right in 2.84 2.84
Turning radius  in 152.4 152.4

Operating data Vibration
Centrifugal force front, level I lbf 55,350 55,350
Centrifugal force front, level II lbf 30,600 30,600
Frequency front, level I Vpm 1,800 1,800
Frequency front, level II Vpm 2,160 2,160
Amplitude front, level I in 0.08 0.07
Amplitude front, level II in 0.03 0.03
Travel speed max. mph 8.7 7.5
Gradeability with vibration % 54 58
Gradeability without vibration % 59 63

Engine / Motor
Engine / Motor type  4-cylinder diesel engine, TCD 3.6 L4 4-cylinder diesel engine, TCD 3.6 L4
Engine / Motor manufacturer  Deutz Deutz
RPM / speed  rpm 2,300 2,300
Operating performance  hp 113.9 113.9
Tank capacity fuel US gal 74 74
Tank capacity ad blue US gal 8.45 8.45
