- Best in class tool starting and voltage regulation due to a unique step-start generator technology with Automatic Voltage Regulation (AVR) and separate excitation winding.
- Central GFCI (neutral bonded to ground) sensor system eliminates common GFI outlet failures while offering personal protection on all receptacles including 240 Volt. Meets the latest NEC and OSHA jobsite standard
- Unique auto-idle control with time delay system automatically reduces the engine to a low speed reducing fuel consumption, noise and wear.
- Robust, powder coated steel frame with dual cross-member support, high impact polyethylene fuel tank and heavy duty shock-mounting combine to provide outstanding impact protection.
- Proven Honda GX340 engine with low oil shutdown. Fully compliant with the latest EPA evaporative emissions regulations.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413512

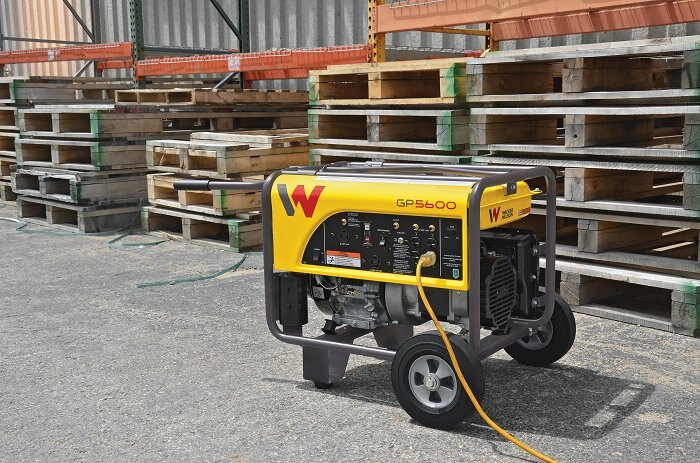

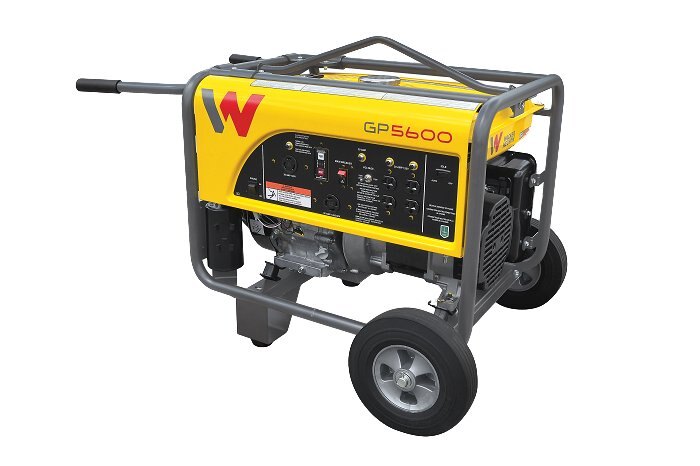

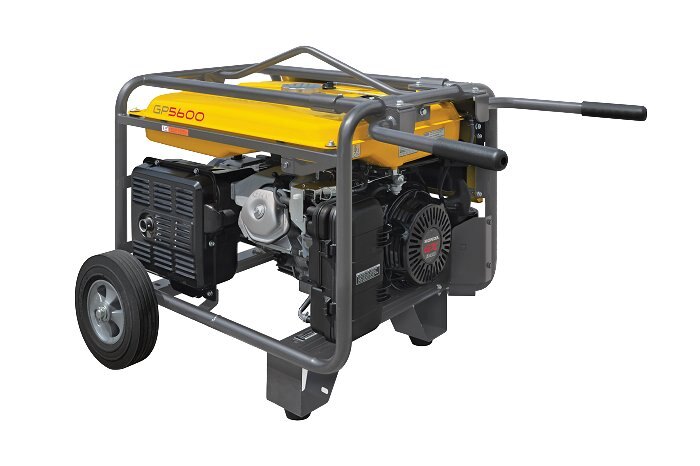

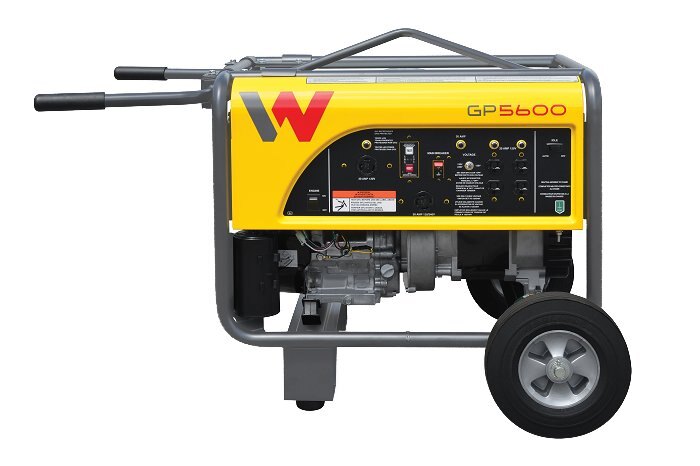

Wacker Neuson Portable Generators GP5600A
Call for Price
Overview
Specifications
gp5600a technical specifications
|
GP5600A - Rugged and powerful premium portable power
|
|
|
Model
GP5600A
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
GP5600A Technical Specifications
Metric
Portable Premium Generators
Dimensions | |
| L x W x H | 708 x 548 x 515 mm |
| L x W x H - Shipping | 727 x 570 x 548 mm |
| Shipping weight | 83 kg |
Operating data | |
| Operating weight | 101 kg |
| Circuit breaker AC - 1 Phase 2 Pole | 23 A |
| Receptacles | (2) 125V, 20A duplex 5-20R |
| Receptacles | (1) 125V, 30A twist lock L5-30R |
| Receptacles | (1) 125/250V, 30A twist lock L14-30R |
Electrical system | |
| Electrical power Maximum Output | 5,600 W |
| Electrical power Continuous Output | 5,000 W |
| Voltage AC - 1 Phase | 120/240 V |
| Frequency | 60 Hz |
| Power factor | 1 cos Φ 1~ |
| Generator model | AVR with Brushes |
| Generator insulation (class) | B |
| Power Rating Specification | SAE J1349 |
Engine / Motor | |
| Engine / Motor | Honda GX340 |
| Cylinder | 1 |
| Displacement | 383 cm³ |
| Operating performance | 8 kW |
| RPM / speed | 3,600 rpm |
| Tank capacity Oil | 1.1 l |
| Tank capacity Fuel | 21 l |
| Fuel type | Gasoline |
| Fuel consumption | 3.4 l/h |
| Runtime | 6.2 h |
Imperial
Portable Premium Generators
Dimensions | |
| L x W x H | 28.0 x 21.6 x 20.3 in |
| L x W x H - Shipping | 28.6 x 22.4 x 21.6 in |
| Shipping weight | 183 lb |
Operating data | |
| Operating weight | 223 lb |
| Circuit breaker AC - 1 Phase 2 Pole | 23 A |
| Receptacles | (2) 125V, 20A duplex 5-20R |
| Receptacles | (1) 125V, 30A twist lock L5-30R |
| Receptacles | (1) 125/250V, 30A twist lock L14-30R |
Electrical system | |
| Electrical power Maximum Output | 5,600 W |
| Electrical power Continuous Output | 5,000 W |
| Voltage AC - 1 Phase | 120/240 V |
| Frequency | 60 Hz |
| Power factor | 1 cos Φ 1~ |
| Generator model | AVR with Brushes |
| Generator insulation (class) | B |
| Power Rating Specification | SAE J1349 |
Engine / Motor | |
| Engine / Motor | Honda GX340 |
| Cylinder | 1 |
| Displacement | 23.4 in³ |
| Operating performance | 10.72 hp |
| RPM / speed | 3,600 rpm |
| Tank capacity Oil | 1.2 US qt |
| Tank capacity Fuel | 5.5 US gal |
| Fuel type | Gasoline |
| Fuel consumption | 0.9 US gal/h |
| Runtime | 6.2 h |
Model
GP5600A
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Quantity
0
