- Brushless alternators with separate excitation and AVR (Automatic Voltage Regulation) provide excellent motor starting and an enhanced ability to run non-linear loads.
- Simple, one switch start for easy operation and easy voltage selection using a lockable voltage selection switch.
- Rated power up to 120°F (49°C) for optimum performance even in hot climates. For cold climates, add many of the factory installed options like the cold weather package or battery chargers, etc.
- Easy to use keypad for service diagnostics; engine diagnostic codes display on the LCD readout simplifying engine troubleshooting, fuel consumption, percentage load, kW per hour and other data available.
- Also available, heavy-duty, dual axle trailers with aluminum diamond plate fenders are road ready with DOT lighting, chains height adjustable coupler and choice of surge or electric brakes.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413520

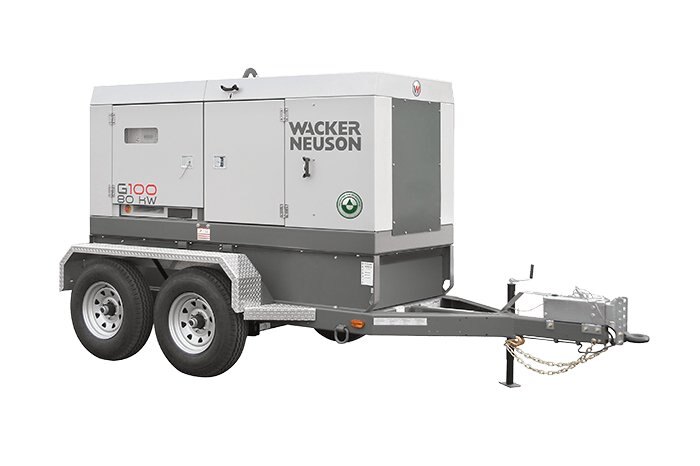

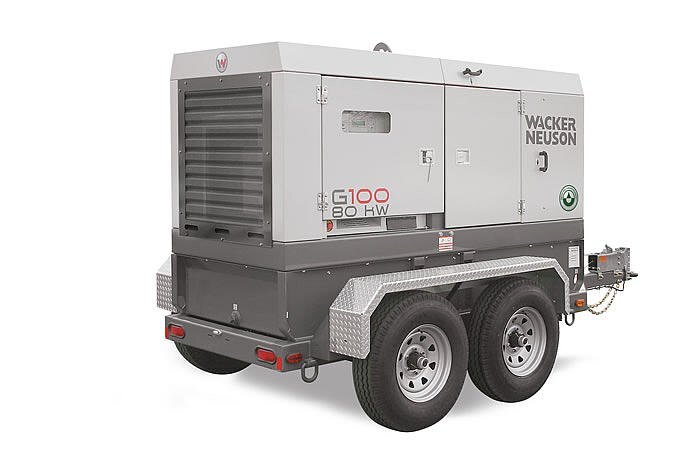

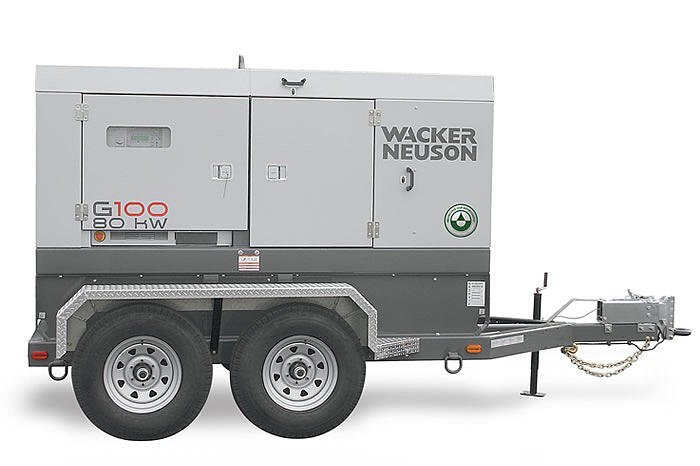

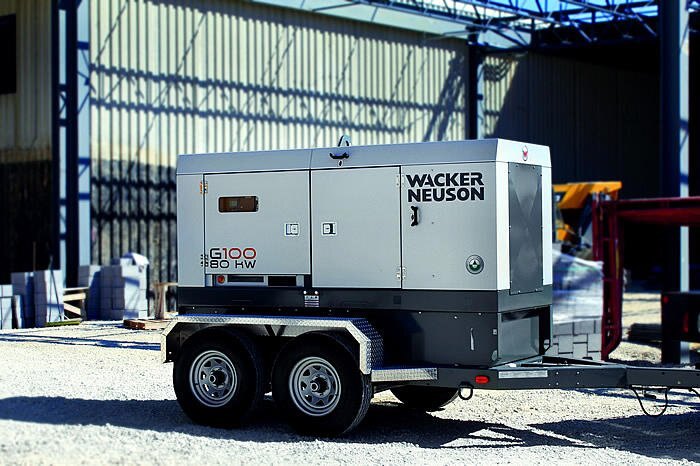

Wacker Neuson Mobile Generators G100
Call for Price
Overview
Specifications
g100 technical specifications
|
G100 - Proven rugged design delivers exceptional power
|
|
|
Model
G100
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
G100 Technical Specifications
Metric
| G100 (T4F) | G100 (T4F) 600V | |
|---|---|---|
Dimensions | ||
| L x W x H Operating (Skid) mm | 2794 x 1143 x 1685 | 2794 X 1143 X 1685 |
| L x W x H Shipping (Skid) mm | 2870 x 1207 x 1993 | 2870 x 1207 x 1993 |
| L x W x H Shipping/Operating (Trailer) mm | 4470 x 2032 x 2332 | 4470 x 2032 x 2332 |
Weights | ||
| Weight Dry (Skid) kg | 2,332 | 2,392 |
| Weight Operating (Skid) kg | 2,830 | 2,897 |
| Weight Shipping (Skid) kg | 2,416 | 2,477 |
| Weight Operating (Trailer) kg | 3,452 | 3,512 |
| Weight Shipping (Trailer) kg | 2,953 | 3,013 |
Operating data | ||
| Trailer coupling Type | Pintle | Pintle |
| Standby output kW | 88 | 88 |
| Prime output kW | 80 | 80 |
| Voltage - AC 3 Phase V | 240/480 | 240 / 480 / 600 |
| Current - 3 Phase (Prime) A | 240/120 | 281/144/115 |
| Current - AC 1 Phase A | 120/240 | 120 / 240 |
| Voltage - 3 Phase V | 208, 220, 240, 416, 440, 480 | 208, 220, 240, 416, 440, 480, 600 |
| Voltage - 1 Phase V | 120, 127, 139, 240, 254, 277 | 120, 127, 139, 240, 254, 277 |
| Circuit breaker (Main) A | 250 | 250 |
| Frequency Hz | 60 | 60 |
| Power factor 1 Phase cos Φ 1~ | 1 | 1 |
| Power factor 3 Phase cos Φ 3~ | 0.8 | 0.8 |
| Sound level (LwA) at Prime (23 ft / 7 m) dB(A) | 69.4 | 69.4 |
| Receptacles -20 Amp GFI Duplex | 2 | 2 |
| Receptacles -50 Amp Twist Lock | 3 | 3 |
Engine / Motor | ||
| Engine / Motor | Liquid-Cooled, 4 Cylinders | Liquid-Cooled, 4 Cylinders |
| Engine / Motor manufacturer | Cummins QSB5-G11 | Cummins QSB5-G11 |
| Emissions Certified | Tier 4 Final | Tier 4 Final |
| Displacement cm³ | 4,500 | 4,500 |
| Operating performance ISO 3046 kW | 126 | 126 |
| at rpm rpm | 1,800 | 1,800 |
| Coolant Capacity l | 23 | 23 |
| Engine oil Capacity l | 14.5 | 14.5 |
| Fuel type | Diesel | Diesel |
| Fuel consumption (Prime Load) l/h | 22 | 22 |
| Tank capacity -Fuel l | 710 | 710 |
| Quantity (Battery) | 2 | 2 |
| Battery V | 12 | 12 |
| Generator model | Mecc Alte Brushless w/ AVR | Mecc Alte Brushless w/ AVR |
| Voltage control No Load to Full Load +/- % | 1 | 1 |
| Voltage control Steady State +/- % | 0.2 | 0.2 |
| Generator insulation (class) | H | H |
| Frequency (Generator Speed) Hz | 60 | 60 |
| Runtime at 100% Prime Load h | 30.1 | 30.1 |
| Runtime at 75% Prime Load h | 38.8 | 3.8 |
| Runtime at 50% Prime Load h | 53.3 | 53.3 |
| Runtime at 25% Prime Load h | 82.3 | 82.3 |
| Exhaust after treatment | AUS 32 | AUS 32 |
| DEF Consumption l/h | 0.99 | 0.99 |
| DEF Tank Capacity l | 33 | 33 |
| Runtime h | 31.4 | 31.4 |
Imperial
| G100 (T4F) | G100 (T4F) 600V | |
|---|---|---|
Dimensions | ||
| L x W x H Operating (Skid) in | 110 x 45 x 66.3 | 110 x 45 x 66.3 |
| L x W x H Shipping (Skid) in | 113 x 47.5 x 78.4 | 113 x 47.5 x 78.4 |
| L x W x H Shipping/Operating (Trailer) in | 176 x 80 x 91.8 | 176 x 80 x 91.8 |
Weights | ||
| Weight Dry (Skid) lb | 5,141 | 5,274 |
| Weight Operating (Skid) lb | 6,241 | 6,374 |
| Weight Shipping (Skid) lb | 5,328 | 5,461 |
| Weight Operating (Trailer) lb | 7,611 | 7,744 |
| Weight Shipping (Trailer) lb | 6,511 | 6,644 |
Operating data | ||
| Trailer coupling Type | Pintle | Pintle |
| Standby output kW | 88 | 88 |
| Prime output kW | 80 | 80 |
| Voltage - AC 3 Phase V | 240/480 | 240 / 480 / 600 |
| Current - 3 Phase (Prime) A | 240/120 | 281/144/115 |
| Current - AC 1 Phase A | 120/240 | 120 / 240 |
| Voltage - 3 Phase V | 208, 220, 6, 440, 480 | 208, 220, 240, 416, 440, 480, 600 |
| Voltage - 1 Phase V | 120, 127, 139, 240, 254, 277 | 120, 127, 139, 240, 254, 277 |
| Circuit breaker (Main) A | 250 | 250 |
| Frequency Hz | 60 | 60 |
| Power factor 1 Phase cos Φ 1~ | 1 | 1 |
| Power factor 3 Phase cos Φ 3~ | 0.8 | 0.8 |
| Sound level (LwA) at Prime (23 ft / 7 m) dB(A) | 69.4 | 69.4 |
| Receptacles -20 Amp GFI Duplex | 2 | 2 |
| Receptacles -50 Amp Twist Lock | 3 | 3 |
Engine / Motor | ||
| Engine / Motor | Liquid-Cooled, 4 Cylinders | Liquid-Cooled, 4 Cylinders |
| Engine / Motor manufacturer | Cummins QSB5-G11 | Cummins QSB5-G11 |
| Emissions Certified | Tier 4 Final | Tier 4 Final |
| Displacement in³ | 275 | 275 |
| Operating performance ISO 3046 hp | 169 | 169 |
| at rpm rpm | 1,800 | 1,800 |
| Coolant Capacity US qt | 24 | 24 |
| Engine oil Capacity US qt | 15.3 | 14.5 |
| Fuel type | Diesel | Diesel |
| Fuel consumption (Prime Load) US gal/h | 5.8 | 5.8 |
| Tank capacity -Fuel US gal | 187.6 | 187.6 |
| Quantity (Battery) | 2 | 2 |
| Battery V | 12 | 12 |
| Generator model | Mecc AlteBrushless w/ AVR | Mecc Alte Brushless w/ AVR |
| Voltage control No Load to Full Load +/- % | 1 | 1 |
| Voltage control Steady State +/- % | 0.2 | 0.2 |
| Generator insulation (class) | H | H |
| Frequency (Generator Speed) Hz | 60 | 60 |
| Runtime at 100% Prime Load h | 30.1 | 30.1 |
| Runtime at 75% Prime Load h | 38.8 | 38.8 |
| Runtime at 50% Prime Load h | 53.3 | 53.3 |
| Runtime at 25% Prime Load h | 82.3 | 82.3 |
| Exhaust after treatment | AUS 32 | AUS 32 |
| DEF Consumption US gal/h | 0.26 | 0.26 |
| DEF Tank Capacity US gal | 8.7 | 8.7 |
| Runtime h | 31.4 | 31.4 |
