- Large capacity fuel tank allows for long run times and continuous lighting. Equipped with efficient generator provides 18.6 kW of total power with 14.2 kW of export power available with MH lights on and 17.4 kW with LED lights on.
- Range of motion of light fixtures allows the user to aim the lights vertically or horizontally without blocking each other. Metal halide or LED lamps provide lighting for any application. LED lights are maintenance free and designed to last the life of the machine.
- Electric winch standard eliminates cost of maintenance and fluid associated with a hydraulic powered mast.
- Multiple power outlets for both 120V and 120/240V ensure maximum power convenience on the job site.
- Cold Weather Package and Fluid Containment standard on every model.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413526

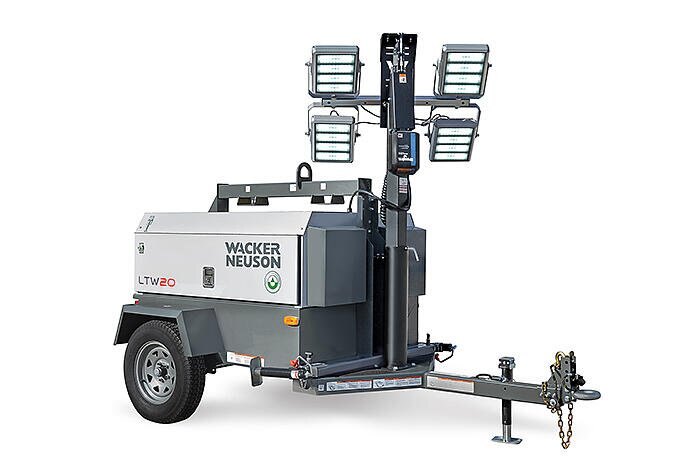

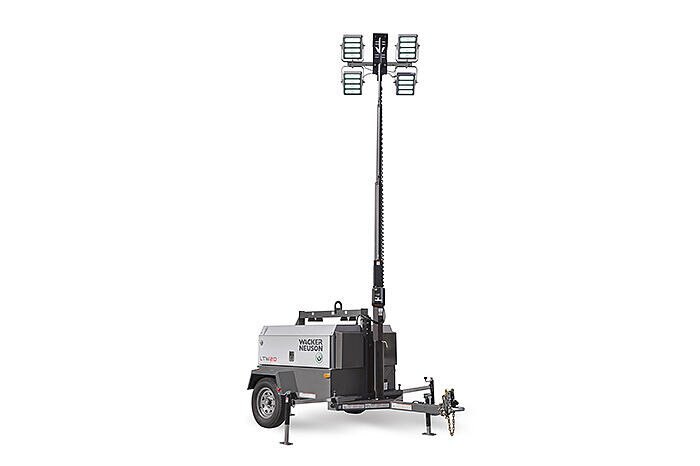

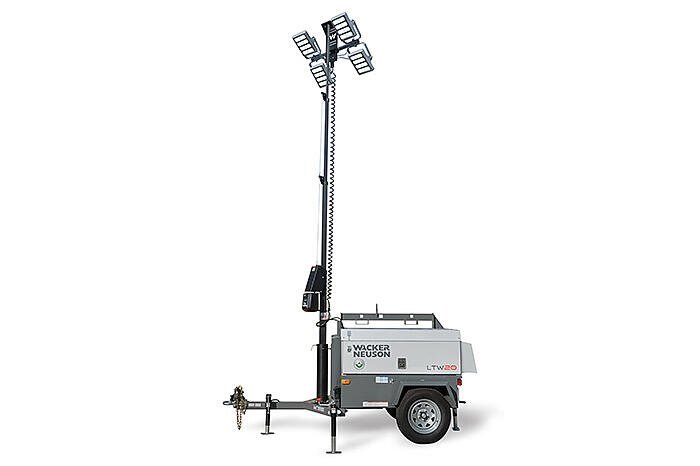

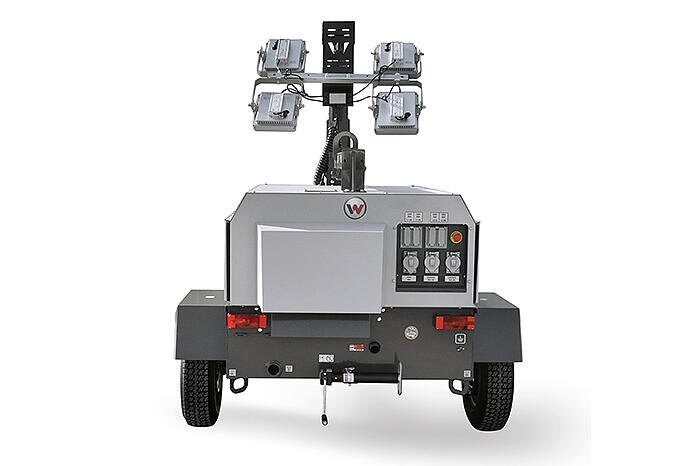

Wacker Neuson Light Towers - Wide Body, Vertical Mast
Call for Price
Overview
Specifications
light towers - wide body, vertical mast technical specifications
|
Light Towers - Wide Body, Vertical Mast - 20kW Generator and Long Run Time.
|
|
|
Model
Light Towers - Wide Body, Vertical Mast
Category Name
Lighting
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Light Towers - Wide Body, Vertical Mast Technical Specifications
Metric
| LTW 20Z1-Metal Halide | LTW 20Z1-LED | |
|---|---|---|
Operating data | ||
| L x W x H mm | 3330 x 1920x 2540 | 3330 x 1920 x 2540 |
| Operating weight kg | 1,565 | 1,565 |
| Shipping weight kg | 1,379 | 1,379 |
| Illumination coverage at 5 fc (54 lux) m² | 857 | 504 |
| Lamp type | Metal Halide | LED |
| Mast height m | 7 | 7 |
| Sound level (LwA) dB(A) | 71.2 | 71.2 |
| Power kW | 18.6 | 18.6 |
| Frequency Hz | 60 | 60 |
| Voltage V | 120 | 120 |
| Voltage V | 240 | 240 |
| Power factor cos Φ 1~ | 1 | 1 |
| Power factor cos Φ 3~ | 0.8 | 0.8 |
Engine / Motor | ||
| Generator model | Mecc Alte ECP28 VL4 C | Mecc Alte ECP28 VL4 C |
| Generator insulation (class) | H | H |
| Idle to full load % | 1 | 1 |
| Voltage control % | 0.5 | 0.5 |
| Engine / Motor manufacturer | Isuzu 4LE2T | Isuzu 4LE2T |
| Engine / Motor type | Diesel, Liquid Cooled | Diesel, Liquid Cooled |
| Fuel type | Diesel #2 - ULSD | Diesel #2 - ULSD |
| Displacement cm³ | 2,179 | 2,179 |
| Operating performance kW | 30 | 30 |
| at rpm rpm | 1,800 | 1,800 |
| Tank capacity Oil l | 10.4 | 10.4 |
| Tank capacity Fuel l | 215.8 | 215.8 |
| Fuel consumption Prime Load l/h | 5.97 | 5.97 |
| Runtime Prime Load h | 34.8 | 34.8 |
Imperial
| LTW 20Z1-Metal Halide | LTW 20Z1-LED | |
|---|---|---|
Operating data | ||
| L x W x H in | 131 x 76 100 | 131 x 76 x 100 |
| Operating weight lb | 3,450 | 3,450 |
| Shipping weight lb | 3,040 | 3,040 |
| Illumination coverage at 5 fc (54 lux) ft² | 9,320 | 5,420 |
| Lamp type | Metal Halide | LED |
| Mast height ft | 23 | 23 |
| Sound level (LwA) dB(A) | 71.2 | 71.2 |
| Power kW | 18.6 | 18.6 |
| Frequency Hz | 60 | 60 |
| Voltage V | 120 | 120 |
| Voltage V | 240 | 240 |
| Power factor cos Φ 1~ | 1 | 1 |
| Power factor cos Φ 3~ | 0.8 | 0.8 |
Engine / Motor | ||
| Generator model | Mecc Alte ECP28 VL4 C | Mecc Alte ECP28 VL4 C |
| Generator insulation (class) | H | H |
| Idle to full load % | 1 | 1 |
| Voltage control % | 0.5 | 0.5 |
| Engine / Motor manufacturer | Isuzu 4LE2T | Isuzu 4LE2T |
| Engine / Motor type | Diesel, Liquid Cooled | Diesel, Liquid Cooled |
| Fuel type | Diesel #2 - ULSD | Diesel #2 - ULSD |
| Displacement in³ | 133 | 133 |
| Operating performance hp | 40 | 40 |
| at rpm rpm | 1,800 | 1,800 |
| Tank capacity Oil US qt | 11 | 11 |
| Tank capacity Fuel US gal | 57 | 57 |
| Fuel consumption Prime Load US gal/h | 1.58 | 1.58 |
| Runtime Prime Load h | 34.8 | 34.8 |
Model
Light Towers - Wide Body, Vertical Mast
Category Name
Lighting
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Quantity
0
