- Hydraulically operated five-section tower extends in ten seconds, increasing east of operation and uptime.
- Range of motion of light fixtures allows the user to aim the lights vertically or horizontally without blocking each other. Easily adjustable light fixtures equipped with a lockable T-handle, heat shield, and light aiming handle provides protection from the heat of the lamps.
- Large capacity fuel tank allows for long run times and continuous lighting.
- Multiple power outlets for both 120V and 120/240V ensure maximum power convenience on the job site. On 3-phase model, a 60A 120/208V, 3-phase receptacle is also available.
- Control panel features an electronic engine controller, main circuit breaker, individual light breakers and hour meter. Additional factory-installed options provide added versatility for unique applications.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413527

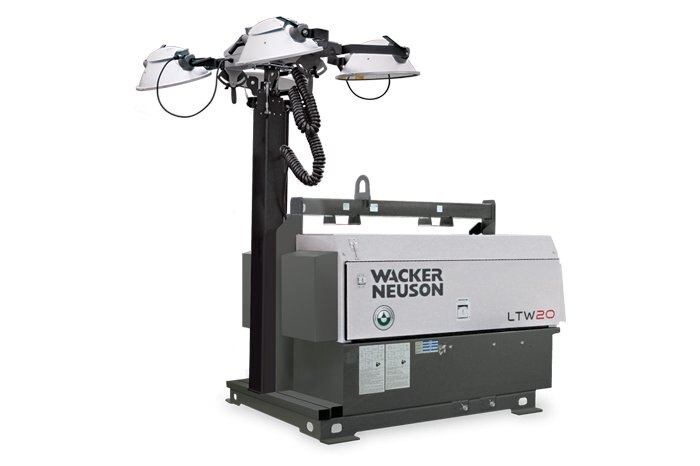

Wacker Neuson Light Towers - Wide Body, Skid, Vertical Mast (Standard)
Call for Price
Overview
Specifications
light towers - wide body, skid, vertical mast (standard) technical specifications
|
Light Towers - Wide Body, Skid, Vertical Mast (Standard) - Excellent lighting and increase uptime
|
|
|
Model
Light Towers - Wide Body, Skid, Vertical Mast (Standard)
Category Name
Lighting
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Light Towers - Wide Body, Skid, Vertical Mast (Standard) Technical Specifications
Metric
| LTW8K-VS | LTW20Z1-VS | LTW20Z3-VS | |
|---|---|---|---|
Operating data | |||
| L x W x H mm | 2642 x 1448 x 2311 | 2642 x 1448 x 2311 | 2642 x 1448 x 2311 |
| Operating weight kg | 1,175 | 1,365 | 1,365 |
| Shipping weight kg | 989 | 1,179 | 1,179 |
| Illumination coverage @ 5 fc(54 lux) m² | 1,207 | 1,204 | 1,204 |
| Lamp type | Metal Halide | Metal Halide | Metal Halide |
| Mast height m | 7.4 | 7.4 | 7.4 |
| Sound level (LwA) dB(A) | 67.3 | 71.2 | 71.2 |
| Power Output kW | 8 | 18.6 | 19.5 |
| Frequency Hz | 60 | 60 | 60 |
| Voltage V | 120 / 240 | 120 / 240 | 120 |
| Power factor cos Φ 1~ | 1 | 1 | 1 |
| Power factor cos Φ 3~ | 0.8 | ||
Engine / Motor | |||
| Generator model | Mecc Alte LT3-160/4 | Mecc Alte ECO 28-VL/4 | Mecc Alte ECO 28-VL/4 |
| Generator insulation (class) | H | H | H |
| Idle to full load % | 10 | 1.5 | 1 |
| Voltage control Steady State % | 6 | 1 | 0.5 |
| Engine / Motor manufacturer | Kubota | Isuzu | Isuzu |
| Engine / Motor type | D1105-E3BG | 4LE2-NYGV02 | 4LE2-NYGV02 |
| Fuel type | Diesel #2 - ULSD | Diesel #2 - ULSD | Diesel #2 - ULSD |
| Displacement cm³ | 1,123 | 2,179 | 2,179 |
| Operating performance kW | 11.5 | 25.6 | 25.6 |
| at rpm rpm | 1,800 | 1,800 | 1,800 |
| Tank capacity Oil l | 5.1 | 8 | 8 |
| Tank capacity Fuel l | 215.8 | 215.8 | 215.8 |
| Fuel consumption @ Prime Load l/h | 2.97 | 5.97 | 5.97 |
| Runtime @ Prime Load h | 69.8 | 34.8 | 34.8 |
Imperial
| LTW8K-VS | LTW20Z1-VS | LTW20Z3-VS | |
|---|---|---|---|
Operating data | |||
| L x W x H in | 104 x 57 x 91 | 104 x 57 x 91 | 104 x 57 x 91 |
| Operating weight lb | 2,590 | 3,010 | 3,010 |
| Shipping weight lb | 2,180 | 2,600 | 2,600 |
| Illumination coverage @ 5 fc(54 lux) ft² | 12,960 | 12,960 | 12,960 |
| Lamp type | Metal Halide | Metal Halide | Metal Halide |
| Mast height ft | 24.4 | 24.4 | 24.4 |
| Sound level (LwA) dB(A) | 67.3 | 71.2 | 71.2 |
| Power Output kW | 8 | 18.6 | 19.5 |
| Frequency Hz | 60 | 60 | 60 |
| Voltage V | 120 / 240 | 120 / 240 | 120 |
| Power factor cos Φ 1~ | 1 | 1 | 1 |
| Power factor cos Φ 3~ | 0.8 | ||
Engine / Motor | |||
| Generator model | Mecc Alte LT3-160/4 | Mecc Alte ECO 28-VL/4 | Mecc Alte ECO 28-VL/4 |
| Generator insulation (class) | H | H | H |
| Idle to full load % | 10 | 1.5 | 1 |
| Voltage control Steady State % | 6 | 1 | 0.5 |
| Engine / Motor manufacturer | Kubota | Isuzu | Isuzu |
| Engine / Motor type | D1105-E3BG | 4LE2-NYGV02 | 4LE2-NYGV02 |
| Fuel type | Diesel #2 - ULSD | Diesel #2 - ULSD | Diesel #2 - ULSD |
| Displacement in³ | 68.5 | 133 | 133 |
| Operating performance hp | 15.4 | 34.3 | 34.3 |
| at rpm rpm | 1,800 | 1,800 | 1,800 |
| Tank capacity Oil US qt | 5.4 | 8.5 | 8.5 |
| Tank capacity Fuel US gal | 57 | 57 | 57 |
| Fuel consumption @ Prime Load US gal/h | 0.79 | 1.58 | 1.58 |
| Runtime @ Prime Load h | 69.8 | 34.8 | 34.8 |
