Wacker Neuson Diaphragm Pumps PDT2A

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Diaphragm Pumps

PDI pumps handle solids up to 41 mm and are therefore ideal for draining sludge and seepage areas.Diaphragm pumps from Wacker Neuson minimize blockage-related failures and allow for unsupervised operation. These pumps are characterized by a long service life combined with optimal performance.

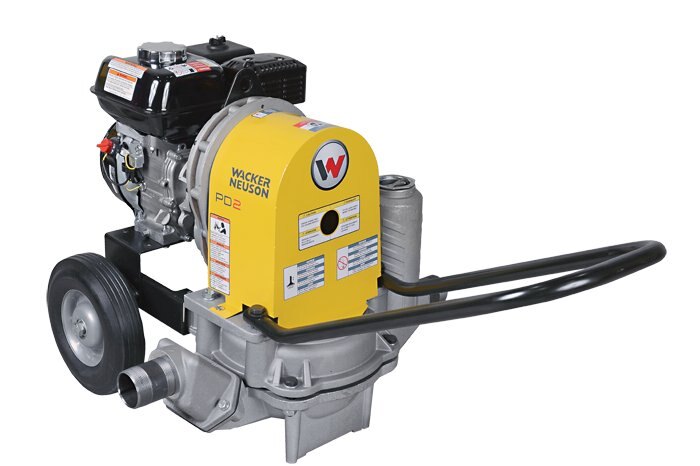

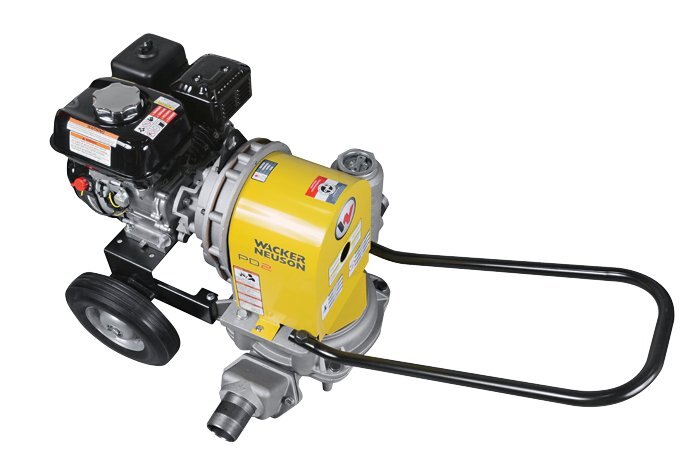

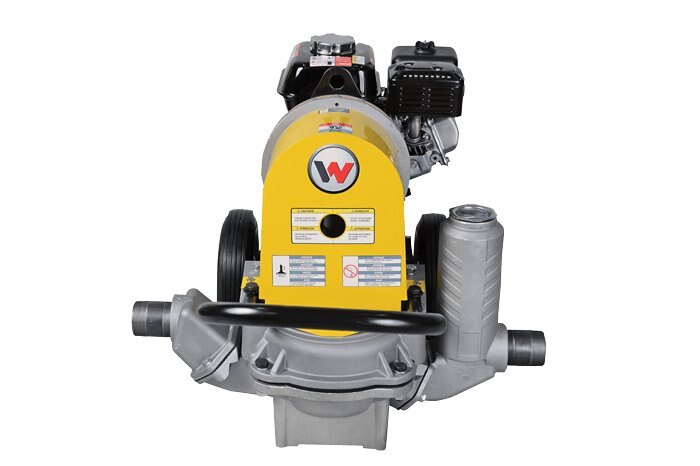

PDT2A - 2-inch diaphragm pumps for jobs no other pumps can handle

The PDT2A diaphragm trash pumps can move almost anything that flows. A 2-inch pump that can handle solids up to 1.5 inches (38mm) and up to 50 gpm (189 l/min), these pumps are ideal for moving water with mud, slurries and in seepage areas. Built with high quality component, you will be assured of many years of top performance and durability. Large solid rubber tires provide excellent traction and smooth rolling over rough terrain.

Aluminum alloy body with heavy-duty pump diaphragm provides a lightweight, low maintenance package that ensures long life.
Surge chamber on inlet side results in smooth pumping operation by absorbing pressure spikes while reducing wear.
Oil bath lubricated transmission ensures continuous lubrication to all parts of the gear transmission system, reducing both maintenance costs and lost production time.
Ductile iron crankcase provides maximum durability. Hardened forged gears extend pump life and provide efficient power transmission from the engine to the pump.
Straight through water flow design provides high production pumping capacity and less down time blockages.

Specifications

Model

PDT2A

Category Name

Generators

Year

2022

Sale Type

New

Manufacturer

Wacker Neuson

pdt2a technical specifications

Metric

Dimensions
L x W x H	996 x 564 x 589 mm
L x W x H Shipping	838 x 813 x 800 mm
Diameter Suction and Discharge	50 mm
Operating weight	59 kg
Shipping weight	75 kg

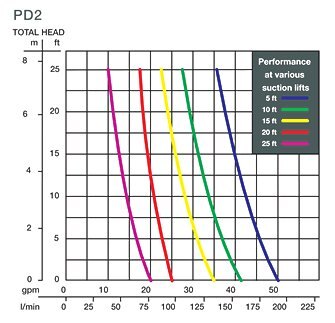

Operating data
Discharge Head	7.6 m
Discharge capacity	189 l/min
Solids diameter Max. Size	38 mm
Engine / Motor
Engine / Motor type	Air Cooled, Single Cylinder
Engine / Motor manufacturer	Honda
Engine / Motor	GX120UT2QX2
Displacement	118 cm³
RPM / speed Max. Engine	3,600 rpm
RPM / speed Operating	2,800 rpm
Power Max. Rated	2.6 kW
Power Rating Specification	SAE J1349
Engine oil	0.6 l
Fuel type	Gasoline
Fuel consumption	1.1 l/h
Tank capacity Fuel	2.5 l
Runtime	2.2 h

Imperial

Dimensions
L x W x H	39.2 x 22.2 x 23.2 in
L x W x H Shipping	33 x 32 x 31.5 in
Diameter Suction and Discharge	2 in
Operating weight	131 lb
Shipping weight	166 lb
Operating data
Discharge Head	25 ft
Discharge capacity	50 US gpm
Solids diameter Max. Size	1.5 in
Engine / Motor
Engine / Motor type	Air Cooled, Single Cylinder
Engine / Motor manufacturer	Honda
Engine / Motor	GX120UT2QX2
Displacement	7.2 in³
RPM / speed Max. Engine	3,600 rpm
RPM / speed Operating	2,800 rpm
Power Max. Rated	3.5 hp
Power Rating Specification	SAE J1349
Engine oil	0.65 US qt
Fuel type	Gasoline
Fuel consumption	0.3 US gal/h
Tank capacity Fuel	2.6 US qt
Runtime	2.2 h
