- Aluminum alloy body with heavy-duty pump diaphragm provides a lightweight, low maintenance package that ensures long life.
- Surge chamber on inlet side results in smooth pumping operation by absorbing pressure spikes while reducing wear.
- Oil bath lubricated transmission ensures continuous lubrication to all parts of the gear transmission system, reducing both maintenance costs and lost production time.
- Ductile iron crankcase provides maximum durability. Hardened forged gears extend pump life and provide efficient power transmission from the engine to the pump.
- Straight through water flow design provides high production pumping capacity and less down time blockages.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413532

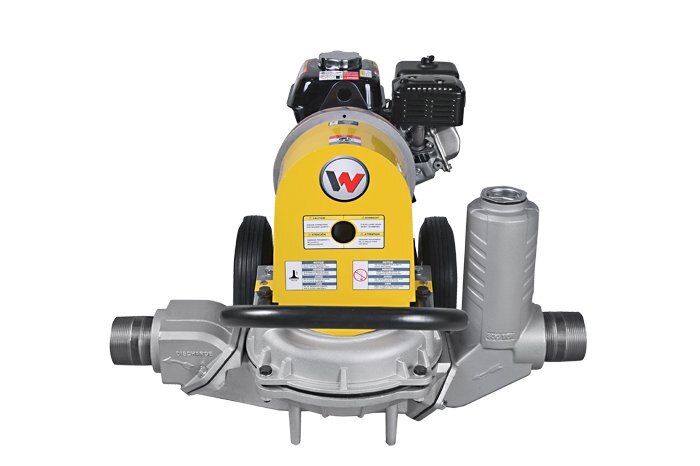

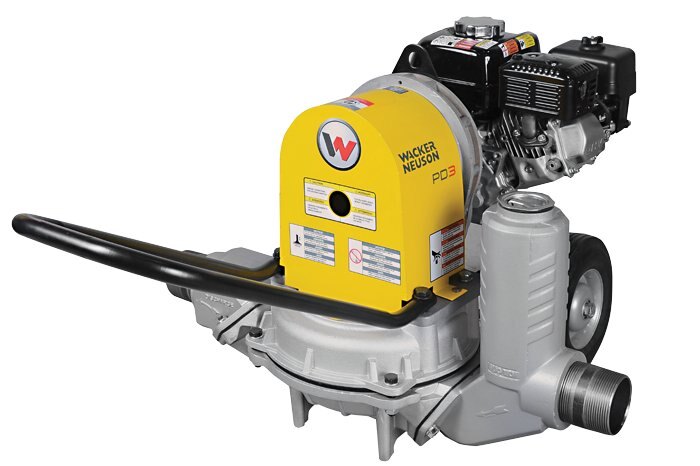

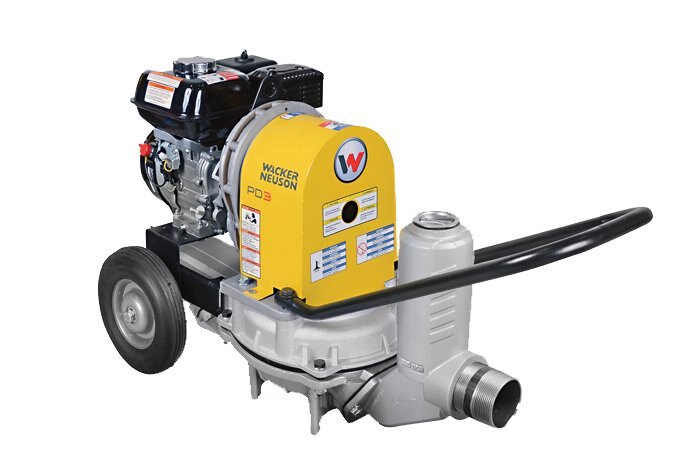

Wacker Neuson Diaphragm Pumps PDT3A
Call for Price
Overview
Specifications
pdt3a technical specifications
|
Diaphragm Pumps
PDI pumps handle solids up to 41 mm and are therefore ideal for draining sludge and seepage areas.Diaphragm pumps from Wacker Neuson minimize blockage-related failures and allow for unsupervised operation. These pumps are characterized by a long service life combined with optimal performance. |
|
PDT3A - 3-inch diaphragm pumps moves what other pumps can't handle
|
|
|
Model
PDT3A
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
PDT3A Technical Specifications
Metric
| PDT 3A | PDI 3A | |
|---|---|---|
Dimensions | ||
| L x W x H mm | 1067 x 673 x 589 | 1067 x 457 x 589 |
| L x W x H Shipping mm | 838 x 813 x 800 | 838 x 813 x 800 |
| Diameter Suction and Discharge mm | 75 | 75 |
| Operating weight kg | 63 | 63 |
| Shipping weight kg | 79 | 79 |

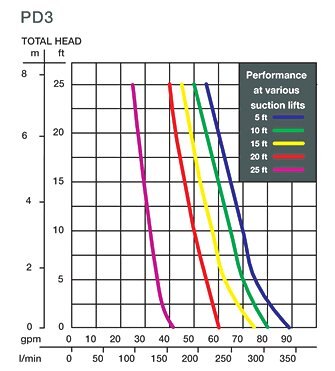

Operating data | ||
| Discharge Head m | 7.6 | 7.6 |
| Discharge capacity l/min | 333 | 333 |
| Suction height Lift m | 7.6 | 7.6 |
| Solids diameter Max. Size mm | 41 | 41 |
Engine / Motor | ||
| Engine / Motor type | Air Cooled, Single Cylinder | Air Cooled, Single Cylinder |
| Engine / Motor manufacturer | Honda | Honda |
| Engine / Motor | GX120K1QX | GX120K1QX |
| Displacement cm³ | 118 | 118 |
| RPM / speed Max. Engine rpm | 3,600 | 3,600 |
| RPM / speed Operating rpm | 2,800 | 2,800 |
| Power Max. Rated kW | 2.6 | 2.6 |
| Power Rating Specification | SAE J1349 | SAE J1349 |
| Engine oil l | 0.6 | 0.6 |
| Fuel type | Gasoline | Gasoline |
| Fuel consumption l/h | 1.1 | 1.1 |
| Tank capacity Fuel l | 2.5 | 2.5 |
| Runtime h | 2.2 | 2.2 |
Imperial
| PDT 3A | PDI 3A | |
|---|---|---|
Dimensions | ||
| L x W x H in | 42 x 26.5 x 23.2 | 42 x 18 x 23.2 |
| L x W x H Shipping in | 33 x 32 x 31.5 | 33 x 32 x 31.5 |
| Diameter Suction and Discharge in | 3 | 3 |
| Operating weight lb | 140 | 140 |
| Shipping weight lb | 175 | 175 |
Operating data | ||
| Discharge Head ft | 25 | 25 |
| Discharge capacity US gpm | 88 | 88 |
| Suction height Lift ft | 25 | 25 |
| Solids diameter Max. Size in | 1.625 | 1.625 |
Engine / Motor | ||
| Engine / Motor type | Air Cooled, Single Cylinder | Air Cooled, Single Cylinder |
| Engine / Motor manufacturer | Honda | Honda |
| Engine / Motor | GX120K1QX | GX120K1QX |
| Displacement in³ | 7.2 | 7.2 |
| RPM / speed Max. Engine rpm | 3,600 | 3,600 |
| RPM / speed Operating rpm | 2,800 | 2,800 |
| Power Max. Rated hp | 3.5 | 3.5 |
| Power Rating Specification | SAE J1349 | SAE J1349 |
| Engine oil US qt | 0.65 | 0.65 |
| Fuel type | Gasoline | Gasoline |
| Fuel consumption US gal/h | 1.2 | 1.2 |
| Tank capacity Fuel US qt | 2.6 | 2.6 |
| Runtime h | 2.2 | 2.2 |
