- Cast iron impeller and volute are wear resistant for long life and minimal service.
- Pump out vanes on back of impeller reduce debris accumulation and downtime while allowing greater productivity.
- Carbon ceramic mechanical seal teamed with reliable four-cycle engine with low oil shutdown provides for increased operating life.
- High strength lightweight die cast aluminum housing increases the years of trouble-free pump life. A heavy duty protective frame provides convenient carrying handles while adding extra protection for the pump.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413535

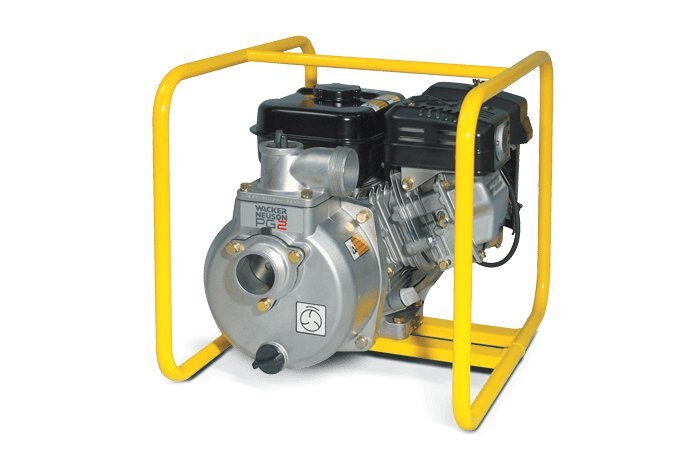

Wacker Neuson Dewatering Pumps PG2A
Call for Price
Overview
Specifications
pg2a technical specifications
|
Dewatering Pumps
Are you looking for a compact dewatering pump with self-priming mechanism, ideal for smaller and short-term applications? These high-performance pumps from the PG series are designed for conveying water not containing large solids (Ø up to 6.5 mm). The dewatering pumps are equipped with a cast iron impeller, which is easy to adjust and at the same time has a long service life and is very easy to service. |
|
PG2A - 2-inch dewatering pump for clear water removal
|
|
|
Model
PG2A
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
PG2A Technical Specifications
Metric
Dimensions | |
| L x W x H | 481 x 377 x 394 mm |
| L x W x H Shipping | 506 x 402 x 424 mm |
| Diameter Suction and Discharge | 50 mm |
| Operating weight | 25 kg |
| Shipping weight | 26 kg |

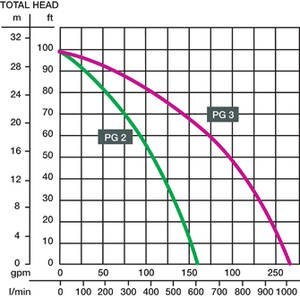

Operating data | |
| Discharge Head | 27 m |
| Discharge capacity | 639 l/min |
| Suction height Lift | 7.6 m |
| Solids diameter Max. Size | 6.5 mm |
Engine / Motor | |
| Engine / Motor type | Air Cooled, Single Cylinder |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX120W1B4 |
| Displacement | 118 cm³ |
| RPM / speed Max. Engine | 3,600 rpm |
| RPM / speed Operating | 3,600 rpm |
| Power Max. Rated | 2.6 kW |
| Power Rating Specification | SAE J1349 |
| Engine oil Capacity | 0.6 l |
| Fuel type | Gasoline |
| Fuel consumption | 1.3 l/h |
| Tank capacity Fuel | 2.5 l |
| Runtime | 1.9 h |
Imperial
Dimensions | |
| L x W x H | 18.9 x 14.8 x 15.5 in |
| L x W x H Shipping | 19.9 x 15.8 x 16.7 in |
| Diameter Suction and Discharge | 2 in |
| Operating weight | 55 lb |
| Shipping weight | 57 lb |
Operating data | |
| Discharge Head | 88 ft |
| Discharge capacity | 169 US gpm |
| Suction height Lift | 25 ft |
| Solids diameter Max. Size | 0.25 in |
Engine / Motor | |
| Engine / Motor type | Air Cooled, Single Cylinder |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GX120W1B4 |
| Displacement | 7.2 in³ |
| RPM / speed Max. Engine | 3,600 rpm |
| RPM / speed Operating | 3,600 rpm |
| Power Max. Rated | 3.5 hp |
| Power Rating Specification | SAE J1349 |
| Engine oil Capacity | 0.63 US qt |
| Fuel type | Gasoline |
| Fuel consumption | 0.34 US gal/h |
| Tank capacity Fuel | 2.6 US qt |
| Runtime | 1.9 h |
Model
PG2A
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
Quantity
0
