Overview

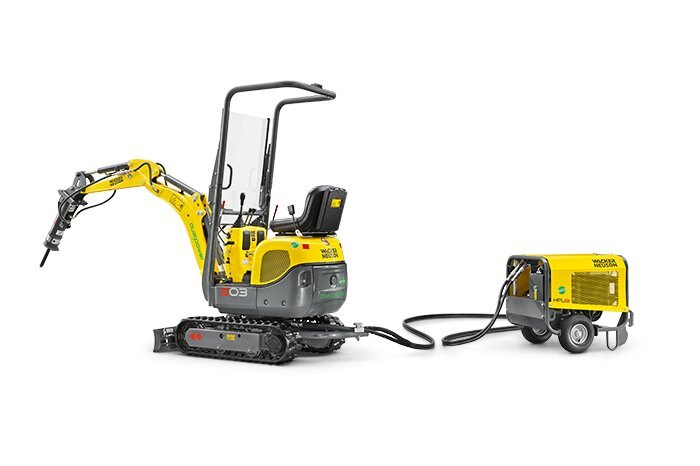

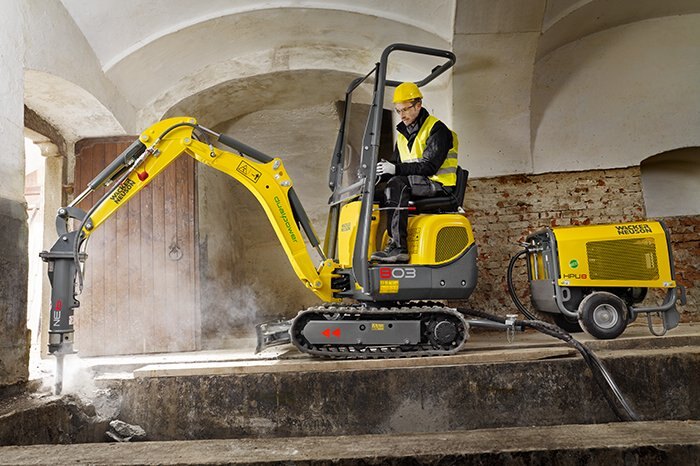

803 dual power - 1 excavator, 2 drives

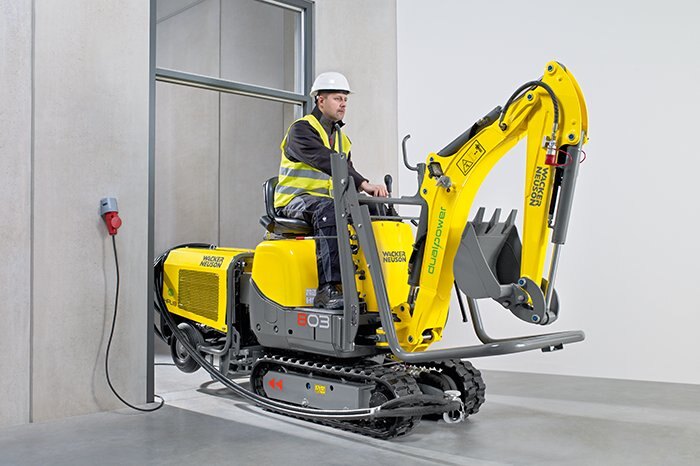

Wacker Neuson dual power is the innovative solution for an emission-free auxiliary drive. In addition to the integrated diesel engine, the electro-hydraulic unit HPU8 can be connected to the 803 compact excavator if necessary. The HPU8 is technically tailor-made to the requirements of the excavator 803. In this way, the excavator can be operated electrically and emission-free if necessary. The handling is easy: The generator is connected to the undercarriage via Plug & Play – done.
  • Two drive options: Diesel and electro-hydraulic drive

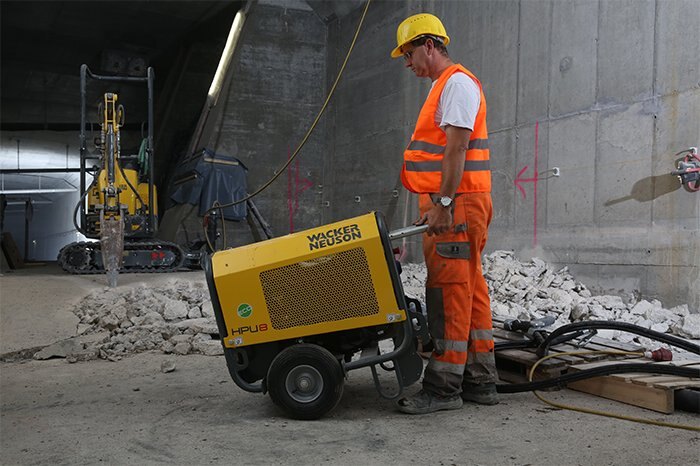

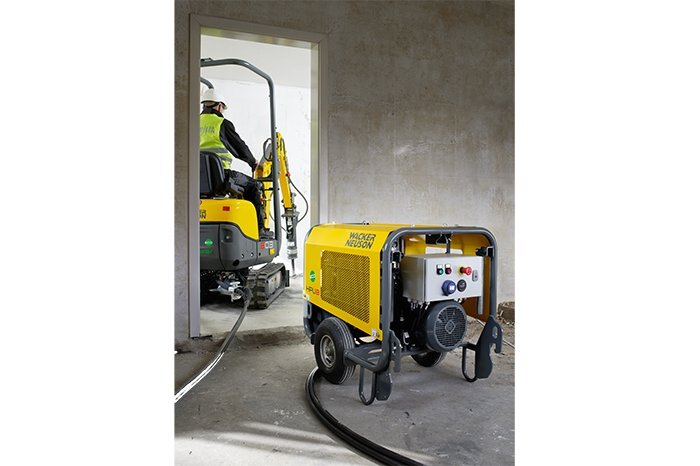

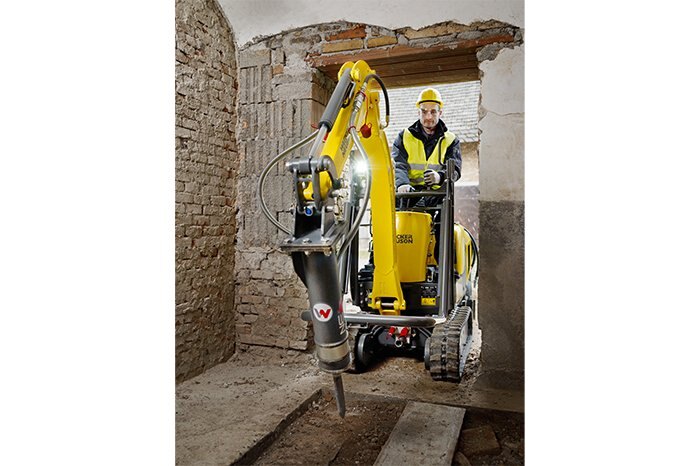

  • Emission-free if necessary: For work indoors and in sensitive environments

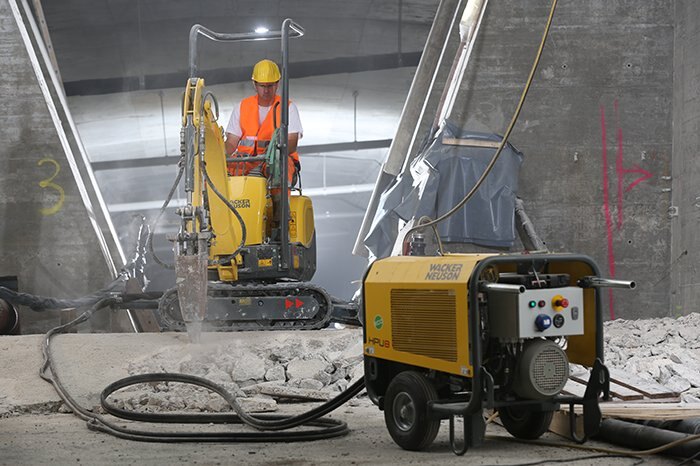

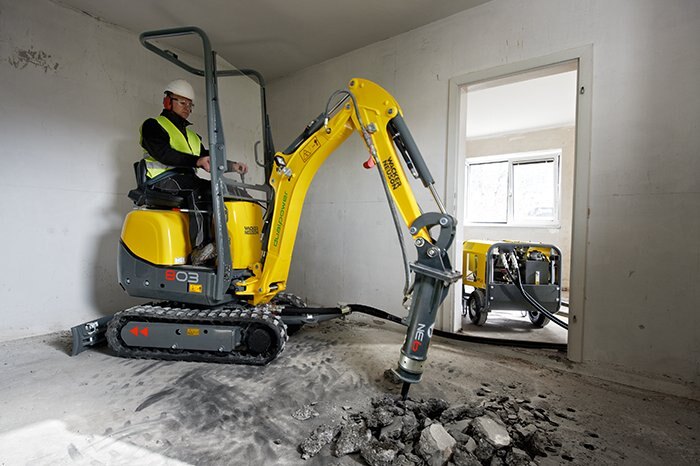

  • Consistent performance with both drives – even in breaker operation.
  • Unrestricted work movements: Rotatable 360° with both drives
  • Easy handling: Excavator weight, dimensions and machine center of gravity are unchanged
Specifications
Model
803 dual power
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Wacker Neuson Tracked Conventional Tail Excavators 803 dual power
Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Easy to transport:

Two openings are inset in the dozer blade in which the HPU8 can be suspended for transport.
Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Easy loading:

a sturdy lifting point for crane loading is attached on the connection lance.
Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Compact and practical:

The loading dimensions of 930 x 720 x 1,000 mm are ideal. And four sturdy tie-down lugs ensure rapid transport.
Wacker Neuson Tracked Conventional Tail Excavators 803 dual power Sophisticated design:

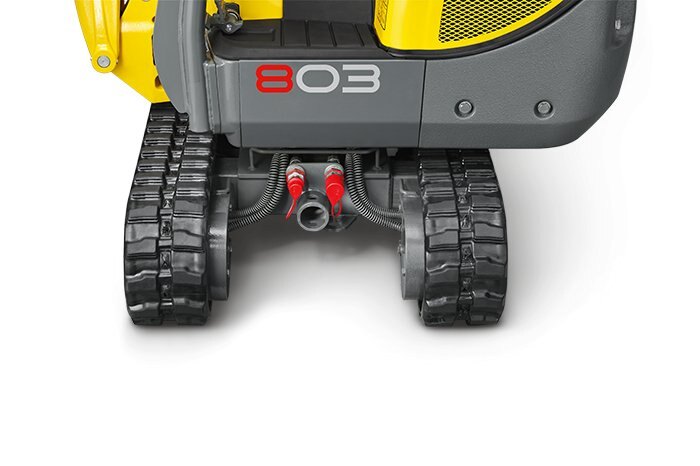

Simple Plug & Play connection on the undercarriage. The lifting point bracket is used as a connection lance and guide for the hydraulic hoses of the HPU8 at the same time. With a few hand movements, it is removed from the generator and connected to the excavator. The positioning on the undercarriage means 360° freedom of movement with the excavator.



dual power technical specifications
Metric

803 excavator with dual power option

Operating data
Shipping weight min. 955 kg
Operating weight  1,052 - 1,112 kg
Biting force max.  4.5 kN
Breakout force max.  8.9 kN
Digging depth max.  1,763 mm
Dumping height  2,012 - 2,035 mm
Digging radius max.  3,090 mm
L x W x H  2,828 x 700 x 2,261 mm

Engine / Motor
Engine / Motor manufacturer  Yanmar
Engine / Motor type  3TNV74F
Engine / Motor  Liquid-cooled, 3-cylinder diesel engine
Displacement  993 cm³
RPM / speed  2,500 rpm
Engine performance according to ISO 11.5 kW
Battery  20 Ah
Fuel tank capacity  7 l

Hydraulic system
Duty pump  Gear pumps
Max. flow rate  10.7 + 10.7 l/min
Operating pressure for working and driving hydraulics 170 bar
Operating pressure Slewing gear 70 bar
RPM / speed Revolving superstructure 8 rpm
Hydraulic oil tank  14 l

Undercarriage
Travel speed  1.8 km/h
Chain width  180 mm
Ground clearance  130 mm

Dozer Blade
Width min. 700 mm
Height  200 mm
Stroke - Above ground 197 mm
Stroke - Below ground 174 mm

Sound level
Sound level (LwA) according to 2000/14/EC 93 dB(A)
Cabin - specified sound pressure level LpA  77 dB(A)

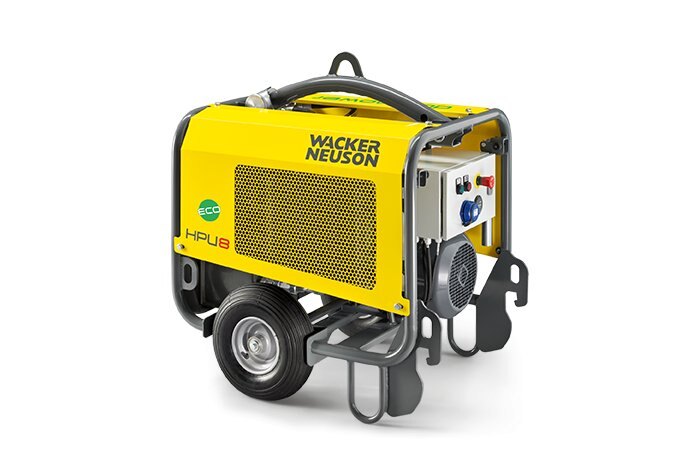

Electro-hydraulic unit HPU 8

Operating data

Engine / Motor
Engine / Motor  3-phase electric motor
Engine performance  7.5 kW
Voltage  480 V
Input current  16 A
Frequency  60 Hz

Hydraulic system
Flow rate  20 l/min
Operating pressure  190 bar
RPM / speed  1,728 rpm
Hydraulic oil tank  9 l
Hose  12 m


Imperial

803 excavator with dual power option

Operating data
Shipping weight min. 2,105 lb
Operating weight  2,319 - 2,452 lb
Biting force max.  1,012 lbf
Breakout force max.  2,001 lbf
Digging depth max.  69.41 in
Dumping height  79.2 - 80.1 in
Digging radius max.  121.7 in
L x W x H  111.3 x 27.6 x 89 in

Engine / Motor
Engine / Motor manufacturer  Yanmar
Engine / Motor type  3TNV74F
Engine / Motor  Liquid-cooled, 3-cylinder diesel engine
Displacement  60.57 in³
RPM / speed  2,500 rpm
Engine performance according to ISO 15.41 hp
Battery  20 CCA
Fuel tank capacity  1.8 US gal

Hydraulic system
Duty pump  Gear pumps
Max. flow rate  2.83 + 2.83 US gpm
Operating pressure for working and driving hydraulics 2,466 psi
Operating pressure Slewing gear 1,015 psi
RPM / speed Revolving superstructure 8 rpm
Hydraulic oil tank  3.7 US gal

Undercarriage
Travel speed  1.1 mph
Chain width  7.1 in
Ground clearance  5.1 in

Dozer Blade
Width min. 27.6 in
Height  7.9 in
Stroke - Above ground 7.76 in
Stroke - Below ground 6.85 in

Sound level
Sound level (LwA) according to 2000/14/EC 93 dB(A)
Cabin - specified sound pressure level LpA  77 dB(A)

Electro-hydraulic unit HPU 8

Operating data

Engine / Motor
Engine / Motor  3-phase electric motor
Engine performance  10 hp
Voltage  480 V
Input current  16 A
Frequency  60 Hz

Hydraulic system
Flow rate  5.2 US gpm
Operating pressure  2,756 psi
RPM / speed  1,728 rpm
Hydraulic oil tank  2.4 US gal
Hose  39.4 ft
dual power dimensions

803 dual power Dimensions

Metric

Wacker Neuson Tracked Conventional Tail Excavators 803 dual power

A* Height 2,261 mm
A Height 1,427 mm
B Width - Cab 730 mm
B Width - Undercarriage retracted 700 mm
B Width - Undercarriage extended 860 mm
C Transport length 2,828 mm
D Digging depth max. 1,763 mm
E Insertion depth 1,320 mm
F Insertion height 2,863 mm
G Dump height max. 2,012 mm
H Digging radius max. 3,090 mm
I Range 3,028 mm
J Rear swivel radius 747 mm
K Arm displacement to centre of bucket, right side 245 mm
K Arm displacement to centre of bucket, left side 283 mm
L Lift height - Above ground 197 mm
M Scraping depth - Below ground 178 mm
N Length - Track 1,220 mm
O Turning angle - Boom system to the right 56 °
P Turning angle - Boom system to the left 55 °
Q Chain width 180 mm
R Boom slewing radius 1,085 mm
803 dual power Dimensions
Imperial
Wacker Neuson Tracked Conventional Tail Excavators 803 dual power
A* Height 89 in
A Height 56.2 in
B Width - Cab 28.7 in
B Width - Undercarriage retracted 27.6 in
B Width - Undercarriage extended 33.9 in
C Transport length 111.3 in
D Digging depth max. 69.4 in
E Insertion depth 52 in
F Insertion height 112.7 in
G Dump height max. 79.2 in
H Digging radius max. 121.7 in
I Range 119.3 in
J Rear swivel radius 29.4 in
K Arm displacement to centre of bucket, right side 9.6 in
K Arm displacement to centre of bucket, left side 11.1 in
L Lift height - Above ground 7.8 in
M Scraping depth - Below ground 7 in
N Length - Track 48 in
O Turning angle - Boom system to the right 56 °
P Turning angle - Boom system to the left 55 °
Q Chain width 7.1 in
R Boom slewing radius 42.7 in
dual power options

803 dual power Options

Of course, you can also configure your product based on the following options:

Cabin

  • Splinter protection

Hydraulic

  • Biological oil Panolin
  • Auxiliary hydraulic double action
  • BP-Biohyd SE46
  • Piping for auxiliary hydraulic

Painting

  • Special paint machine RAL (for parts in yellow only)
  • Special paint machine no RAL (for parts in yellow only)

Security

  • Security 24 C (2000)
  • Security 36 C (3000)
  • Security 48 C (4000)
  • Security 60 C (5000)

Miscellaneous

  • Fluid Film (Conservation)
  • EquipCare
  • Driving signal
  • Service valve

Assambled Attachment

  • Mechanical quick hitch system MS01
