Stock #  1

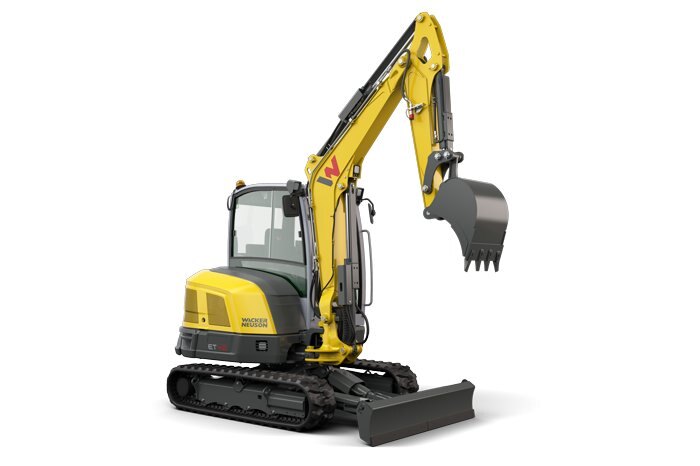

Wacker Neuson Tracked Conventional Tail Excavators ET42

  • Wacker Neuson Tracked Conventional Tail Excavators ET42
  • Wacker Neuson Tracked Conventional Tail Excavators ET42
  • Wacker Neuson Tracked Conventional Tail Excavators ET42
  • Wacker Neuson Tracked Conventional Tail Excavators ET42
  • Wacker Neuson Tracked Conventional Tail Excavators ET42
  • Wacker Neuson Tracked Conventional Tail Excavators ET42
In Stock
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

ET42 - Innovative excavator offers power and performance

The ET42 tracked excavator offers large machine features in a smaller package. This 4.0-ton class machine is designed to assure that the performance and features offered meet the demands of the operator. Key innovations include enhanced visibility, operator comfort features and a linkage system that offers greater digging depth and dumping height, all contributing to a productive, high performing excavator.
  • Three-point kinematic bucket linkage system enables a 200-degree bucket rotation for excellent breakout force, greater digging depth and dumping height
  • Low profile hood and large windows provide an exceptional view the front of both tracks and the offset boom provides a complete view of the boom, attachment and work area
  • Load Sensing Flow Sharing system allows consistent and precise control regardless of load and offers comfortable and fatigue-free joystick control
  • Fuel efficient 46-hp Perkins diesel engine offers class-leading power and performance
Specifications
Model
ET42
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Tracked Conventional Tail Excavators ET42 Precise work results with Load Sensing Flow Sharing

  • Load Sensing Flow Sharing allows precise control regardless of the load to be moved.
  • The machine adapts to the load and the joystick movements remain the same for the operator.

Wacker Neuson Tracked Conventional Tail Excavators ET42 Powerful hydraulics for versatile applications

  • With the ET42’s four auxiliary control circuits, versatile attachments can be used. With these, the mini-excavator can be applied for many different uses.
  • Attachments can be quickly changed thanks to the new pressure release switch.
  • The mini-excavator can be used at ambient temperatures of up to 45 degrees without compromising performance.

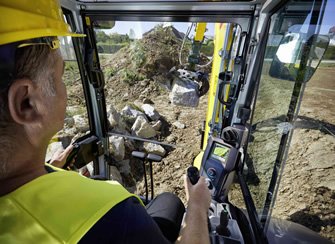

Wacker Neuson Tracked Conventional Tail Excavators ET42 Comfortable operation and optimum visibility

  • The intuitive operating concept of the ET42 allows easy and comprehensive control of the excavator.
  • Using a joystick, 3.5-inch display, Jog Dial and keypad, you can operate the machine, control the auxiliary hydraulics, or set oil levels. A 7-inch display is an available option.
  • Cab offers standard air conditioning and the unique four position windshield provides fresh air and easy communication on the job site.
  • The windshield wipers and their wipe direction were adjusted such as to prevent any visibility restrictions for the operator.
  • The Bluetooth hands-free system (optional) and USB charge function round out the utmost comfort.

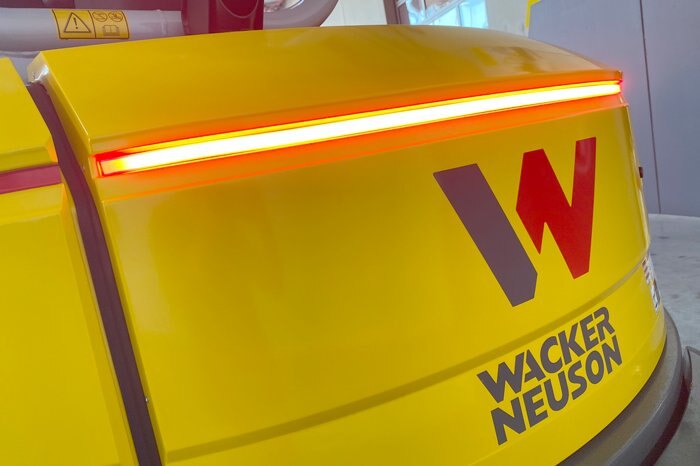

Wacker Neuson Tracked Conventional Tail Excavators ET42 Active Working Signal for even greater safety

  • Workers on the construction site can tell if the excavator is in operation thanks to the Active Working Signal (AWS) attached to the engine hood.
  • The AWS lights up red when the joystick support is pressed down and the excavator is ready for application.

Wacker Neuson Tracked Conventional Tail Excavators ET42 Low-emission, powerful engine

  • The ET42 is equipped with a powerful diesel engine with integrated DPF (diesel particulate filter). The engine fulfills the standards of exhaust emissions stage 5 and thus ensures minimum emission of pollutants.
  • Due to the thermal management developed by Wacker Neuson, not only is the service life of the diesel engine increased, but the performance of the cabin heating as well.
  • The exhaust system, pointed upwards, minimizes potential injury to persons and damage to objects.
  • The ET42 is also fitted with a large engine hood. This makes the servicing points easy to access.

Wacker Neuson Tracked Conventional Tail Excavators ET42 Well protected cylinder

  • The lifting arm cylinder is protected from damage by a piston rod protector made of synthetic material.  This saves repair costs and time.
  • Protection is also optionally available for the dipper stick and dipper cylinder.

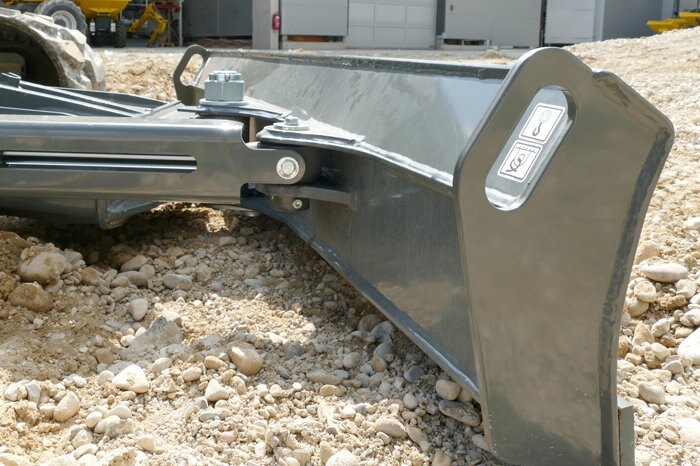

Wacker Neuson Tracked Conventional Tail Excavators ET42 Swiveling dozer blade and flawless stability

  • When backfilling, the machine doesn’t have to be reset as often, as the dozer blade can be swiveled to a straight position or up to 25 degrees to the left or right (optional).
  • In the floating position, the dozer blade applies constant force on the cutting edge. This way, the blade position has to be adjusted less often.

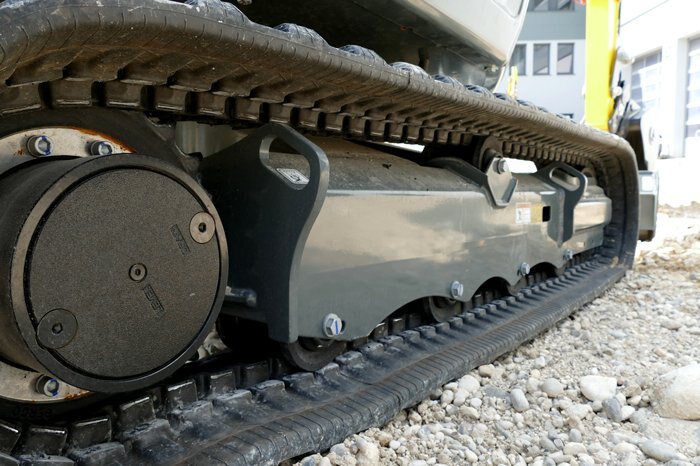

  • The external track rollers give the machine a high degree of stability, especially for lifting heavy loads.



technical specifications

ET42 Technical specifications

Metric

Operating data
Shipping weight  3,817 - 4,609 kg
Operating weight  4,032 - 4,824 kg
Biting force max. kurzer Löffelstiel 20.8 kN
Breakout force max. Löffelschneide (IS= 6015), fix verbolzt + High Power TL 43.8 kN
Digging depth max.  3,544 mm
L x W x H  5,146 x 1,750 x 2,494 mm

Engine / Motor
Engine / Motor manufacturer  Perkins diesel engine
Engine / Motor type  403J-E17T
Engine / Motor  Water-cooled 3-cylinder turbo engine
Emission standards stage  5
Displacement  1,663 cm³
RPM / speed  2,000 rpm
Engine performance  32.5 kW
Battery  77 Ah
Fuel tank capacity  80 l
Voltage  12 V

Hydraulic system
Duty pump  1 axial piston pump
Flow rate Max. 90 l/min
Operating pressure for working and driving hydraulics 245 bar
Operating pressure Slewing gear 206 bar
RPM / speed Revolving superstructure 9 rpm
Hydraulic oil tank  50 l

Undercarriage
Travel speed Max. 4.8 km/h
Chain width  350 mm
Ground clearance  300 mm

Dozer Blade
Width  1,750 mm
Height  345 mm
Stroke Above subgrade 420 mm
Stroke Below subgrade 520 mm

Sound level
Sound level (LwA)  97 dB(A)
Cabin - specified sound pressure level LpA  76 dB(A)

Imperial

Operating data
Shipping weight  8,414.96 - 10,161 lb
Operating weight  8,888.95 - 10,634.99 lb
Biting force max. kurzer Löffelstiel 4,676.03 lbf
Breakout force max. Löffelschneide (IS= 6015), fix verbolzt + High Power TL 9,846.63 lbf
Digging depth max.  139.63 in
L x W x H  202.75 x 68.95 x 98.26 in

Engine / Motor
Engine / Motor manufacturer  Perkins diesel engine
Engine / Motor type  403J-E17T
Engine / Motor  Water-cooled 3-cylinder turbo engine
Emission standards stage  5
Displacement  101.44 in³
RPM / speed  2,000 rpm
Engine performance  43.55 hp
Battery  77 Ah
Fuel tank capacity  21.14 US gal
Voltage  12 V

Hydraulic system
Duty pump  1 axial piston pump
Flow rate Max. 23.78 US gpm
Operating pressure for working and driving hydraulics 3,553.48 psi
Operating pressure Slewing gear 2,987.82 psi
RPM / speed Revolving superstructure 9 rpm
Hydraulic oil tank  13.21 US gal

Undercarriage
Travel speed Max. 2.98 mph
Chain width  13.79 in
Ground clearance  11.82 in

Dozer Blade
Width  68.95 in
Height  13.59 in
Stroke Above subgrade 16.55 in
Stroke Below subgrade 20.49 in

Sound level
Sound level (LwA)  97 dB(A)
Cabin - specified sound pressure level LpA  76 dB(A)
