Stock #  1

Wacker Neuson Tracked Conventional Tail Excavators ET90

  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
  • Wacker Neuson Tracked Conventional Tail Excavators ET90
In Stock
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

ET90 - offers performance and fuel economy

The minimum swing radius ET90 track excavator offers one of the smoothest and most powerful hydraulic systems available in its class. The 9-ton excavator comes with an air conditioned cab and a choice of short or long dipperstick and is powered by an economical 73.7-hp Deutz Tier 4 Final engine. The ET90 comes standard with rubber tracks, dozer blade and boom-mounted working light. Hydraulic system features an oil cooler, pilot controls and dipperstick-mounted auxiliary connections for single and bidirectional attachments. An in-cab electronic control pattern changeover is standard.
  • The unit’s compact size, high performance and low center of gravity allow this excavator to work in a variety of applications, especially in confined areas
  • The three-pin bucket linkage system provides best-in-class breakout force of 16,636 pounds of force and optimizes the bucket’s angle of rotation for digging in tough conditions and to keep the load secure in the bucket before dumping
  • Large ergonomically cab design offers operator comfort with 3.5-inch color LCD display, air-ride seat and air conditioning
  • Unmatched visibility of the bucket and entire worksite through large windows and front and side lighting, enhancing jobsite safety
  • A unique tilting operator’s platform and large engine cover are the only two points of access needed to expose all maintenance components
Specifications
Model
ET90
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Tracked Conventional Tail Excavators ET90 Economical and powerful

  • Optimal force distribution when excavating and up to 20% more breakaway force: plunge in deeper and excavate more powerfully
  • Less material loss in the bucket due to an expanded angle of rotation of 200 degrees
  • Up to 20% less fuel consumption

Wacker Neuson Tracked Conventional Tail Excavators ET90 Cabin, sight and operating comfort

  • Innovative solution for the optimal view – boom is offset to the right for an unobstructed view
  • Operator comfort: spacious cabin, air cushioned seat and automatic air-conditioning system
  • Innovative front windshield system: two-part windshield can be slid up and moved - rain roof position
  • LED headlights for optimal illumination

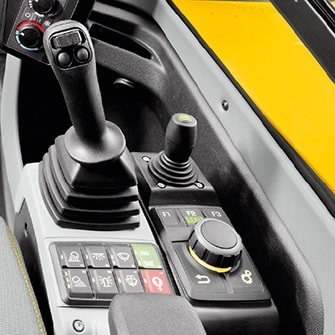

Wacker Neuson Tracked Conventional Tail Excavators ET90 Jog dial system

  • Technology from the automotive sector
  • For the direct control of central functions
  • Intuitive to operate
technical specifications

ET90 Technical specifications

Metric

Operating data
Shipping weight min. 8,348 kg
Operating weight  8,710 - 9,988 kg
Biting force max.  46 kN
Breakout force max.  73.8 kN
Digging depth max.  4,625 mm
Dumping height  5,066 - 5,272 mm
Digging radius max.  7,620 mm
Superstructure slewing speed  9 1/min
L x W x H  7,117 x 2,250 x 2,562 mm

Engine / Motor
Engine / Motor manufacturer  Deutz
Engine / Motor type  TCD 2.9 DOC
Engine / Motor  Liquid-cooled 4-cylinder turbo in-line engine, direct injection, exhaust gas turbocharger and intercooling
Displacement  2,920 cm³
RPM / speed  2,500 rpm
Engine performance according to ISO 55.4 kW
Battery  88 Ah
Fuel tank capacity  85 l

Hydraulic system
Duty pump  Variable displacement pump
Flow rate  180.5 l/min
Operating pressure for working and driving hydraulics 300 bar
Operating pressure swing gear 240 bar
Hydraulic oil tank  92 l

Undercarriage
Travel speed max. 5 km/h
Chain width  450 mm
Ground clearance  370 mm

Dozer Blade
Stroke dozer blade above subgrade 479 mm
Stroke dozer blade below subgrade 518 mm

Sound level
Sound level (LwA) according to 2000/14/EC 99 dB(A)
Cabin - specified sound pressure level LpA according to ISO 6394 79 dB(A)

Imperial

Operating data
Shipping weight min. 18,404 lb
Operating weight  19,202 - 22,020 lb
Biting force max.  10,341 lbf
Breakout force max.  16,591 lbf
Digging depth max.  182.1 in
Dumping height  199.4 - 207.6 in
Digging radius max.  300 in
Superstructure slewing speed  9 rev/min
L x W x H  280.2 x 88.6 x 100.9 in

Engine / Motor
Engine / Motor manufacturer  Deutz
Engine / Motor type  TCD 2.9 DOC
Engine / Motor  Liquid-cooled 4-cylinder turbo in-line engine, direct injection, exhaust gas turbocharger and intercooling
Displacement  178.12 in³
RPM / speed  2,500 rpm
Engine performance according to ISO 74.24 hp
Battery  88 CCA
Fuel tank capacity  22.5 US gal

Hydraulic system
Duty pump  Variable displacement pump
Flow rate  47.69 US gpm
Operating pressure for working and driving hydraulics 4,351 psi
Operating pressure swing gear 3,481 psi
Hydraulic oil tank  24.3 US gal

Undercarriage
Travel speed max. 3.1 mph
Chain width  17.7 in
Ground clearance  14.6 in

Dozer Blade
Stroke dozer blade above subgrade 18.9 in
Stroke dozer blade below subgrade 20.4 in

Sound level
Sound level (LwA) according to 2000/14/EC 99 dB(A)
Cabin - specified sound pressure level LpA according to ISO 6394 79 dB(A)
