ID # 19413577

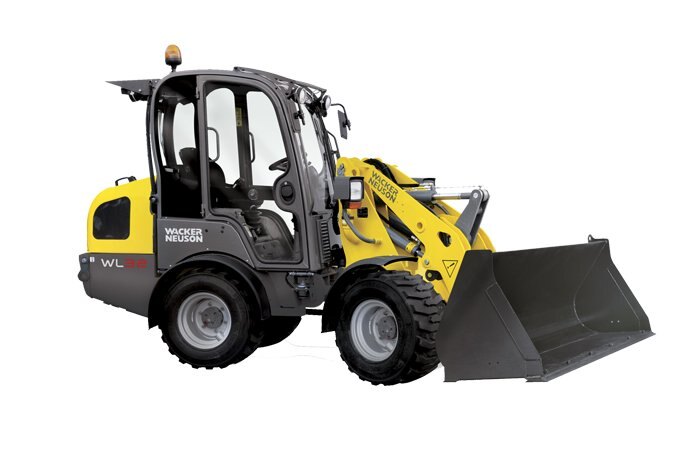

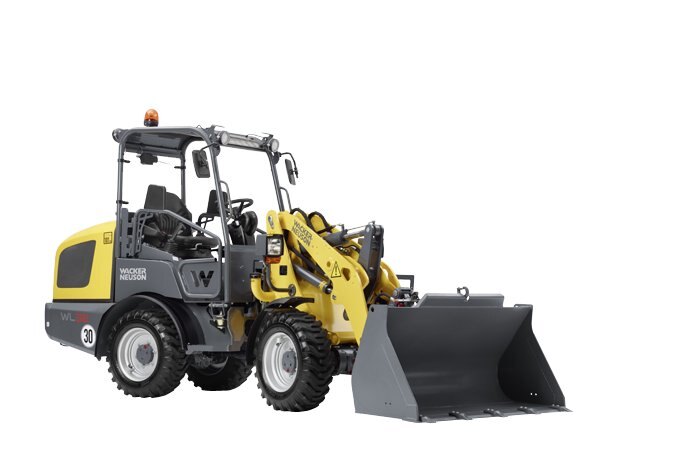

Wacker Neuson Articulated Wheel Loaders WL32

  • Wacker Neuson Articulated Wheel Loaders WL32
  • Wacker Neuson Articulated Wheel Loaders WL32
  • Wacker Neuson Articulated Wheel Loaders WL32
  • Wacker Neuson Articulated Wheel Loaders WL32
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Articulated Wheel Loaders

Wheel loaders by Wacker Neuson stand for optimal efficiency output, high grade materials, long service life, good maneuverability and maintenance in a flash. Our wheel loaders are true multi-talents on your construction site and exactly the right equipment to meet your requirements in many other areas.
WL32 - Articulated Wheel Loader offers power and performance

The WL 32 is equipped with a powerful Perkins 4-cylinder, Tier IV Final diesel engine that delivers high performance. Available with either a 48-hp or 60-hp designed for maximum efficiency. This articulating wheel loader features a modern cab design ensuring panoramic visibility with excellent headroom and freedom of movement. With the universal attachment plate, Faster Hydraulic Block and 14-pin auxiliary electrical harness all standard, operating attachments is quick and easy.
  • Universal attachment plate accepts most existing skid steer attachments.
  • Standard aux hydraulic flow of 16 gpm with 28 gpm high flow option
  • Compact design with 48-inch width (narrow tires required), is ideal for maneuvering on sidewalks
  • Operators station is easily accessible from both sides for added convenience. Ergonomically shaped and spring mounted seat is designed for operator comfort and added productivity. Choice of canopy or cab.
  • Excellent visibility; infinitely adjustable steering column; platform is side tilting for better serviceability
Specifications
Model
WL32
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
options

WL32 Options

  • Cab with heat and two side entry, exit doors and left and right foldable mirrors
  • Slow speed control
  • 33x15.5-16.5 turf tires
  • Narrow Tire Kit (machine width 48”)
  • Rotating Beacon
  • Block Heater
  • Hydraulic Valve Kit (not needed on 60HP machine)
  • U tread solid tires
  • F2A solid tires



technical specifications

WL32 Technical specifications
Metric


  Canopy Cab Cab

Engine / Motor
Engine / Motor manufacturer  Perkins Perkins Perkins
Engine / Motor type  404 F-22 404 F-22 404 F-22T
Cylinder  4 4 4
Engine performance  kW 35.7 35.7 44.8
at rpm maximum rpm 2,600 2,600 2,600
Displacement  cm³ 2,216 2,216 2,216
Coolant type  Water Water Water

Electrical system
Operating voltage  V 12 12 12
Battery  Ah 95 95 95
Alternator  A 85 85 85

Weights
Operating weight  kg 3,400
Lifting force maximum daN 1,909 1,909 1,909
Breakout force maximum daN 4,269 4,269 4,269

Vehicle data
Bucket capacity Standard bucket m³ 0.45 0.45 0.45
Traction drive  Hydrostatic with universal joint shaft Hydrostatic with universal joint shaft Hydrostatic with universal joint shaft
Axles  PA 940 PA 940 PA 940
Drivers cab  Canopy Cabin Cabin
Speed (standard) km/h 0-20 0-2 0-2
Speed Level  2 2 2
Standard tires  31x15.5-15EM ET-37 31x15.5-15EM ET-37 31x15.5-15EM ET-37

Hydraulic system
Driving hydraulics - operating pressure  bar 450 450 450
Operating hydraulics - operating pressure  bar 210 210 210
Operating hydraulics - discharge capacity  l/min 56 56
Operating hydraulics - discharge capacity  l/min     100

Filling capacities
Fuel tank capacity  l 65 65 65
Tank capacity  - Hydraulic l 35 35 35

Sound level
Average sound power level LwA  dB(A) 99.8 99.8 99.8
Guaranteed sound power level LwA  dB(A) 101 101 101
Specified sound pressure level LpA  dB(A) 82 82 82
Standard bucket = digging bucket, width 55.12 in (1400 mm)

 Imperial


  Canopy Cab Cab

Engine / Motor
Engine / Motor manufacturer  Perkins Perkins Perkins
Engine / Motor type  404 F-22 404 F-22 404 F-22T
Cylinder  4 4 4
Engine performance  hp 49 49 60
at rpm maximum rpm 2,600 2,600 2,600
Displacement  in³ 135 135 135
Coolant type  Water Water Water

Electrical system
Operating voltage  V 12 12 12
Battery  Ah 95 95 95
Alternator  A 85 85 85

Weights
Operating weight  lb 7,496
Lifting force maximum lb 4,292 4,292 4,292
Breakout force maximum lbf 9,597 9,597 9,597

Vehicle data
Bucket capacity Standard bucket yd³ 0.59 0.59 0.59
Traction drive  Hydrostatic with universal joint shaft Hydrostatic with universal joint shaft Hydrostatic with universal joint shaft
Axles  PA 940 PA 940 PA 940
Drivers cab  Canopy Cabin Cabin
Speed (standard) mph 0-12.4 0-12.4 0-12.4
Speed Level  2 2 2
Standard tires  31x15.5-15EM ET-37 31x15.5-15EM ET-37 31x15.5-15EM ET-37

Hydraulic system
Driving hydraulics - operating pressure  psi 6,527 6,527 6,527
Operating hydraulics - operating pressure  psi 3,046 3,046 3,046
Operating hydraulics - discharge capacity  US gpm 14.8 14.8
Operating hydraulics - discharge capacity  US gpm     26.4

Filling capacities
Fuel tank capacity  US gal 16.9 16.9 16.9
Tank capacity  - Hydraulic US gal 37 37 37

Sound level
Average sound power level LwA  dB(A) 99.8 99.8 99.8
Guaranteed sound power level LwA  dB(A) 101 101 101
Specified sound pressure level LpA  dB(A) 82 82 82
Standard bucket = digging bucket, width 55.12 in (1400 mm)
