Wacker Neuson Articulated Wheel Loaders WL95

Videos
Call for Price
Overview
Articulated Wheel Loaders

Wheel loaders by Wacker Neuson stand for optimal efficiency output, high grade materials, long service life, good maneuverability and maintenance in a flash. Our wheel loaders are true multi-talents on your construction site and exactly the right equipment to meet your requirements in many other areas.
WL95 - Material handling in a new dimension

The largest articulated wheel loader in the Wacker Neuson fleet, the WL95 can load, move and place material efficiently. The 2-yard wheel loader offers performance with a high payload plus a large comfortable cab with a clear view of the attachments.  The WL95 is powered by a 136 horsepower diesel engine with DOC and SCR aftertreatment.
Specifications
Model
WL95
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Articulated Wheel Loaders WL95 Continuously variable drive

The ecospeed PRO is a continuously variable hydrostatic transmission. It is just as compact and energy-efficient as conventional drives, but achieves significantly higher tractive forces and driving speeds. With the ecospeed PRO, the WL95 accelerates smoothly and evenly up to 24.8 mph (40 km/h) without interruption of traction.

Wacker Neuson Articulated Wheel Loaders WL95 Optimum service access

The WL95 is equipped with a semi-tiltable cabin. All covers are easily accessible and the fenders are removable. This allows easy access to the hydraulic and the electrical system. Maintenance and checkup of the machine are greatly expedited. The hood can be opened very wide which offers optimal access.

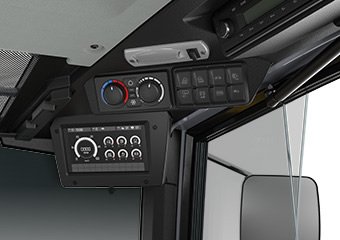

Wacker Neuson Articulated Wheel Loaders WL95 7" digital display - everything in sight

In addition to standard displays such as temperature, tank filling or operating hours, the active functions are also displayed in the cockpit. For example, switched on electrical functions, the continuous operation of the 3rd control circuit or the activated differential lock - practically all operations of the machine. Positioned in the top right corner of the cabin, the display is always in view but never in the way.

Wacker Neuson Articulated Wheel Loaders WL95 Excellent maneuverability

Narrow curves, small gradients - every construction site is different. In order to transport the goods safely to their destination, the WL95 is equipped with an articulated joint and a pendulum axle at the rear. This ensures optimum maneuverability and traction in every situation. The compact design enables a tight turning radius and generous steering angle.

Wacker Neuson Articulated Wheel Loaders WL95 Large, ergonomic comfort cabin

The WL95 offers plenty of leg room, well-arranged combination instruments, a comfortable driver's seat and an optimal view of the attachment. The console with multi-function joystick, "jog dial", electronic hand throttle and inching has been realized co-springing on the seat - all for maximum comfort and fatigue-free working.

Wacker Neuson Articulated Wheel Loaders WL95 Hydraulic oil quantity adjustment simply by "jog dial"

If an attachment does not require full hydraulic power, the flow rate can be reduced manually. This allows the driver to work more sensitively and economically with the machine and attachment tool.

Wacker Neuson Articulated Wheel Loaders WL95 Discover diversity with attachment tools and quick-change system

A hydraulic quick-change system ensures greater productivity and efficiency. Together with a large number of attachment tools the WL95 becomes a multitool for a wide range of applications.

Wacker Neuson Articulated Wheel Loaders WL95 Return-to-dig function

Well positioned on the joystick, the position of the tool holder can be saved with just one touch of a button. During the next loading process, the tool can return to the exact same position. A plus of comfort, precision and speed for the driver in recurring tasks, such as stacking or filling containers with fixed height.

technical specifications

WL95 Technical specifications
Metric

Engine / Motor

Engine / Motor manufacturer  Deutz
Engine / Motor type  TCD 3.6 L4
Cylinder  4
Engine performance  100 kW
at rpm Maximum 2,300 rpm
Displacement  3,621 cm³
Coolant type  water / charge air
Exhaust after treatment  DOC/DPF/SCR
Emission standards stage  EU level IV / US EPA Tier 4

Electrical system

Operating voltage  12 V
Battery  185 Ah
Alternator  120 A

Weights

Operating weight  10,390 kg
Tipping load with bucket - machine straight  6,529 kg
Tipping load with bucket - machine at angle  5,748 kg
Tipping load with pallet fork - machine straight  5,371 kg
Tipping load with pallet fork - machine at angle  4,728 kg

Vehicle data

Bucket capacity Standard bucket 1.55 m³
Traction drive  hydrostatic via universal joint shaft
Axles  PA1900
Drivers cab  cabin
Speed  0-40 km/h
Speed Level  3
Standard tires  500/70 R24 BIBLOAD HARD SURFACE

Hydraulic system

Driving hydraulics - operating pressure  480 bar
Operating hydraulics - operating pressure  250 bar
Operating hydraulics - discharge capacity  150 l/min
Operating hydraulics - discharge capacity (optional up to) 180 l/min

Filling capacities

Fuel tank capacity  140 l
Hydraulic oil tank  125 l

Tipping load calculation according to ISO 14397 (horizontal mast)

DPF = Diesel particulate filter

DOC = Diesel oxidation catalytic converter

SCR = Selective catalytic reduction

Imperial

Engine / Motor

Engine / Motor manufacturer  Deutz
Engine / Motor type  TCD 3.6 L4
Cylinder  4
Engine performance  136 hp
at rpm Maximum 2,300 rpm
Displacement  221 in³
Coolant type  water / charge air
Exhaust after treatment  DOC/DPF/SCR
Emission standards stage  EU level IV / US EPA Tier 4

Electrical system

Operating voltage  12 V
Battery  185 Ah
Alternator  120 A

Weights

Operating weight  22,906 lb
Tipping load with bucket - machine straight  14,394 lb
Tipping load with bucket - machine at angle  12,672 lb
Tipping load with pallet fork - machine straight  11,841 lb
Tipping load with pallet fork - machine at angle  10,423 lb

Vehicle data

Bucket capacity Standard bucket 2 yd³
Traction drive  hydrostatic via universal joint shaft
Axles  PA1900
Drivers cab  cabin
Speed  0-24.8 mph
Speed Level  3
Standard tires  500/70 R24 BIBLOAD HARD SURFACE

Hydraulic system

Driving hydraulics - operating pressure  6,962 psi
Operating hydraulics - operating pressure  3,626 psi
Operating hydraulics - discharge capacity  39.63 US gpm
Operating hydraulics - discharge capacity (optional up to) 47.56 US gpm

Filling capacities

Fuel tank capacity  37 US gal
Hydraulic oil tank  132 US qt

Tipping load calculation according to ISO 14397 (horizontal mast)

DPF = Diesel particulate filter

DOC = Diesel oxidation catalytic converter

SCR = Selective catalytic reduction
