ID # 19413583

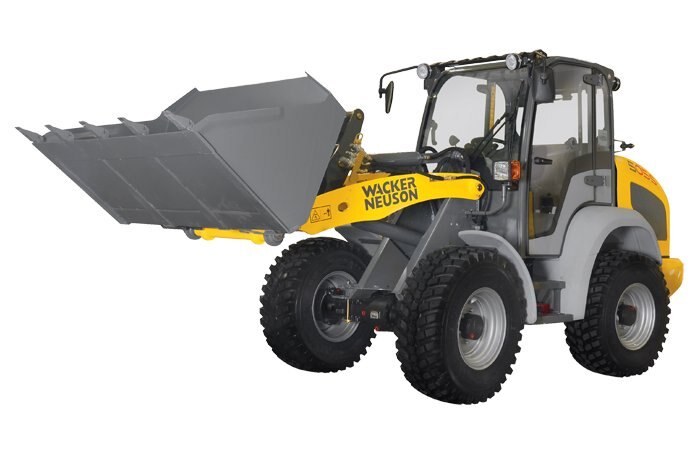

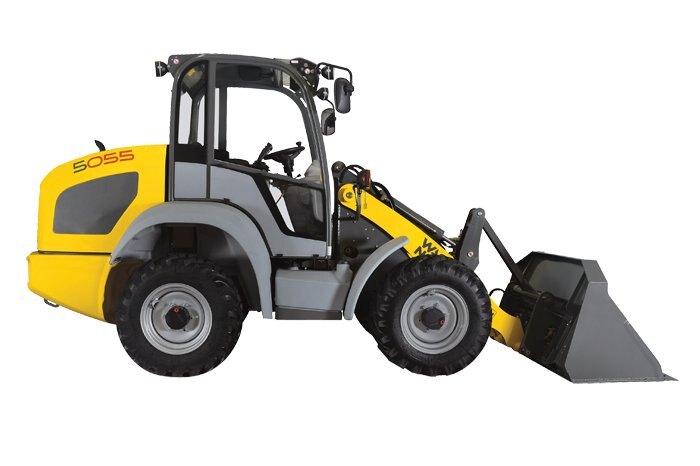

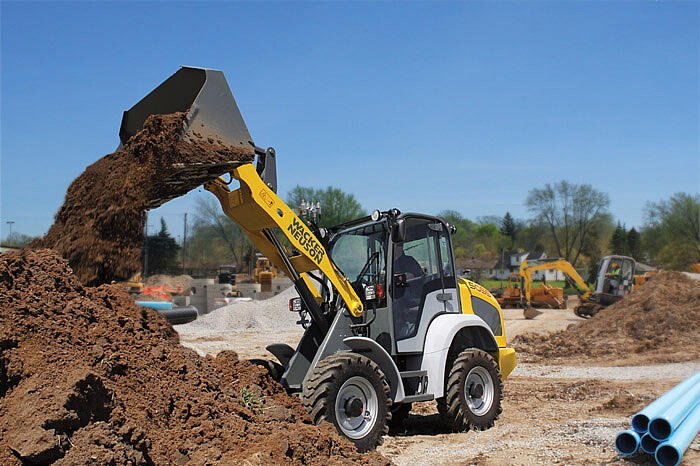

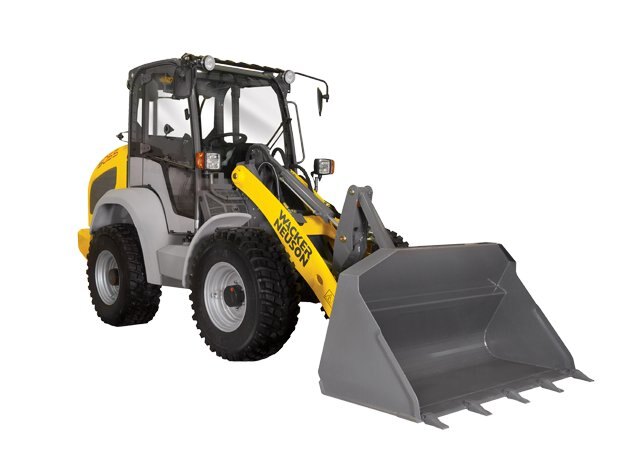

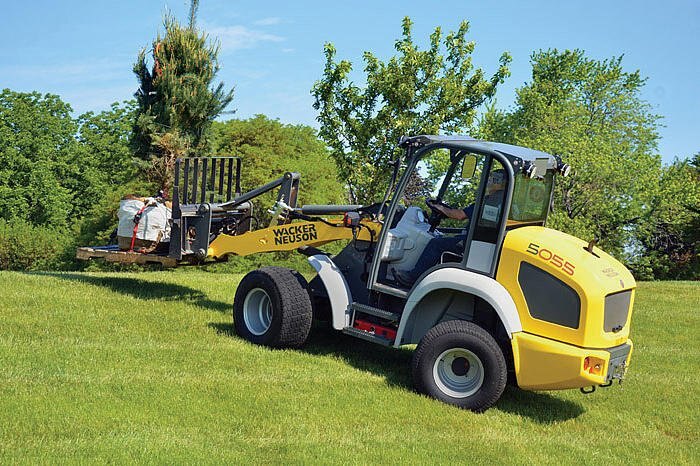

Wacker Neuson All Wheel Steer Loaders 5055

  • Wacker Neuson All Wheel Steer Loaders 5055
  • Wacker Neuson All Wheel Steer Loaders 5055
  • Wacker Neuson All Wheel Steer Loaders 5055
  • Wacker Neuson All Wheel Steer Loaders 5055
  • Wacker Neuson All Wheel Steer Loaders 5055
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

All Wheel Steer Loaders

With the all-wheel wheel loaders from the Wacker Neuson Group, you can even maneuver under difficult spatial conditions. The all-wheel steering offers excellent maneuverability, general machine stability and increased payloads.
5055 - All Wheel Steer Loader

The 5055 all wheel steer wheel loader offers excellent maneuverability around the job site. This unit features a long wheelbase for smooth driving and easy handling even across the roughest terrain. Counterweights are located far behind the rear axle for higher payloads and more stability. Four-wheel drive steering offers excellent maneuverability, overall machine stability and increased payloads. Machine design features placement of components for easy access and serviceability.
  • Operator station offers a spacious and functional layout for operator comfort.
  • All-wheel steer and rigid frame provide excellent maneuverability and constant payload stability even when turning.
  • Hydraulically operated universal style quick hitch allows for efficient changing from one accessory to another without leaving the operator's station.
  • Engine cover lifts high giving excellent access to all the service points.
  • Low transport weight and constant high payload make this the ideal machine.
Specifications
Model
5055
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
options

5055 Options

  • High speed of 18.6 mph (30kph), power flow front auxillary hydrualics, slow speed control, manual engine speed control, front electrics,  and  ride control
  • Cab with heat and air conditioning, radio ready, and foldable mirrors


Tires

Available only with 12.6 mph travel speed

  • U tread solid tires
  • F2A tread

technical specifications

5055 Technical specifications
Metric

  5055 Cabin 5055 Canopy

Engine / Motor
Engine / Motor manufacturer  Yanmar Yanmar
Engine / Motor type  4TNV88C Tier IV Final 4TNV88C Tier IV Final
Engine performance  kW 35 35
Displacement  cm³ 2,190 2,190

Electrical system
Operating voltage  V 12 12
Battery  Ah 74 74
Alternator  A 55 55

Weights
Operating weight  kg 3,600 3,450
Lifting force  daN 3,250
Breakout force  daN 2,800 2,800
Payload S=1.25 (pallets) kg 1,600 1,600
Tipping load max. kg 2,160 2,160

Vehicle data
Bucket capacity  m³ 0.65 0.65
Speed  km/h 0-20 0-20
Standard tires  10.5-18 10.5-18
Service brake  Hydraulic disc brake Hydraulic disc brake
Steering angle max. ° 2 x 38 2 x 38

Hydraulic system
Driving hydraulics - discharge capacity  l/min 56
Operating hydraulics - operating pressure  bar 235 235

Filling capacities
Tank capacity  l 60 60
Hydraulic oil tank  l 58 58
We reserve the right to make modifications without prior notice. No responsibility is taken for the accuracy of this information. The provisions of the contractual agreement shall be considered definitive.

Imperial

  5055 Cabin 5055 Canopy

Engine / Motor
Engine / Motor manufacturer  Yanmar Yanmar
Engine / Motor type  4TNV88C Tier IV Final 4TNV88C Tier IV Final
Engine performance  hp 47 47
Displacement  in³ 133.6 133.6

Electrical system
Operating voltage  V 12 12
Battery  Ah 74 74
Alternator  A 55 55

Weights
Operating weight  lb 7,936.6 7,605.9
Lifting force  lb 7,306.3
Breakout force  lbf 6,294.6 6,294.6
Payload S=1.25 (pallets) lb 3,527.4 3,527.4
Tipping load max. lb 4,761.9 4,761.9

Vehicle data
Bucket capacity  yd³ 0.85 0.85
Speed  mph 0-12.4 0-12.4
Standard tires  10.5-18 10.5-18
Service brake  Hydraulic disc brake Hydraulic disc brake
Steering angle max. ° 2 x 38 2 x 38

Hydraulic system
Driving hydraulics - discharge capacity  US gpm 14.56
Operating hydraulics - operating pressure  psi 3,408.4 3,408.4

Filling capacities
Tank capacity  US gal 15.6 15.6
Hydraulic oil tank  US qt 61.3 61.3
We reserve the right to make modifications without prior notice. No responsibility is taken for the accuracy of this information. The provisions of the contractual agreement shall be considered definitive.
