ID # 19413616

Wacker Neuson Skid Steer Loaders SW16

  • Wacker Neuson Skid Steer Loaders SW16
  • Wacker Neuson Skid Steer Loaders SW16
  • Wacker Neuson Skid Steer Loaders SW16
  • Wacker Neuson Skid Steer Loaders SW16
  • Wacker Neuson Skid Steer Loaders SW16
  • Wacker Neuson Skid Steer Loaders SW16
  • Wacker Neuson Skid Steer Loaders SW16
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Skid Steer Loaders

Medium and large frame skid steer loaders are designed for comfortable operation and performance. The vertical lift units offer class-leading hinge pin height and all models have large fuel tanks to give you more working time in the high visibility cab. Best service access in the industry with cabs that fully tip forward with the loader arms down to give complete access to all maintenance components.

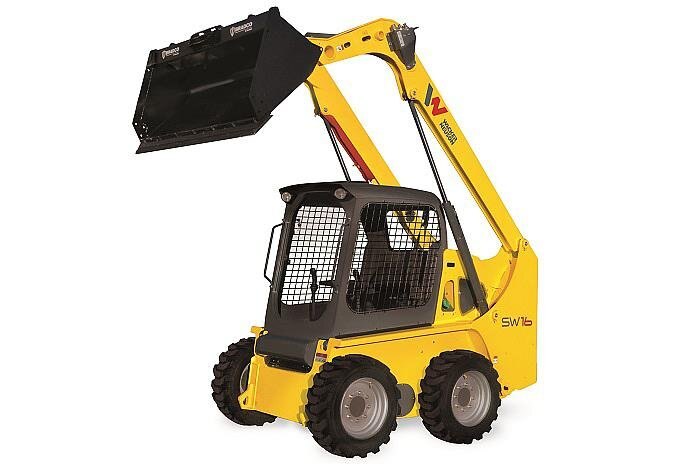

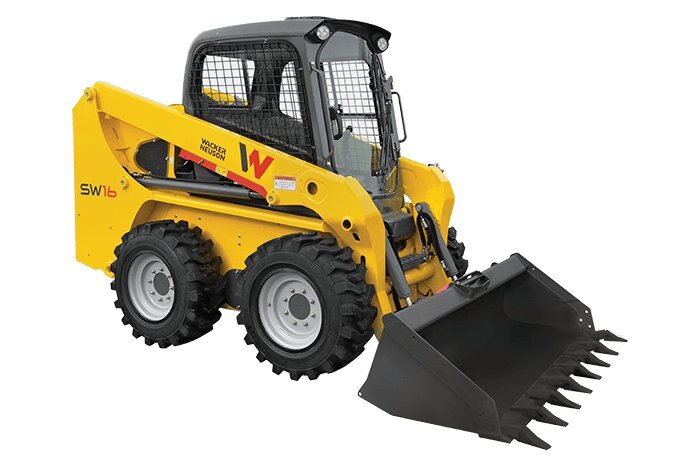

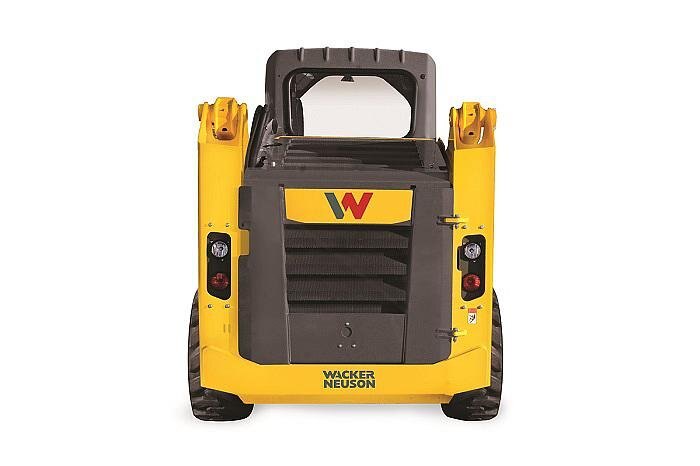

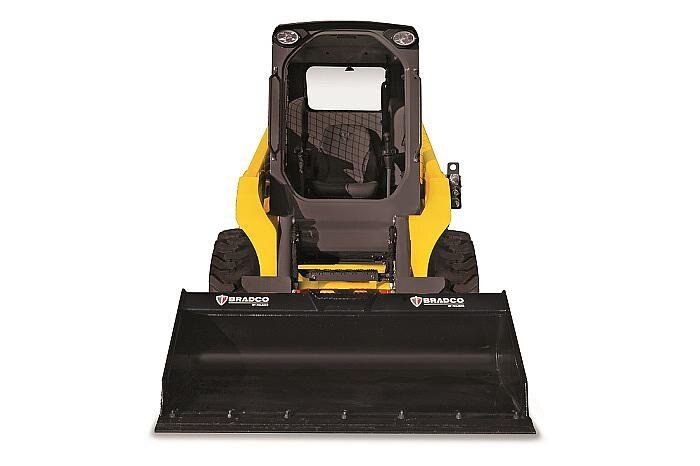

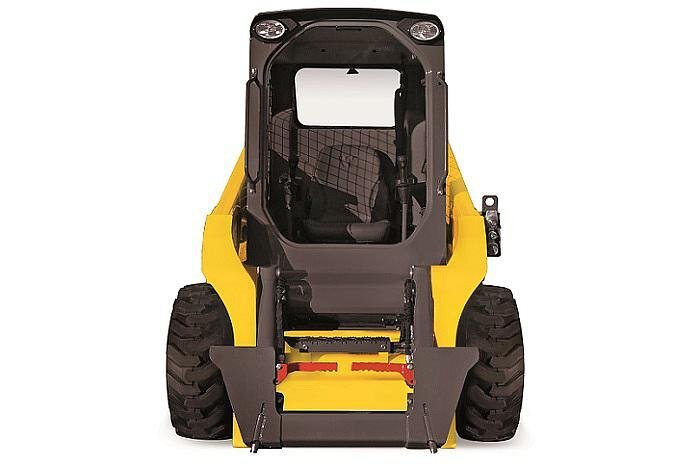

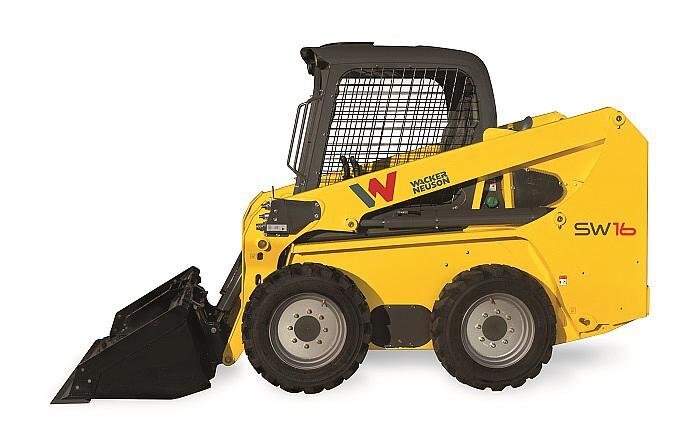

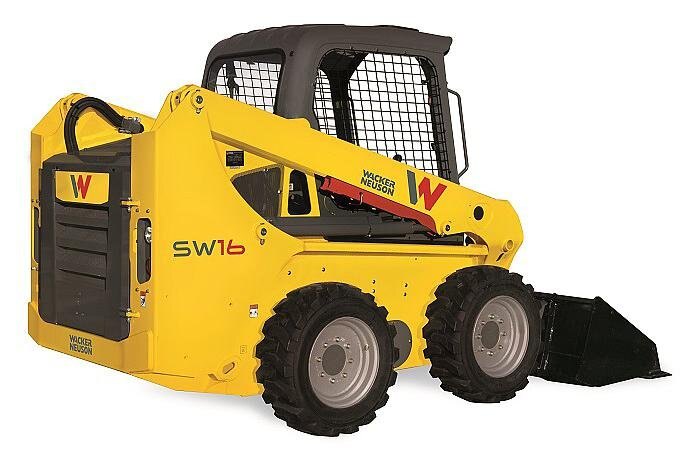

SW16 - Radial Lift Skid Steer Loader

The SW16 offers the power and torque needed for any job site. This unit delivers 1,600 pounds of rated operating capacity at 50% and a lift height over 118 inches. The machine is equipped with a 56 hp turbo-charged Kohler Tier 4 Final engine offering class-leading engine torque. Mechanical Hand-Foot and Selectable EH controls ensures operators with any control preference can efficiently operate the machine. With spacious door width and height, visibility of the attachment and the surroundings is superior to the competition.
  • Ergonomically designed operator station offers a wide door, angled pedals and foot-bed, and conveniently located switches, allowing for significantly reduced operator fatigue.
  • Category leading hydraulic horsepower of 36.8 hp allows for the ability to maximize the efficiency of high-performance attachments.
  • Tier 4 Final Kohler engines comes with industry-leading 4 year, 4,000 hour warranty. Maintenance free, filter free, and regeneration free aftertreatment eliminates extreme heat during regeneration and allows the operator to spend more time concentrating on the job site and less time changing filters.
  • Designed with maintenance access in mind, engine checkpoints are within easy reach making daily maintenance quick and simple.
  • The 30-gallon fuel tank gives operators 30% more time in the cab, and less time refueling.
Specifications
Model
SW16
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Skid Steer Loaders SW16 Ergonomic Cab Design

  • A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator

  • Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

  • With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.

Wacker Neuson Skid Steer Loaders SW16

  • From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

  • Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.
options

SW16 Options

  • Fully Enclosed, Pressurized Cab, Heat
  • Fully Enclosed, Pressurized Cab, Heat, Air Conditioning
  • Polycarbonate Door
  • Deluxe Display (5.7" color LCD screen)
  • Back-up Camera
  • Hydraulic Coupler
  • Selectable EH Joystick Controls (ISO/H Pattern)
  • Variable Speed Fan
  • Mechanical Suspension Seat
  • 3" 3-point Seat Belt
  • Two Speed Drive - 8.0/12.0 mph (12.9/19.3 kph)
  • Zero-Drift Hydraulic Valve
  • Cyclonic Engine Pre-Cleaner
  • Foot Throttle (EH Controls only)
  • 14-Pin Attachment Control
  • Engine Block Heater (110v)
  • One Way Hydraulic Bucket Leveling
  • Ride Control
  • Radio
  • Strobe Beacon
  • Stackable Counter Weights (340 lbs)
  • Battery Disconnect
  • Duel Armrest (For Mechanical Hand-Foot machines only)
  • Synthetic Hydraulic Oil
  • Fire Extinguisher Kit
  • Hazard Lights Kit (Strobe + 4 Way Flashers)
  • Single Point Lift Kit
  • Rear Receiver Kit
  • Level II FOPS Kit
  • 10x16.5" Premium Tires
  • 10x16.5" Severe Duty Tires
  • 10x16.5" Solid Tires
  • 12x16.5" Standard Tires
  • 12x16.5" Premium Tires
technical specifications
Metric


Operating data
Height top of ROPS 2,070 mm
Overall length w/ bucket 3,426 mm
Overall length w/o bucket 2,708 mm
Operating weight  2,799 kg
Height Hinge Pin Max 3,000 mm
Rated Operating Capacity 50% 725 kg
Dump reach  866 mm
Dump height max. at max height 2,301 mm
Angle of departure  24 °
Tipping angle (bucket dump) w/bucket at max height 42 °
Ground clearance  193 mm
Breakout force max. - Bucket 23.6 kN
Breakout force max. - Boom 22.2 kN
Width  1,674 mm
Wheelbase  1,105 mm

Engine / Motor
Engine / Motor manufacturer  Kohler
Engine / Motor  KDI 1903 TCR
Engine performance  42 kW
Displacement  1,861 cm³
RPM / speed  2,750 rpm
Battery  950 Ah
Fuel tank capacity  114 l

Hydraulic system
Auxiliary Hydraulics- Standard Flow  76 l/min
Pressure Aux. relief 241 bar
Hydraulic oil tank  11 l

Power transmission
Travel speed Low 12.9 km/h
Travel speed High 19.3 km/h
Standard tires  10 x 16.5

Imperial


Operating data
Height top of ROPS 81.5 in
Overall length w/ bucket 134.9 in
Overall length w/o bucket 106.6 in
Operating weight  6,170 lb
Height Hinge Pin Max 118.1 in
Rated Operating Capacity 50% 1,600 lb
Dump reach  34.1 in
Dump height max. at max height 90.6 in
Angle of departure  24 °
Tipping angle (bucket dump) w/bucket at max height 42 °
Ground clearance  7.6 in
Breakout force max. - Bucket 5,300 lbf
Breakout force max. - Boom 5,000 lbf
Width  65.9 in
Wheelbase  43.5 in

Engine / Motor
Engine / Motor manufacturer  Kohler
Engine / Motor  KDI 1903 TCR
Engine performance  56 hp
Displacement  113.6 in³
RPM / speed  2,750 rpm
Battery  950 CCA
Fuel tank capacity  30 US gal

Hydraulic system
Auxiliary Hydraulics- Standard Flow  20 US gpm
Pressure Aux. relief 3,500 psi
Hydraulic oil tank  2.9 US gal

Power transmission
Travel speed Low 8 mph
Travel speed High 12 mph
Standard tires  10 x 16.5
