ID # 19413621

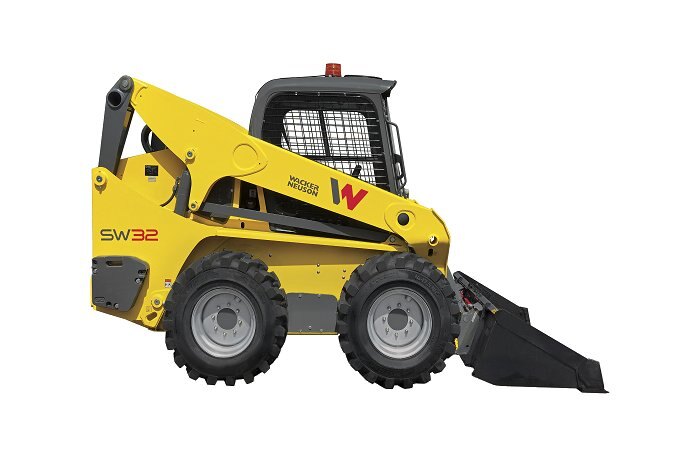

Wacker Neuson Skid Steer Loaders SW32

  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
  • Wacker Neuson Skid Steer Loaders SW32
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Skid Steer Loaders

Medium and large frame skid steer loaders are designed for comfortable operation and performance. The vertical lift units offer class-leading hinge pin height and all models have large fuel tanks to give you more working time in the high visibility cab. Best service access in the industry with cabs that fully tip forward with the loader arms down to give complete access to all maintenance components.

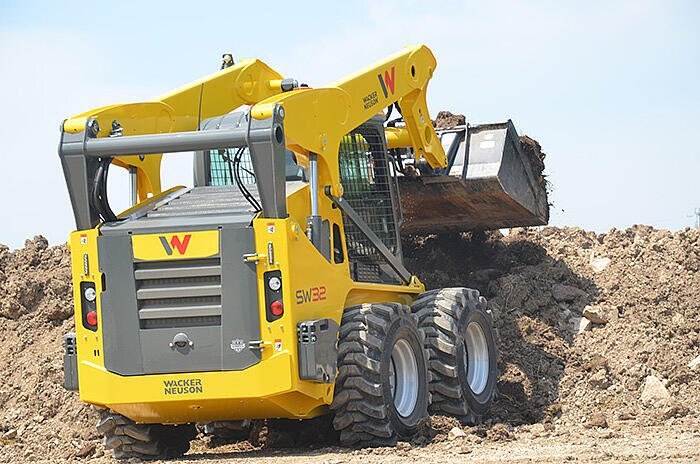

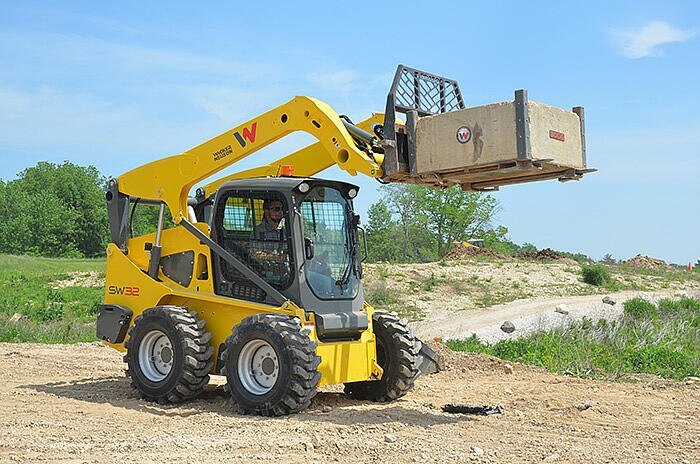

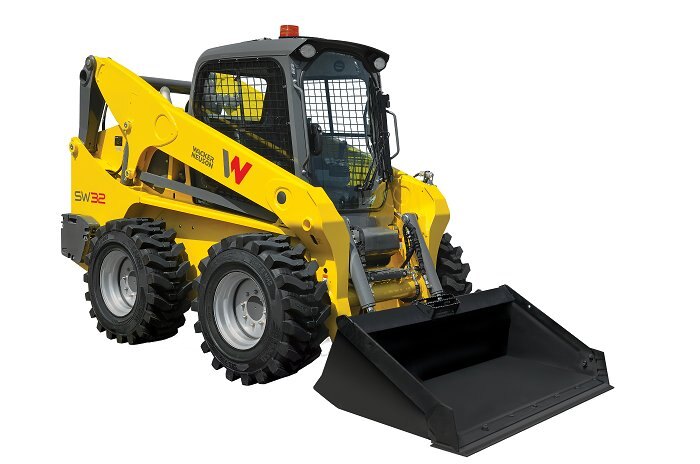

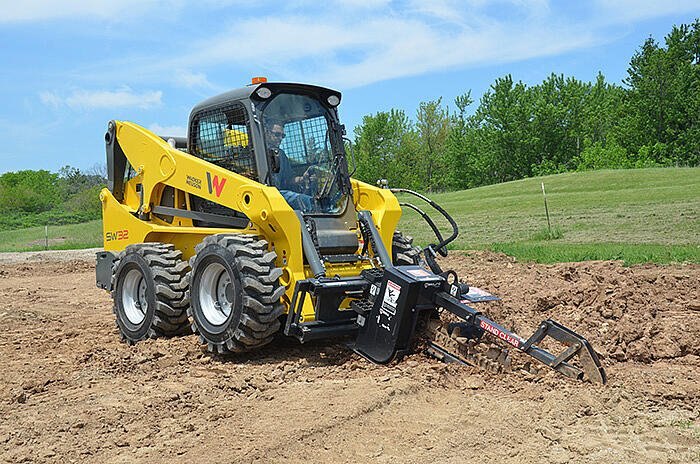

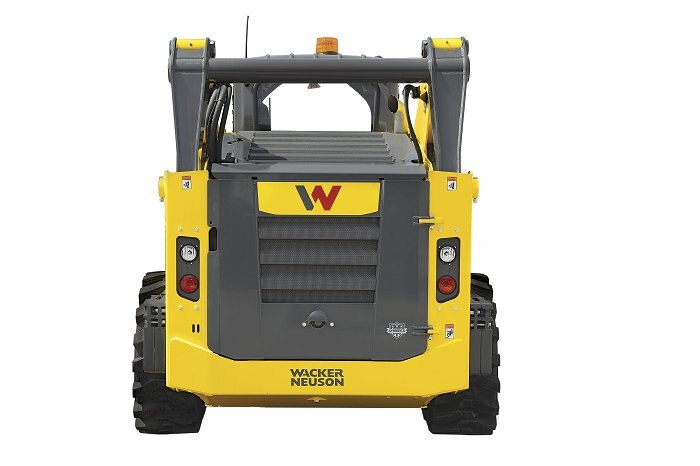

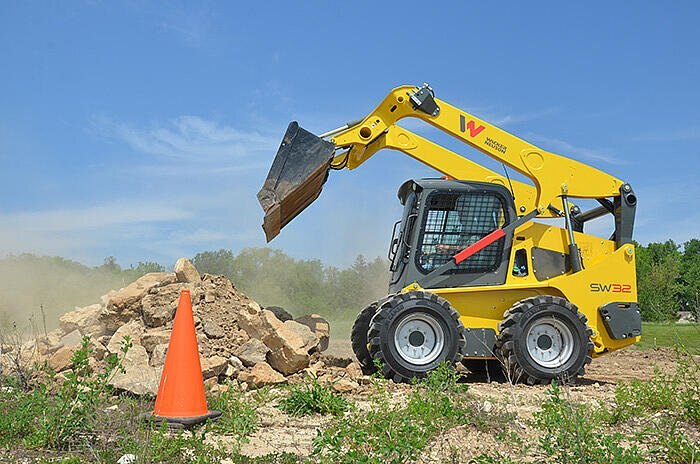

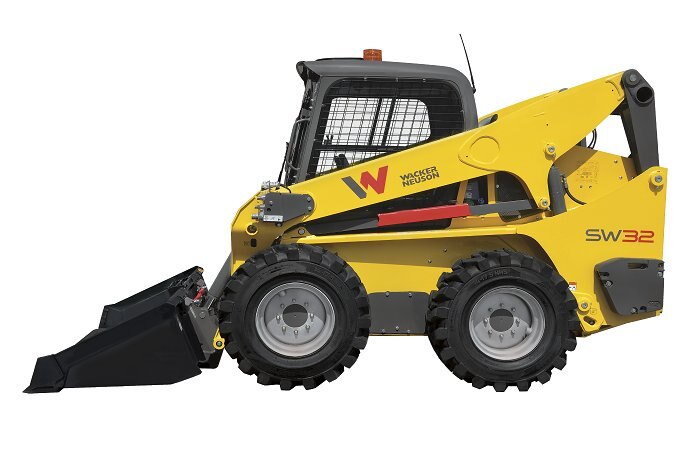

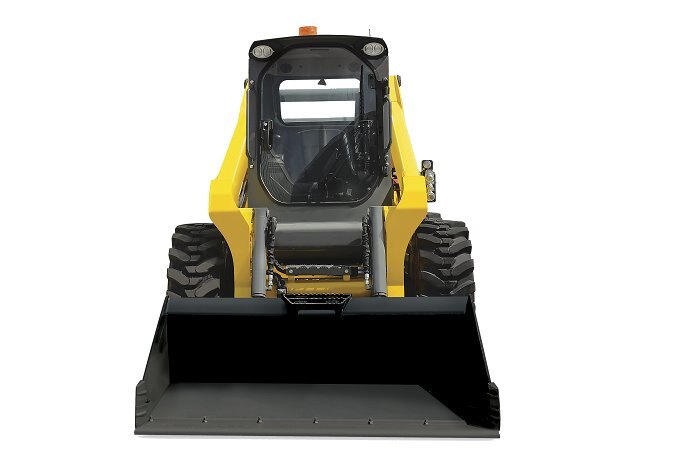

SW32 - Vertical Lift Skid Steer Loader

The 100 HP SW32 brings maximum power and efficiency to every jobsite. The SW32 delivers 3,200 pounds of rated operating capacity at 50% and a lift height up to 134,8 inches. The machine is equipped with a 4-cyl Turbo Diesel Tier 4 Final engine. Available with EH Hand-Foot and Selectable EH (ISO and H-Pattern) controls, the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue, increasing productivity.
  • Standard two-speed transmission increases travel time on the job sites giving the operator more time throughout the day to get more tasks completed.
  • Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
  • Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.
  • Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
  • Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
Specifications
Model
SW32
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Skid Steer Loaders SW32 Ergonomic Cab Design

  • A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator

  • Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

  • With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.

Wacker Neuson Skid Steer Loaders SW32

  • From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

  • Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.

Wacker Neuson Skid Steer Loaders SW32 Accessibility
  • Best-in-class daily maintenance service access with a simple design and efficient layout means less time on daily service checks and more time on the job.

  • Cab fully tips forward with the arms down providing complete access to all maintenance components.
options

SW32 Options

  •  Open ROPS canopy
  • Cab type - enclosed - heat only
  • Cab type- enclosed - heat, A/C
  • Polycarbonate Door
  • Selectable EH joystick controls (ISO/H Pattern)(includes 5.7" color display)
  • EH hand-foot controls (joystick + foot pedals)(includes 5.7" color display)
  • Mechanical couple
  • Hydraulic coupler
  • 12 x 16.5 standard tires
  • 12 x 16.5 severe duty tires
  • 12 x 16.5 solid tires
  • 12 x 16.5 premium tires
  • 12 x 16.5 premium tires - wide (adds 4.5" to machine width)
  • 14 x 17.5 Premium tires (includes foot counterweight)
  • Diamond coating
  • Counterweights
  • Mechanical suspension seat
  • Air-ride seat
  • Heated air-ride seat
  • 3" seat belt
  • Foot throttle (for Selectable EH Controls only)
  • Rearview Camera (requires 5.7" color display)
  • Radio  bluetooth streaming
  • Dual beam work lights
  • Strobe beacon
  • Hazard light package (strobe beacon + 4-way flashers)
  • Ride Control
  • One-way hydraulic bucket leveling
  • High flow (37.4 gpm)
  • Zero-drift hydraulic valve
  • 14-pin attachment control
  • Block heater (110v)(T4F only)
  • Cyclonic engine pre-cleaner
  • Exhaust scavenging pre-cleaner
  • Synthetic hydraulic oil (recommended for cold start applications)
technical specifications
Metric


Operating data
Height top of ROPS 2,113 mm
Overall length w/ bucket 3,693.8 mm
Overall length w/o bucket 2,984.8 mm
Operating weight  3,914 kg
Height Hinge Pin Max 3,425 mm
Rated Operating Capacity 50% 1,451 kg
Dump height max. at max height 2,739 mm
Angle of departure  23 °
Tipping angle (bucket dump) w/bucket at max height 44 °
Ground clearance  227.7 mm
Breakout force max. - Bucket 31.1 kN
Breakout force max. - Boom 36.8 kN
Width  1,825.5 mm
Wheelbase  1,267.1 mm

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR-SCR
Engine performance  75 kW
Displacement  3,359 cm³
RPM / speed  2,500 rpm
Fuel tank capacity  151 l

Hydraulic system
Auxiliary Hydraulics- Standard Flow  83.8 l/min
Auxiliary Hydraulics- High Flow  120 l/min
Flow rate aux. (standard) 95.2 l/min
Flow rate aux. (high flow) 141.5 l/min
Pressure aux. relief 241 bar

Power transmission
Travel speed (low) 11.8 km/h
Travel speed (high) 19.7 km/h

Imperial


Operating data
Height top of ROPS 83.2 in
Overall length w/ bucket 145.4 in
Overall length w/o bucket 117.5 in
Operating weight  8,629 lb
Height Hinge Pin Max 134.8 in
Rated Operating Capacity 50% 3,200 lb
Dump height max. at max height 107.8 in
Angle of departure  23 °
Tipping angle (bucket dump) w/bucket at max height 44 °
Ground clearance  9 in
Breakout force max. - Bucket 6,941 lbf
Breakout force max. - Boom 8,200 lbf
Width  71.9 in
Wheelbase  49.9 in

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR-SCR
Engine performance  100 hp
Displacement  205 in³
RPM / speed  2,500 rpm
Fuel tank capacity  40 US gal

Hydraulic system
Auxiliary Hydraulics- Standard Flow  22.1 US gpm
Auxiliary Hydraulics- High Flow  31.7 US gpm
Flow rate aux. (standard) 25.1 US gpm
Flow rate aux. (high flow) 37.4 US gpm
Pressure aux. relief 3,500 psi

Power transmission
Travel speed (low) 7.3 mph
Travel speed (high) 12.2 mph
