ID # 19413624

Wacker Neuson Compact Track Loaders ST35

  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
  • Wacker Neuson Compact Track Loaders ST35
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact Track Loaders

Compact track loaders built with a rugged open design undercarriage for easy cleaning and drive motors that provide high torque for maximum pushing power, efficiency and reduced noise. Like the skid steer models, all units are built in the USA and are designed to handle tough applications, offer the best service accessibility in the industry and provide a comfortable cab with simple operation.

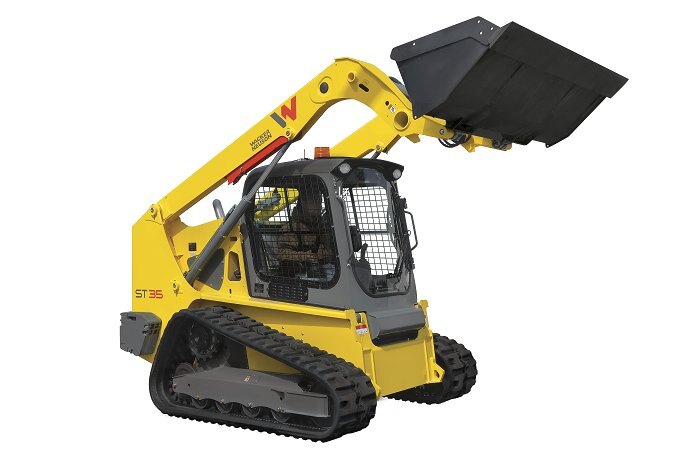

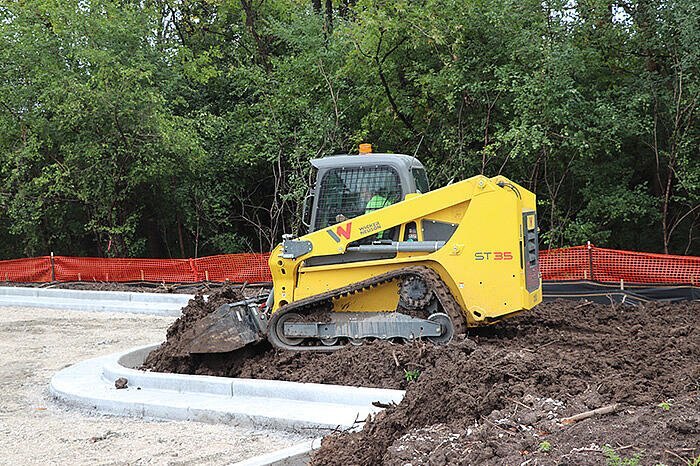

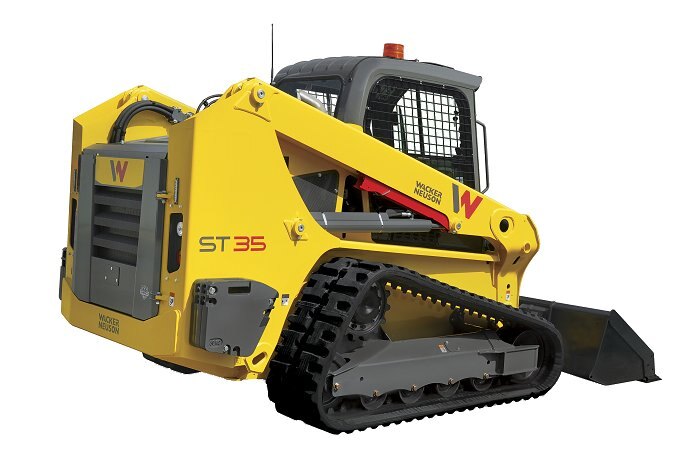

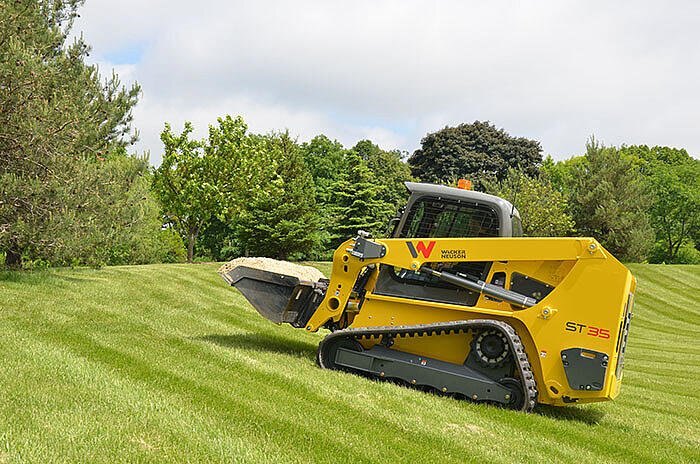

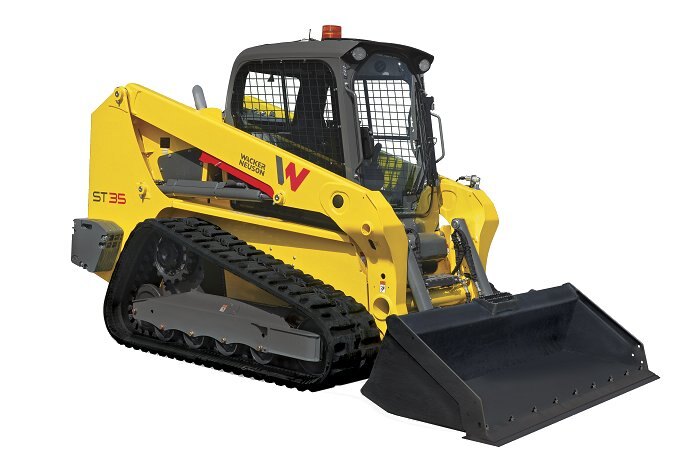

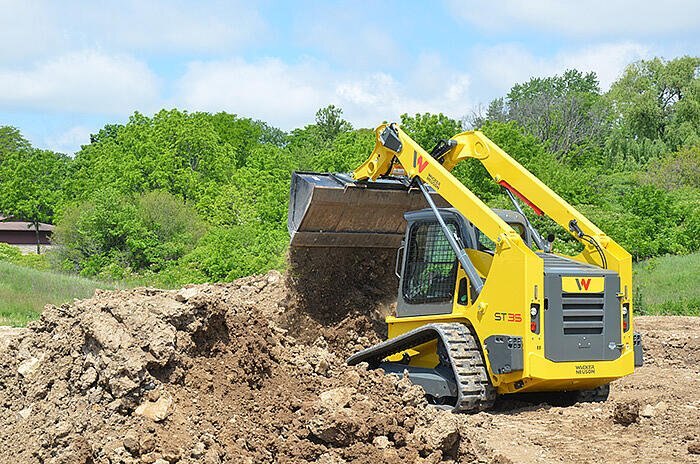

ST35 - Radial Lift Track Loader

The ST35 radial lift track loader delivers power and maneuverability. This machine delivers 3,500 pounds of rated operating capacity at 50% and a lift height up to 126.8 inches. The ST35 is powered by a 74.3 hp turbo-charged Kohler Tier 4 Final engine. Available with EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls, the machines can fit the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue and increasing productivity.
  • Standard two-speed transmission increases travel time on job sites giving the operator more time throughout the day to get more tasks completed.
  • Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
  • Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
  • Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
  • Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.
Specifications
Model
ST35
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Compact Track Loaders ST35 Ergonomic Cab Design

  • A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator

  • Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

  • With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.

Wacker Neuson Compact Track Loaders ST35

  • From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

  • Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.

Wacker Neuson Compact Track Loaders ST35 Accessibility

  • Best-in-class daily maintenance service access with a simple design and efficient layout means less time on daily service checks and more time on the job.

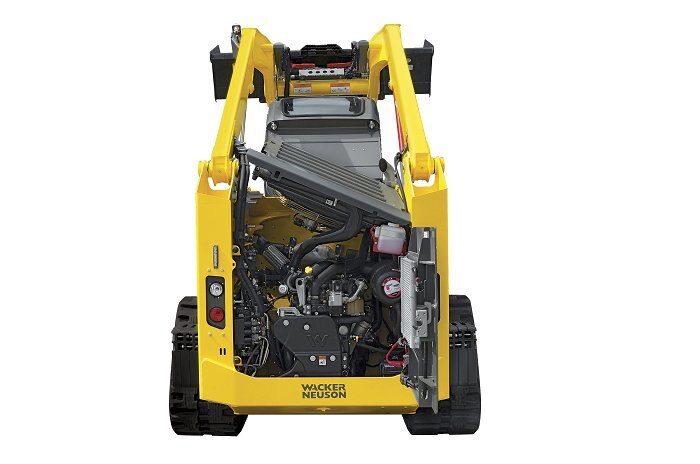

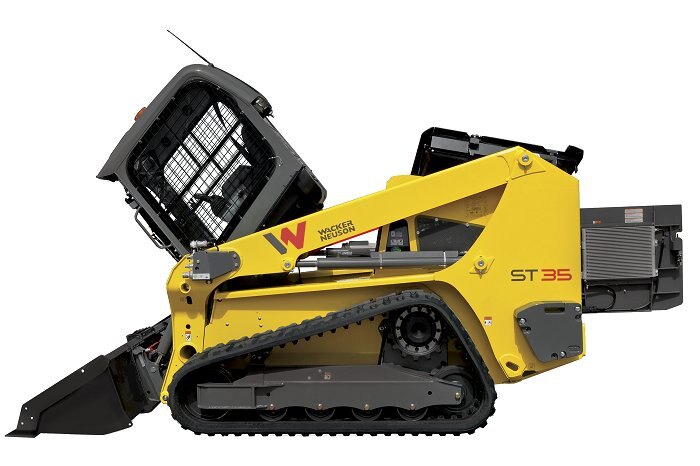

  • Cab fully tips forward with the arms down providing complete access to all maintenance components.

Wacker Neuson Compact Track Loaders ST35 Undercarriage

  • The undercarriage offers an open design that makes it easy to clean.
  • Drive motor technology provides reduces noise (compared to planetary drives) for operator comfort.
  • Simple design minimizes maintenance costs
  • Drive lines leading to the drive motors are completely internal, protected from harms way.
options

ST35 Options

  • Hydraulic Coupler
  • Enclosed Pressurized Cab, Heat, Air Conditioning
  • Engine Block Heater
  • One Way Hydraulic Bucket Leveling
  • Ride Control
  • Radio
  • High Flow: 31.7 gpm, not available with mechanical H-F controls
  • 14 Pin Front Electric Attachment Control
  • Counterweights
  • Air-ride seat
  • Heated air-ride seat
  • 3" seat belt
  • Foot throttle (for selectable EH controls only)
  • Back up camera
  • Dual beam work lights
  • Strobe beacon
  • Hazard light package (strobe beacon + 4-way flashers)
  • Zero drive hydraulic valve
  • Cyclonic engine pre-cleaner
  • Exhausts scavenging pre-cleaner
  • Dual battery (includes disconnect)
  • Battery disconnect
  • Synthetic hydraulic oil (recommended for cold start applications)
technical specifications
Metric


Operating data
Height top of ROPS 2,113 mm
Overall length w/ bucket 3,693.8 mm
Overall length w/o bucket 2,984.8 mm
Height Hinge Pin Max 3,220 mm
Operating weight  4,481 kg
Rated Operating Capacity ROC 50% 1,587 kg
Rated Operating Capacity ROC 35% 1,111 kg
Length of track on ground 1,606 mm
Dump height max. at max height 2,534 mm
Angle of departure  27 °
Tipping angle (bucket dump) w/ bucket at max height 44 °
Ground clearance  227.7 mm
Breakout force max. - Bucket 31.1 kN
Breakout force max. - Boom 33.6 kN
Bucket width  1,982 mm
Width w/o bucket 1,930 mm
Width Track 450 mm

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR
Engine performance  55 kW
Displacement  3,359 cm³
RPM / speed  2,500 rpm
Fuel tank capacity  151 l

Hydraulic system
Auxiliary Hydraulics- Standard Flow  83.8 l/min
Auxiliary Hydraulics- High Flow  120 l/min
Pressure aux. relief 241 bar

Power transmission
Travel speed low 10.3 km/h
Travel speed high 15.5 km/h

Imperial


Operating data
Height top of ROPS 83.2 in
Overall length w/ bucket 145.4 in
Overall length w/o bucket 117.5 in
Height Hinge Pin Max 126.8 in
Operating weight  9,879 lb
Rated Operating Capacity ROC 50% 3,500 lb
Rated Operating Capacity ROC 35% 2,450 lb
Length of track on ground 63 in
Dump height max. at max height 99.8 in
Angle of departure  27 °
Tipping angle (bucket dump) w/ bucket at max height 44 °
Ground clearance  9 in
Breakout force max. - Bucket 6,941 lbf
Breakout force max. - Boom 7,500 lbf
Bucket width  78 in
Width w/o bucket 76 in
Width Track 17.7 in

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR
Engine performance  74 hp
Displacement  205 in³
RPM / speed  2,500 rpm
Battery  950 CCA
Fuel tank capacity  40 US gal

Hydraulic system
Auxiliary Hydraulics- Standard Flow  22.1 US gpm
Auxiliary Hydraulics- High Flow  31.7 US gpm
Pressure aux. relief 3,500 psi

Power transmission
Travel speed low 6.4 mph
Travel speed high 9.6 mph
