Stock #  1

Wacker Neuson Compact Track Loaders ST45

  • Wacker Neuson Compact Track Loaders ST45
  • Wacker Neuson Compact Track Loaders ST45
  • Wacker Neuson Compact Track Loaders ST45
  • Wacker Neuson Compact Track Loaders ST45
  • Wacker Neuson Compact Track Loaders ST45
  • Wacker Neuson Compact Track Loaders ST45
  • Wacker Neuson Compact Track Loaders ST45
In Stock
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact Track Loaders

Compact track loaders built with a rugged open design undercarriage for easy cleaning and drive motors that provide high torque for maximum pushing power, efficiency and reduced noise. Like the skid steer models, all units are built in the USA and are designed to handle tough applications, offer the best service accessibility in the industry and provide a comfortable cab with simple operation.

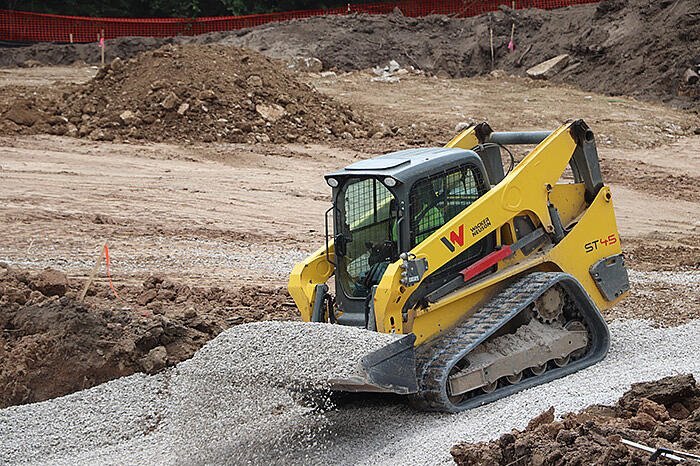

ST45 - Vertical Lift Compact Track Loader

The ST45 vertical lift compact track loader delivers high operating capacity and extended lift height, making it ideal for digging and loading. The ST45 delivers 4,500 pounds of operating capacity at 50% and a lift height up to 134.8 inches. The machine is powered by a 74.3 hp turbo-charged Kohler Tier 4 Final engine. The ST45 is available with EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls. The ergonomically designed controls and pressurized cab provides comfort and visibility, reducing operator fatigue and increasing productivity.
  • Standard two-speed transmission reduces travel time on job sites giving the operator more time throughout the day to get more tasks completed.
  • Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
  • Optional high flow hydraulics increases the range of usable attachments improving efficiency and productivity.
  • Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain this machine.
  • Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
Specifications
Model
ST45
Category Name
Equipment
Year
2023
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Compact Track Loaders ST45 Ergonomic Cab Design

  • A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator

  • Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

  • With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.

Wacker Neuson Compact Track Loaders ST45

  • From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

  • Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.

Wacker Neuson Compact Track Loaders ST45 Accessibility

  • Best-in-class daily maintenance service access with a simple design and efficient layout means less time on daily service checks and more time on the job.
  • Cab fully tips forward with the arms down providing complete access to all maintenance components.

Wacker Neuson Compact Track Loaders ST45 Undercarriage

  • The undercarriage offers an open design that makes it easy to clean.
  • Drive motor technology provides reduces noise (compared to planetary drives) for operator comfort.
  • Simple design minimizes maintenance costs
  • Drive lines leading to the drive motors are completely internal, protected from harms way.
options

ST45 Options

  • Hydraulic coupler
  • 17.7" (450 mm) wide construction tracks
  • 17.7" (450 mm) wide all season tracks
  • Diamond coating
  • Counterweights
  • Mechanical suspension seat
  • Air-ride seat
  • Heated air-ride seat
  • 3" seat belt
  • Foot throttle (for selectable EH controls)

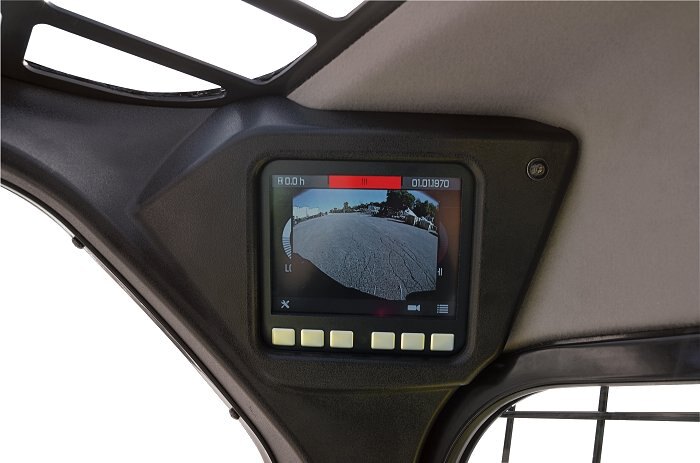

  • Back up camera (requires 5.7 " display)
  • Radio
  • Dual beam work lights
  • Strobe beacon
  • Hazard light package (strobe beacon + 4-way flashers)
  • Ride control
  • One-way hydraulic bucket leveling
  • High flow 31.7 gpm (not available with mechancal H-F controls
  • Zero-drift hydraulic valve
  • 14-pin attachment control
  • Block heater
  • Cyclonic engine pre-cleaner
  • Exhaust scavenging pre-cleaner
  • Dual battery (includes disconnect)
  • Battery disconnect
  • Synthetic hydraulic oil (recommended for cold start applications
technical specifications
Metric


Operating data
Height top of ROPS 2,113 mm
Overall length w/ bucket 3,693.8 mm
Overall length w/o bucket 2,984.8 mm
Height Hinge Pin Max 3,425 mm
Operating weight  4,657 kg
Rated Operating Capacity ROC 50% 2,041.2 kg
Rated Operating Capacity ROC 35% 1,428.8 kg
Length of track on ground 1,606 mm
Dump height max. at max height 2,739 mm
Angle of departure  27 °
Tipping angle (bucket dump) w/ bucket at max. height 44 °
Ground clearance  227.7 mm
Breakout force max. - Bucket 31.1 kN
Breakout force max. - Boom 36.7 kN
Bucket width  1,982 mm
Width w/o bucket 1,930 mm
Width track 450 mm

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR
Engine performance  55 kW
Displacement  3,359 cm³
RPM / speed  2,500 rpm
Fuel tank capacity  151 l

Hydraulic system
Auxiliary Hydraulics- Standard Flow  83.8 l/min
Auxiliary Hydraulics- High Flow  120 l/min
Pressure aux. relief 241 bar

Power transmission
Travel speed low 10.3 km/h
Travel speed high 15.5 km/h

Imperial


Operating data
Height top of ROPS 83.2 in
Overall length w/ bucket 145.4 in
Overall length w/o bucket 117.5 in
Height Hinge Pin Max 134.8 in
Operating weight  10,267 lb
Rated Operating Capacity ROC 50% 4,500 lb
Rated Operating Capacity ROC 35% 3,150 lb
Length of track on ground 63.2 in
Dump height max. at max height 107.8 in
Angle of departure  27 °
Tipping angle (bucket dump) w/ bucket at max. height 44 °
Ground clearance  9 in
Breakout force max. - Bucket 6,941 lbf
Breakout force max. - Boom 8,200 lbf
Bucket width  78 in
Width w/o bucket 70 in
Width track 17.7 in

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR ns 854 Tier 4 Final
Engine performance  74.3 hp
Displacement  205 in³
RPM / speed  2,500 rpm
Battery  950 CCA
Fuel tank capacity  40 US gal

Hydraulic system
Auxiliary Hydraulics- Standard Flow  22.1 US gpm
Auxiliary Hydraulics- High Flow  31.7 US gpm
Pressure aux. relief 3,500 psi

Power transmission
Travel speed low 6.4 mph
Travel speed high 9.6 mph
