ID # 19413627

Wacker Neuson Compact Track Loaders ST50

  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
  • Wacker Neuson Compact Track Loaders ST50
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact Track Loaders

Compact track loaders built with a rugged open design undercarriage for easy cleaning and drive motors that provide high torque for maximum pushing power, efficiency and reduced noise. Like the skid steer models, all units are built in the USA and are designed to handle tough applications, offer the best service accessibility in the industry and provide a comfortable cab with simple operation.
ST50 - Vertical Lift Skid Steer Loader

The 100 HP ST50 brings maximum power and efficiency to every job site. The ST50 delivers 5,000 pounds of rated operating capacity at 50% and a lift height up to 136.3 inches. The machine is equipped with a 4-cyl, Turbo Diesel Tier 4 Final engine. Available with EH Hand-Foot, and Selectable EH (ISO and H-Pattern) controls, the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue, increasing productivity.
  • Standard two-speed transmission increases travel time on the job sites giving the operator more time throughout the day to get more tasks completed.
  • Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
  • Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.
  • Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
  • Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
Specifications
Model
ST50
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

Wacker Neuson Compact Track Loaders ST50 Ergonomic Cab Design

  • A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator

  • Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

  • With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.

Wacker Neuson Compact Track Loaders ST50

  • From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

  • Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.

Wacker Neuson Compact Track Loaders ST50 Accessibility

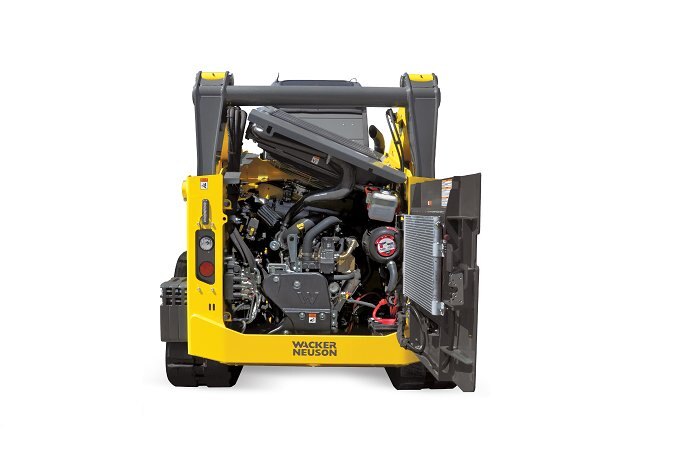

  • Best-in-class daily maintenance service access with a simple design and efficient layout means less time on daily service checks and more time on the job.

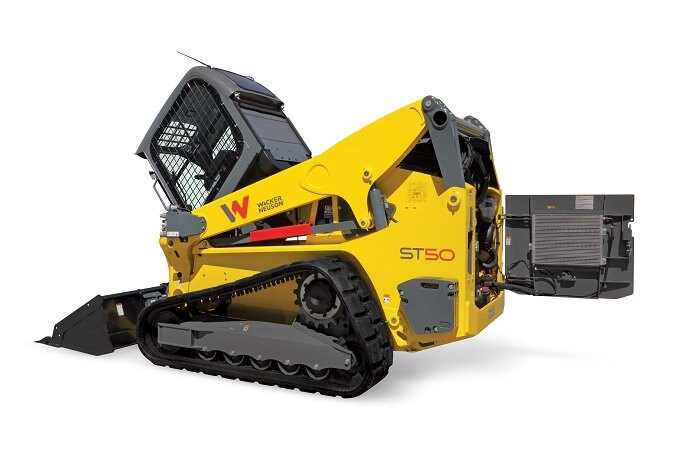

  • Cab fully tips forward with the arms down providing complete access to all maintenance components.
options

ST50 Options

  • Open ROPS canopy
  • Cab type - enclosed, heat only
  • Cab type - enclosed, heat, A/C
  • Selectable EH joystick controls (ISO/H-pattern, includes 5.7" color display)
  • EH hand-foot controls (joysticks + foot pedals, includes 5.7 " color dispaly)
  • Mechanical coupler
  • Hydraulic coupler
  • 450 mm wide construction tracks
  • 450 mm wide all season tracks
  • Diamond coating
  • Counterweights
  • Mechanical suspension seat
  • Air-ride seat
  • Heated air-ride seat
  • 3" seat belt
  • Foot throttle (for selectable EH control only)
  • Rearview camera (requires 5.7" color display)
  • Radio bluetooth streaming
  • Dual beam work lights
  •  Strobe beacon
  • Hazard light package (strobe beacon + 4-way flashers)
  • Ride control
  • One-way hydraulic bucket leveling
  • High flow 37.4 gpm
  • Zero-drift hydraulic valve
  • 14-pin attachment control
  • Block heater
  • Cyclonic engine pre-cleaner
  • Exhaust scavenging pre-cleaner
  • High capacity fuel tank (50 gal)
  • Synthetic hydraulic oil (recommended for cold start applications)
technical specifications
Metric


Operating data
Height top of ROPS 2,151 mm
Overall length w/ bucket 3,693.8 mm
Overall length w/o bucket 2,984.8 mm
Height Hinge Pin Max 3,463 mm
Operating weight  4,843 kg
Rated Operating Capacity ROC 50% 2,268 kg
Rated Operating Capacity ROC 35% 1,588 kg
Length of track on ground 1,667 mm
Dump height max. at max height 2,765 mm
Angle of departure  31 °
Tipping angle (bucket dump) w/ bucket at max. height 44 °
Ground clearance  265.7 mm
Breakout force max. - Bucket 31.1 kN
Breakout force max. - Boom 36.7 kN
Width w/o bucket 1,982 mm
Width track 450 mm

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR-SCR
Engine performance  75 kW
Displacement  3,359 cm³
RPM / speed  2,500 rpm
Fuel tank capacity  151 l

Hydraulic system
Auxiliary Hydraulics- Standard Flow  95.2 l/min
Auxiliary Hydraulics- High Flow High Flow 141.5 l/min
Pressure aux. relief 241 bar

Power transmission
Travel speed low 10 km/h
Travel speed high 16 km/h

Imperial


Operating data
Height top of ROPS 84.7 in
Overall length w/ bucket 145.4 in
Overall length w/o bucket 117.5 in
Height Hinge Pin Max 136.3 in
Operating weight  10,677 lb
Rated Operating Capacity ROC 50% 5,000 lb
Rated Operating Capacity ROC 35% 3,500 lb
Length of track on ground 65.6 in
Dump height max. at max height 108.9 in
Angle of departure  31 °
Tipping angle (bucket dump) w/ bucket at max. height 44 °
Ground clearance  10.5 in
Breakout force max. - Bucket 6,941 lbf
Breakout force max. - Boom 8,200 lbf
Width w/o bucket 78 in
Width track 17.7 in

Engine / Motor
Engine / Motor  Kohler KDI 3404TCR-SCR
Engine performance  100 hp
Displacement  205 in³
RPM / speed  2,500 rpm
Battery  950 CCA
Fuel tank capacity  40 US gal

Hydraulic system
Auxiliary Hydraulics- Standard Flow  25.1 US gpm
Auxiliary Hydraulics- High Flow High Flow 37.4 US gpm
Pressure aux. relief 3,500 psi

Power transmission
Travel speed low 6.2 mph
Travel speed high 9.9 mph
