Wacker Neuson Tracked Zero Tail Excavators EZ53

Overview

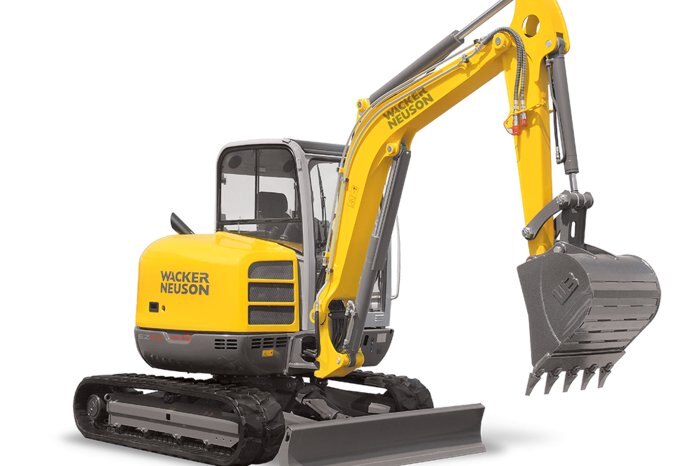

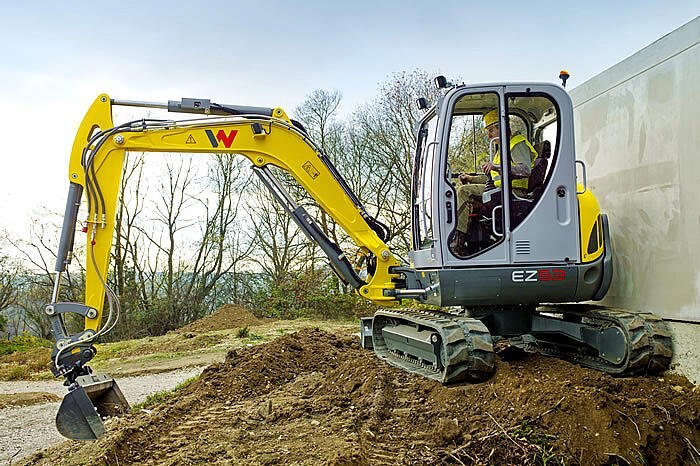

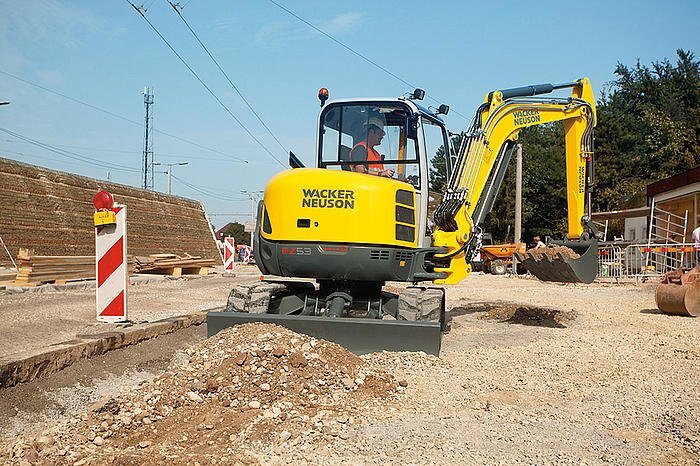

EZ53 - Zero tail swing offers excellent maneuverability

The EZ53 compact excavator combines the performance of a conventional track excavator with the excellent maneuverability of a zero tail swing machine. When revolved, the tail of the EZ53 does not project over the width of the tracks. Powered by an economical Tier 4 Final Perkins engine, this unit offers rubber tracks, dozer blade, boom mounted working light and control pattern change system. The excavator is offered in a canopy or full cab version each with a standard or longer dipperstick. Cab models feature standard air conditioning.
  • Zero tail swing and compact dimensions are ideal for working in confined areas
  • Large operator station is ergonomically designed for easy access and operator comfort improving productivity
  • Unit equipped with pattern control selector for versatility and ease of use
  • Tiltable operators platform allows for easy accessibility to all maintenance components
  • Optional Vertical Digging System (VDS): It enables progressive tilting of the superstructure by up to 15° to compensate for slopes up to 27%
Specifications
Model
EZ53
Category Name
Equipment
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
description

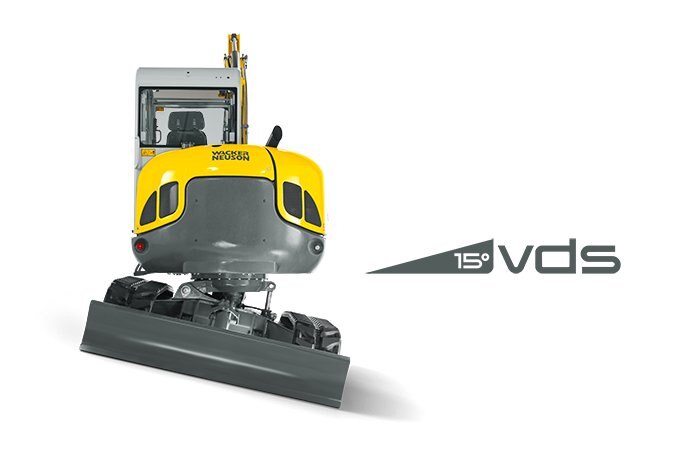

Wacker Neuson Tracked Zero Tail Excavators EZ53 VDS - Vertical Digging System

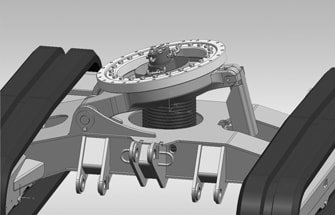

VDS enables progressive tilting of the superstructure by up to 15° with the push of a button, allowing the operator to compensate for slopes up to 27%. This makes precise vertical digging possible even on the most uneven of terrain. Cost-effectiveness and user comfort thus get a considerable boost.



technical specifications

EZ53 Technical specifications

Metric

Operating data
Shipping weight min. 4,961 kg
Operating weight  5,234 - 6,431 kg
Biting force max.  28 kN
Breakout force max.  38.1 kN
Digging depth max.  3,751 mm
Dumping height  3,678 - 3,943 mm
Digging radius max.  6,233 mm
Superstructure slewing speed  9.2 1/min
L x W x H  5,500 x 1,990 x 2,572 mm
Fuel tank capacity  83 l

Engine / Motor
Engine / Motor manufacturer  Perkins
Engine / Motor type  404F-22T
Engine / Motor  Water-cooled 4-cylinder diesel engine EPA III
Displacement  2,216 cm³
RPM / speed  3,000 rpm
Engine performance acc. to ISO 45.5 kW

Battery
Battery  88 Ah

Hydraulic system
Duty pump  Double variable- & two-gear pump
Max. flow rate  53.2 + 53.2 l/min
Max. flow rate  39.9 + 8.55 l/min
Operating pressure for working and traction hydraulics 230 bar
Operating pressure Slewing gear 190 bar
Hydraulic oil tank  73 l

Undercarriage
Travel speed max. 4.7 km/h
Chain width  400 mm
Ground clearance  322 mm

Dozer Blade
Width  1,990 mm
Height  380 mm
Stroke - Above ground 415 mm
Stroke - Below ground 455 mm

Sound level
Sound level (LwA) acc. to 2000/14/EC 94 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394 78 dB(A)

Imperial

Operating data
Shipping weight min. 10,937 lb
Operating weight  11,539 - 14,178 lb
Biting force max.  6,295 lbf
Breakout force max.  8,565 lbf
Digging depth max.  147.7 in
Dumping height  144.8 - 155.2 in
Digging radius max.  245.4 in
Superstructure slewing speed  9.2 rev/min
L x W x H  216.5 x 78.3 x 101.3 in
Fuel tank capacity  21.9 US gal

Engine / Motor
Engine / Motor manufacturer  Perkins
Engine / Motor type  404F-22T
Engine / Motor  Water-cooled 4-cylinder diesel engine EPA III
Displacement  135.2 in³
RPM / speed  3,000 rpm
Engine performance acc. to ISO 60.97 hp

Battery
Battery  88 CCA

Hydraulic system
Duty pump  Double variable- & two-gear pump
Max. flow rate  14.06 + 14.06 US gpm
Max. flow rate  10.54 + 2.26 US gpm
Operating pressure for working and traction hydraulics 3,336 psi
Operating pressure Slewing gear 2,756 psi
Hydraulic oil tank  19.3 US gal

Undercarriage
Travel speed max. 2.9 mph
Chain width  15.7 in
Ground clearance  12.7 in

Dozer Blade
Width  78.3 in
Height  15 in
Stroke - Above ground 16.3 in
Stroke - Below ground 17.9 in

Sound level
Sound level (LwA) acc. to 2000/14/EC 94 dB(A)
Cabin - specified sound pressure level LpA acc. to ISO 6394 78 dB(A)
