Grasshopper 125V 52" Deck

Overview

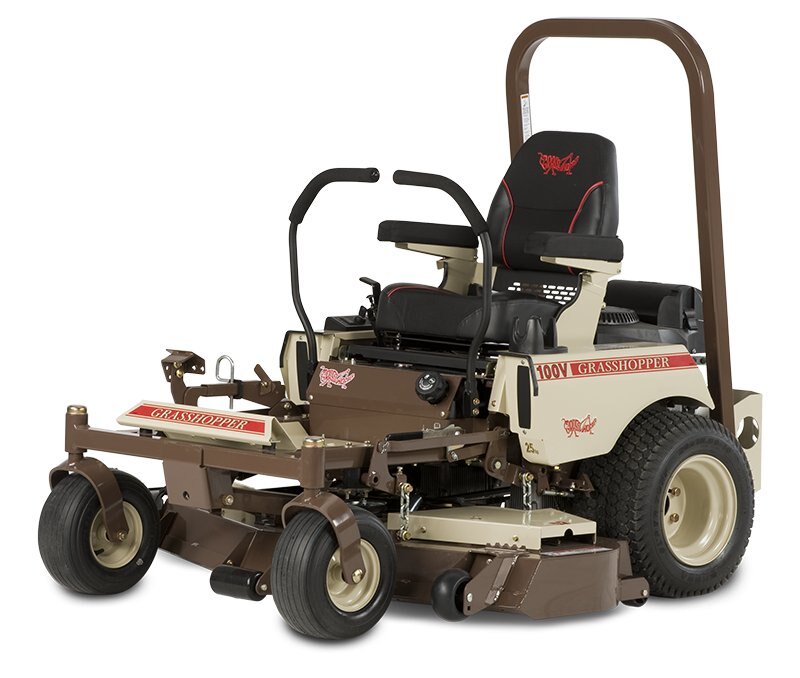

Grasshopper 125V 52 Deck MODEL 125V

Combining commercial-grade features and powerful performance in a compact design, the Model 125V riding lawn mower with zero-turn maneuverability is ideal for tight quarters mowing and is a great way to step up to Grasshopper comfort, quality and durability.
Specifications
Model
125V
Category Name
Lawn / Garden
Year
2025
Sale Type
New
Manufacturer
Grasshopper
Type
Design-matched hydrostatic system with in-line cooling fans. Fully hydraulic, integrated Parker HT Series transmission with variable displacement piston-type pumps and high-torque wheel motors for each drive wheel.
Speed
0 - 8.0 mph (0 - 12.9 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Brakes
Dynamic braking through hydrostatic transmission.
Starter
Solenoid shift
Ignition
Breakerless
Steering
One- or two-hand operation with adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position.
Parking Brake
Compression
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.
(Uncrated) – 52" Deck
830 lbs.(376.5 kg)
Battery (maintenance-free)
12 Volt
Front Wheels – All Models
13x6.50x6; pneumatic with greasable, double-sealed bearings to protect from grass wrap.
Deck Width (Mulch*) – 52" Deck
53.5 in.* (135.9 cm)
Deck Width (Side Discharge) – 52" Deck
65.5 in. (166.5 cm)
Drive Wheels - Standard (4-ply Rated) – 52" Deck
20x10x10 turf, 4-ply rated
features and benefits
  Features:

Heavy-duty Deck 100 Deck

  • Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge

  • Specially designed cutting chambers enhance airflow for better cut quality

  • Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection

  • Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength

  • Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.

  • Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion

Vigilant Operator Presence System™ 125V 52 Tree

  • Standard, low profile operator protection structure (OPS) with an adjustable seatbelt

  • Dampened steering levers that return to neutral from forward and reverse

  • Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position

B&S Commercial Turf Engine 24 Hp B&s Commercial Turf

  • 724 cc (44.2 cu. in.) Commercial Turf, V-Twin, OHV engine

  • Heavy-duty components enhance power and reliability

  • Five-step, Integrated Cyclonic Air Management System for cleaner performance

  • Extended maintenance intervals

  • Three-year limited commercial engine manufacturer warranty (see dealer for details)

Design-Matched Transmission HTE Drive

  • Design-matched, fully hydraulic Parker HT Series integrated pump-and-wheel-motor transmissions with in-line cooling fans and fine-particle filtration

  • No power-robbing gearbox or other wear parts for longer service life

  • Provides best-in-class transmission fluid change interval with no break-in period, reducing costs and maintenance time

Shock Impact Reduction System™(SIRS™)

  • Unrivaled comfort with iso-mounted Ultimate Suspension Ride™ scuff-resistant, Cordura®-covered, deep-cushioned, high-back seat with padded lumbar support and armrests

  • Roomy, iso-mounted, shock-absorbing footrest

Warranty Warrantybug 100vseries 2yr500com 4yr500res[1]

  • Commercial Use: 2-year or 500-hour (whichever comes first); limited warranty covering parts and labor.

  • Residential Use: 4-year or 500-hour (whichever comes first); limited warranty covering parts and labor.

Gramowers201412 245 (1) Ultimate Operator Station

ComfortZone™ seat eliminates jostles and jolts with coil-spring suspension and a fully padded, high-back seat, padded armrests and variable density foam cushion. Iso-mounting smooths the ride, erases fatigue and keeps the operator comfortably in control at faster mowing speeds

View Eze Console

Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach

Graresponsivesteering201412 086cmykflat (1)

One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.

Quickajust Bb

QuikAjust Drop Pin Height Adjustment

Raise and lower the deck easily with foot pedal and drop pin for precision cutting heights between 1.0 and 5.0 inches.

Maintenance

Reduced Maintenance

- Only two Access-Eze™ lubrication points cut maintenance time up to 95%

- Self-tensioning belts minimize cost and labor on routine maintenance



Built Long Life

Rugged Construction

- Robotically-welded steel construction for long-lasting durability

- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts

- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
