TYM Tractors TX2000 Front-End Loader

Specifications

Model	TX2000	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	86.9 in. / 2207 mm	Lift Capacity	1380 lb / 626 kgf	Bucket Capacity	6.4 cu. ft / 0.18 cu. m
Price	Contact for price CAD

Description

TX2000
Front-End Loader

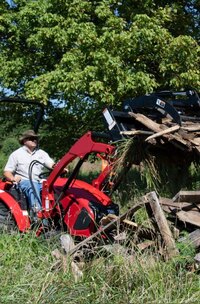

Enhance the functionality of your TYM sub-compact tractor with the TX2000 front-end loader. With impressive lift capacity and height, this TYM front-end loader can help you lift, move and handle material more effectively.

Engineered to deliver impressive performance with its enhanced features, the TX2000 front-end loader takes advantage of the power and capabilities of its compatible sub-compact tractor. With impressive dig depth and maximum rollback angle, you can handle materials more securely. Perform intense tasks without losing stability with TX2000’s impressive lift capacity and breakout force. Built with self-levelling features installed, the TX2000 front-end loader can help you focus on the work and improve your productivity.

CAPACITIES & REACH

Lift_height

86.9 in. (2207 mm)

Digging_depth

3.2 in. (82 mm)

Lift_capacity

1380 lb (626 kgf)

Self_leveling

Bucket_capacity

6.4 cu. ft (0.18 cu. m)

Max._dump_angle

53°

Max._rollback_angle

30°

Reach_with_bucket_on_ground

58.5 in. (1487 mm)

Clearance_with_bucket_dumped

64.6 in. (1641 mm)

Reach_at_maximum_lift_height

21.8 in. (553 mm)

Max._lift_height_under_level_bucket

81.9 in. (2081 mm)

Bucket_rollback_force_at_ground_line

1596 lb (724 kgf)

Relief_valve_setting_(Loader_control_valve)

2276 psi (160 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

2059 lb (934 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

1.77x1.18 in. (45x30 mm)

Bucket_cylinder

1.97x1.18 in. (50x30 mm)

Height_of_Attachment

19 in. (484 mm)

Weight_of_bucket_(3)

202.8 lb (92 kg)

Loader_total_weight_(1+2+3)

683.4 lb (310 kg)

Weight_of_mounting_frame_(2)

116.8 lb (53 kg)

Overall_height_in_carry_position

46.1 in. (1170 mm)

Attachment_used_for_specification

59.8 in. (1520 mm)

Length_of_Attachment_(to_pivot_point)

23.3 in. (592 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

363.8 lb (165 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

16.7 in. (423 mm)

CYCLE TIMES

Boom_raising_time

4.1 sec

Boom_lowering_time

2.3 sec

Bucket_dumping_time

4.1 sec

Bucket_rollback_time

2.6 sec
