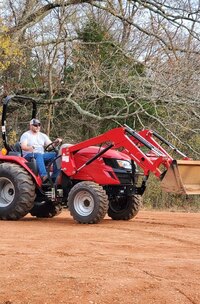

TYM Tractors TX39H Front-End Loader

Specifications

Model	TX39H	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	101.5 in. / 2578 mm	Lift Capacity	2116 lb / 960 kgf	Bucket Capacity	9.9 cu. ft / 0.28 cu. m
Price	Contact for price CAD

Description

TX39H
Front-End Loader
The TX39H front-end loader takes advantage of the power and durability of compatible TYM compact tractors. Ideal for tasks that require more strength, these front-end loaders can help you get your tasks done more efficiently.

Built for durable performance and excellent dig capabilities, the TX39H front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX39H front-end loader is ideal for more heavy duty applications.

CAPACITIES & REACH

Lift_height

101.5 in. (2578 mm)

Digging_depth

4.4 in. (112 mm)

Lift_capacity

2116 lb (960 kgf)

Self_leveling

Bucket_capacity

9.9 cu. ft (0.28 cu. m)

Max._dump_angle

33°

Max._rollback_angle

28°

Reach_with_bucket_on_ground

61.6 in. (1565 mm)

Clearance_with_bucket_dumped

79.9 in. (2030 mm)

Reach_at_maximum_lift_height

18.6 in. (473 mm)

Max._lift_height_under_level_bucket

93.3 in. (2369 mm)

Bucket_rollback_force_at_ground_line

2200 lb (998 kgf)

Relief_valve_setting_(Loader_control_valve)

2347 psi (165 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

3435 lb (1558 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

1.97x1.2 in. (50x30 mm)

Bucket_cylinder

1.97x1.2 in. (50x30 mm)

Height_of_Attachment

21.3 in. (540 mm)

Weight_of_bucket_(3)

227.1 lb (103 kg)

Loader_total_weight_(1+2+3)

952.9 lb (432 kg)

Weight_of_mounting_frame_(2)

265 lb (120 kg)

Overall_height_in_carry_position

56.3 in. (1430 mm)

Attachment_used_for_specification

66 in. (1675 mm)

Length_of_Attachment_(to_pivot_point)

23.6 in. (600 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

460.8 lb (209 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

19.3 in. (490 mm)

CYCLE TIMES

Boom_raising_time

5.5 sec

Boom_lowering_time

3.5 sec

Bucket_dumping_time

5.3 sec

Bucket_rollback_time

3.7 sec
