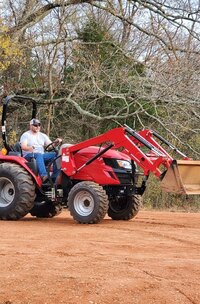

TYM Tractors TX47 Front-End Loader

Specifications

Model	TX47	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	105.6 in. / 2683 mm	Lift Capacity	2152 lb / 976.2 kgf	Bucket Capacity	9.9 cu. ft / 0.28 cu. m
Price	Contact for price CAD

Description

TX47
Front-End Loader
The TX47 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX47 front-end loader can help you get your tasks done more efficiently.loader takes advantage of the power and durability of compatible TYM compact tractors. Ideal for tasks that require more strength, these front-end loaders can help you get your tasks done more efficiently.

Built for durable performance and excellent dig capabilities, the TX47 front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX47 front-end loader is ideal for more heavy duty applications.

CAPACITIES & REACH

Lift_height

105.6 in. (2683 mm)

Digging_depth

10 in. (255 mm)

Lift_capacity

2152 lb (976.2 kgf)

Self_leveling

Bucket_capacity

9.9 cu. ft (0.28 cu. m)

Max._dump_angle

52°

Max._rollback_angle

35°

Reach_with_bucket_on_ground

70.7 in. (1795 mm)

Clearance_with_bucket_dumped

80.4 in. (2042 mm)

Reach_at_maximum_lift_height

15 in. (380 mm)

Max._lift_height_under_level_bucket

96.5 in. (2450 mm)

Bucket_rollback_force_at_ground_line

3012 lb (1366.1 kgf)

Relief_valve_setting_(Loader_control_valve)

2347 psi (165 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

3198 lb (1450.8 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.2x1.2 in. (55x30 m)

Bucket_cylinder

2.0x1.2 in. (50x30 m)

Height_of_Attachment

21.9 in. (556 mm)

Weight_of_bucket_(3)

229.3 lb (104 kg)

Loader_total_weight_(1+2+3)

1020.7 lb (463 kg)

Weight_of_mounting_frame_(2)

277.8 lb (126 kg)

Overall_height_in_carry_position

55.5 in. (1409 mm)

Attachment_used_for_specification

65.9 in. (1675 mm)

Length_of_Attachment_(to_pivot_point)

25.5 in. (647 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

513.7 lb (233 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

19.4 in. (492 mm)

CYCLE TIMES

Boom_raising_time

5.4 sec

Boom_lowering_time

3.8 sec

Bucket_dumping_time

4.0 sec

Bucket_rollback_time

2.5 sec
