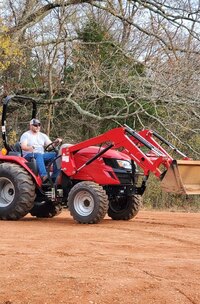

TYM Tractors TX55 Front-End Loader

Specifications

Model	TX55	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	109.1 in. / 2770 mm	Lift Capacity	2478 lb / 1124 kgf	Bucket Capacity	13.8 cu. ft / 0.39 cu. m
Price	Contact for price CAD

Description

TX55
Front-End Loader
The TX55 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, this front-end loader can help you get your tasks done more efficiently.

Built for durable performance and excellent dig capabilities, the TX55 front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX55 front-end loader is ideal for more heavy duty applications.

CAPACITIES & REACH

Lift_height

109.1 in. (2770 mm)

Digging_depth

5.1 in. (130 mm)

Lift_capacity

2478 lb (1124 kgf)

Self_leveling

Bucket_capacity

13.8 cu. ft (0.39 cu. m)

Max._dump_angle

48°

Max._rollback_angle

35°

Reach_with_bucket_on_ground

73.3 in. (1863 mm)

Clearance_with_bucket_dumped

80.8 in. (2052 mm)

Reach_at_maximum_lift_height

18.6 in. (472 mm)

Max._lift_height_under_level_bucket

99.2 in. (2519 mm)

Bucket_rollback_force_at_ground_line

4268 lb (1936 kgf)

Relief_valve_setting_(Loader_control_valve)

2489 psi (175 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

4938 lb (2240 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.4x1.4 in. (60x35 mm)

Bucket_cylinder

2.4x1.4 in. (65x35 mm)

Height_of_Attachment

21.9 in. (557 mm)

Weight_of_bucket_(3)

348 lb (158 kg)

Loader_total_weight_(1+2+3)

1261 lb (572 kg)

Weight_of_mounting_frame_(2)

348.3 lb (158 kg)

Overall_height_in_carry_position

56.9 in. (1445 mm)

Attachment_used_for_specification

72 in. (1830 mm)

Length_of_Attachment_(to_pivot_point)

29.8 in. (758 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

564.4 lb (256 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

22.8 in. (579 mm)

CYCLE TIMES

Boom_raising_time

5.4 sec

Boom_lowering_time

4.6 sec

Bucket_dumping_time

5.0 sec

Bucket_rollback_time

3.6 sec
