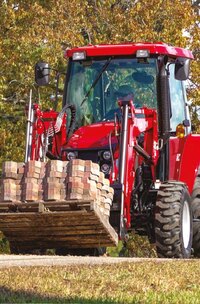

TYM Tractors BL200C Front-End Loader

Specifications

Model	BL200C	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	106.6 in. / 2709 mm	Lift Capacity	2701 lb / 1225 kgf	Bucket Capacity	9.5 cu. ft / 0.27 cu. m
Price	Contact for price CAD

Description

BL200C
Front-End Loader
The BL200C front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, this front-end loader can help you get your tasks done more efficiently.

Built for durable performance and excellent dig capabilities, the BL200C front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task at hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the BL200C front-end loader is ideal for more heavy-duty applications.

CAPACITIES & REACH

Lift_height

106.6 in. (2709 mm)

Digging_depth

3.1 in. (78 mm)

Lift_capacity

2701 lb (1225 kgf)

Self_leveling

Bucket_capacity

9.5 cu. ft (0.27 cu. m)

Max._dump_angle

58°

Max._rollback_angle

35°

Reach_with_bucket_on_ground

69.2 in. (1758 mm)

Clearance_with_bucket_dumped

78.2 in. (1987 mm)

Reach_at_maximum_lift_height

14.6 in. (371 mm)

Max._lift_height_under_level_bucket

98.1 in. (2491 mm)

Bucket_rollback_force_at_ground_line

2844 lb (1290 kgf)

Relief_valve_setting_(Loader_control_valve)

2532 psi (178 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

3660 lb (1660 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.2X1.2 in. (55X30 mm)

Bucket_cylinder

2.0X1.2 in. (55X30 mm)

Height_of_Attachment

20.9 in. (530 mm)

Weight_of_bucket_(3)

269 lb (122 kg)

Loader_total_weight_(1+2+3)

1075 lb (487 kg)

Weight_of_mounting_frame_(2)

284 lb (129 kg)

Overall_height_in_carry_position

50.9 in. (1293 mm)

Attachment_used_for_specification

72 in. (1830 mm)

Length_of_Attachment_(to_pivot_point)

28.2 in. (716 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

521 lb (236 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

20.9 in. (530 mm)

CYCLE TIMES

Boom_raising_time

4.3 sec

Boom_lowering_time

2.8 sec

Bucket_dumping_time

4.2 sec

Bucket_rollback_time

2.9 sec
