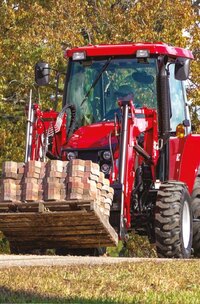

TYM Tractors TX65SL Front-End Loader

Specifications

Model	TX65SL	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	124.8 in. / 3169 mm	Lift Capacity	3122 lb / 1416 kgf	Bucket Capacity	15.2 cu. ft / 0.43 cu. m
Price	Contact for price CAD

Description

TX65SL
Front-End Loader
The TX65SL compliments your compact utility tractor’s capabilities and versatility. With enhanced features, the TX65SL delivers impressive performance without compromising safety.

Engineered to have impressive dig depth and maximum rollback angle, the TX65SL is a cut above the rest. With a great lift capacity and breakout force, this TYM front-end loader attachment enhances the strength and versatility of your T654 compact utility tractor. Built with a self-levelling feature and designed with excellent boom raising and lowering time, the TX65SL can help optimize your performance.

CAPACITIES & REACH

Lift_height

124.8 in. (3169 mm)

Digging_depth

9.4 in. (240 mm)

Lift_capacity

3122 lb (1416 kgf)

Self_leveling

Available

Bucket_capacity

15.2 cu. ft (0.43 cu. m)

Max._dump_angle

79°

Max._rollback_angle

45°

Reach_with_bucket_on_ground

82.7 in. (2100 mm)

Clearance_with_bucket_dumped

89.4 in. (2270 mm)

Reach_at_maximum_lift_height

8.2 in. (208 mm)

Max._lift_height_under_level_bucket

114.7 in. (2913 mm)

Bucket_rollback_force_at_ground_line

3331 lb (1511 kgf)

Relief_valve_setting_(Loader_control_valve)

2987 psi (210 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

5225 lb (2370 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.6X1.4 in. (65X35 mm)

Bucket_cylinder

2.6x1.4 in. (65x35 mm)

Height_of_Attachment

21.9 in. (557 mm)

Weight_of_bucket_(3)

370.4 lb (168 kg)

Loader_total_weight_(1+2+3)

1585.1 lb (719 kg)

Weight_of_mounting_frame_(2)

423.3 lb (192 kg)

Overall_height_in_carry_position

69.7 in. (1770 mm)

Attachment_used_for_specification

78 in. (1982 mm)

Length_of_Attachment_(to_pivot_point)

33.9 in. (861 m)

Weight_of_boom_&_quick_attach_mechanism_(1)

791.5 lb (359 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

22.8 in. (579 mm)

CYCLE TIMES

Boom_raising_time

5.9 sec

Boom_lowering_time

4.2 sec

Bucket_dumping_time

4.8 sec

Bucket_rollback_time

3.4 sec
