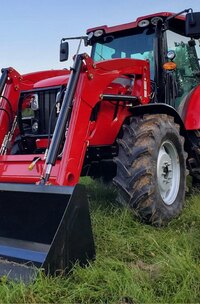

TYM Tractors TX75SL Front-End Loader

Specifications

Model	TX75SL	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	133.8 in. / 3398 mm	Lift Capacity	3325 lb / 1508 kgf	Bucket Capacity	16.2 cu. ft / 0.46 cu. m
Price	Contact for price CAD

Description

TX75SL
Front-End Loader
TX75SL front-end loader is designed for durable performance with enhanced features that are a cut above the rest. Taking full advantage of the capabilities of the TYM T754 compact utility tractor, this attachment is best for heavy duty applications.

Built to complement the power and versatility of the TYM T754 compact utility tractor, the TX75SL front-end loader enables you to move and collect soil, mulch, and gravel quickly and more efficiently. Fitted with a self-levelling system, TX75SL front-end loader ensures that the attachment remains parallel to the ground when the boom is raised. With impressive breakout force and maximum lift angle, the TX75SL is capable of lifting heavier loads without compromising safety.

CAPACITIES & REACH

Lift_height

133.8 in. (3398 mm)

Digging_depth

9.4 in. (240 mm)

Lift_capacity

3325 lb (1508 kgf)

Self_leveling

Available

Bucket_capacity

16.2 cu. ft (0.46 cu. m)

Max._dump_angle

53°

Max._rollback_angle

45°

Reach_with_bucket_on_ground

85.4 in. (2170 mm)

Clearance_with_bucket_dumped

99.4 in. (2524 mm)

Reach_at_maximum_lift_height

24 in. (610 mm)

Max._lift_height_under_level_bucket

123 in. (3123 mm)

Bucket_rollback_force_at_ground_line

3898 lb (1768 kgf)

Relief_valve_setting_(Loader_control_valve)

2489 psi (175 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

5485 lb (2488 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.75x1.6 in. (70x40 mm)

Bucket_cylinder

2.75x1.6 in. (70x40 mm)

Height_of_Attachment

22.2 in. (565 mm)

Weight_of_bucket_(3)

379.8 lb (172 kg)

Loader_total_weight_(1+2+3)

1851.9 lb (840 kg)

Weight_of_mounting_frame_(2)

471.8 lb (214 kg)

Overall_height_in_carry_position

70.5 in. (1790 mm)

Attachment_used_for_specification

83 in. (2108 mm)

Length_of_Attachment_(to_pivot_point)

32.9 in. (835 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

1000.9 lb (454 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

23 in. (585 mm)

CYCLE TIMES

Boom_raising_time

7 sec

Boom_lowering_time

4.7 sec

Bucket_dumping_time

4.8 sec

Bucket_rollback_time

3.2 sec
