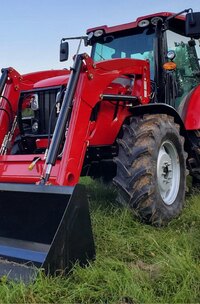

TYM Tractors TX110SL Front-End Loader

Specifications

Model	TX110SL	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	TYM Tractors	Odometer	km
Lift Height	144.4 in. / 3667 mm	Lift Capacity	4129 lb / 1873 kgf	Bucket Capacity	19.1 cu. ft / 0.54 cu. m
Price	Contact for price CAD

Description

TX110SL
Front-End Loader
TX110SL front-end loader is designed for durable performance with enhanced features that are a cut above the rest. Taking full advantage of the capabilities of the TYM T1104 utility tractor, this attachment is best for heavy duty applications.

Built to complement the power and versatility of TYM utility tractors, the TX110SL front-end loader enables you to move and collect soil, mulch, and gravel quickly and more efficiently. Fitted with a self-levelling system, TX110SL front-end loader ensures that the attachment remains parallel to the ground when the boom is raised. With impressive breakout force and maximum lift angle, the TX110SL is capable of lifting heavier loads without compromising safety.

CAPACITIES & REACH

Lift_height

144.4 in. (3667 mm)

Digging_depth

10.2 in. (260 mm)

Lift_capacity

4129 lb (1873 kgf)

Self_leveling

Available

Bucket_capacity

19.1 cu. ft (0.54 cu. m)

Max._dump_angle

56°

Max._rollback_angle

48°

Reach_with_bucket_on_ground

93.1 in. (2366 mm)

Clearance_with_bucket_dumped

115 in. (2921 mm)

Reach_at_maximum_lift_height

23 in. (584 mm)

Max._lift_height_under_level_bucket

134.6 in. (3418 mm)

Bucket_rollback_force_at_ground_line

4189 lb (1900 kgf)

Relief_valve_setting_(Loader_control_valve)

2845 psi (200 kg/sq. cm)

Breakout_force_at_ground_level,_pivot_points

6025 lb (2733 kgf)

DIMENSIONS & WEIGHTS

Lift_cylinder

2.8x1.6 in. (70x40 mm)

Bucket_cylinder

2.8x1.6 in. (70x40 mm)

Height_of_Attachment

24.1 in. (611 mm)

Weight_of_bucket_(3)

434.3 lb (197 kg)

Loader_total_weight_(1+2+3)

2195.8 lb (996 kg)

Weight_of_mounting_frame_(2)

687.8 lb (312 kg)

Overall_height_in_carry_position

76 in. (1931 mm)

Attachment_used_for_specification

86.6 in. (2200 mm)

Length_of_Attachment_(to_pivot_point)

33 in. (839 mm)

Weight_of_boom_&_quick_attach_mechanism_(1)

1073.6 lb (487 kg)

Depth_of_Attachment_(to_the_back_of_the_inner_shell)

25.1 in. (639 mm)

CYCLE TIMES

Boom_raising_time

4.8 sec

Boom_lowering_time

3.3 sec

Bucket_dumping_time

3.2 sec

Bucket_rollback_time

2.2 sec
