- Ideally suited for construction sites where durability, reliability and flexibility are required to supply continuous power for applications such as lighting, cranes, concrete mixers and conveyor belts.
- Brushless, oversized alternators with separate excitation winding and AVR (Automatic Voltage Regulation) provide superior motor starting and enhanced ability to run non-linear loads.
- Single switch start and simple, uncluttered control panel provide unmatched ease of use.
- Automatic remote start capability standard which is ideal for temporary standby applications.
- Fluid containment system, standard. Factory-installed customized options are available. These include, but are not limited to, cold weather options, fully equipped highway-ready trailers, and a camlock panel.
Today's HoursWednesday 8:00 am - 5:30 pm
| Monday | 8:00 am - 5:30 pm |
| Tuesday | 8:00 am - 5:30 pm |
| Wednesday | 8:00 am - 5:30 pm |
| Thursday | 8:00 am - 5:30 pm |
| Friday | 8:00 am - 5:30 pm |
| Saturday | Closed |
| Sunday | Closed |
Get Directions
7213 LINE 86 WALLENSTEIN, ON N0B 2S0, CANADA
ID # 19413517

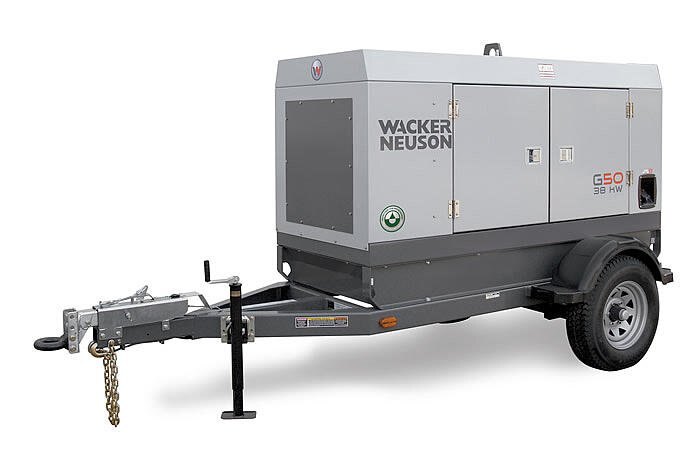

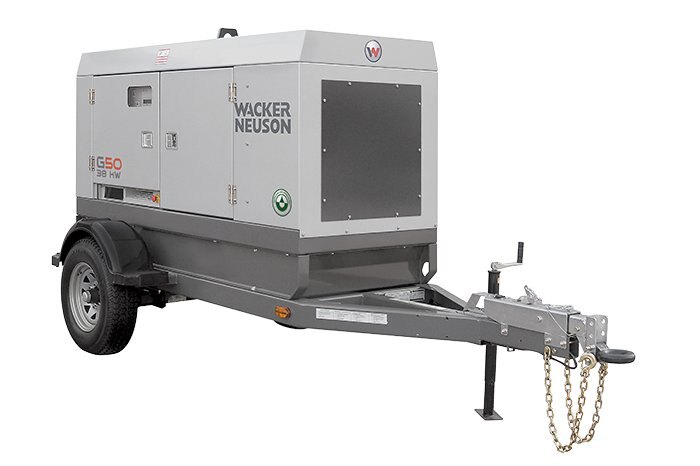

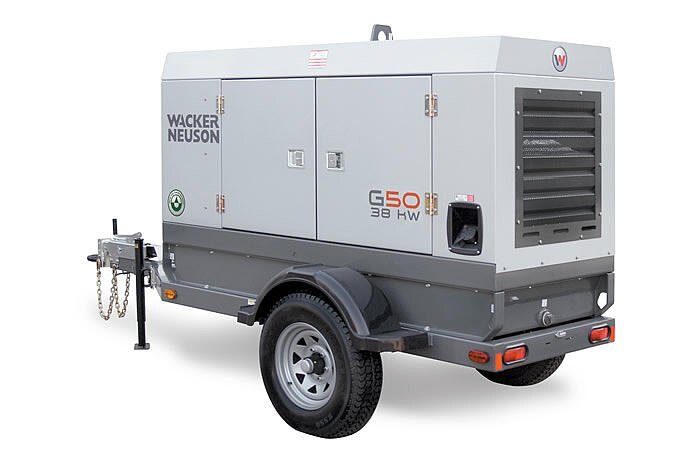

Wacker Neuson Mobile Generators G50
Call for Price
Overview
Specifications
g50 technical specifications
|
G50 - Durable mobile generator offers reliable power
|
|
|
Model
G50
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Wacker Neuson
G50 Technical Specifications
Metric
| G50 (T4F) | G50 (T4F) 600V | |
|---|---|---|
Dimensions | ||
| L x W x H Operating (Skid) mm | 2445 x 965 x 1346 | 2445 x 965 x 1346 |
| L x W x H Shipping (Skid) mm | 2540 x 1029 x 1654 | 2540 x 1029 x 1654 |
| L x W x H Shipping/Operating (Trailer) mm | 4064 x 1715 x 2032 | 4064 x 1715 x 2032 |
Weights | ||
| Weight Dry (Skid) kg | 1,262 | 1,262 |
| Weight Operating (Skid) kg | 1,536 | 1,536 |
| Weight Shipping (Skid) kg | 1,333 | 1,607 |
| Weight Operating (Trailer) kg | 1,936 | 1,936 |
| Weight Shipping (Trailer) kg | 1,661 | 1,661 |
Operating data | ||
| Trailer coupling Type | Pintle | Pintle |
| Standby output kW | 42 | 42 |
| Prime output kW | 38 | 38 |
| Voltage 3 Phase V | 240 / 480 | 240 / 480 / 600 |
| Current 3 Phase (Prime) A | 114 / 57 | 115 / 58 / 46 |
| Current 1 Phase (Prime) A | 120 / 240 | 120 / 240 |
| Voltage 3 Phase V | 208, 220, 240, 416, 440, 480 | 208, 220, 240, 416, 440, 480, 600 |
| Voltage 1 Phase V | 120, 127, 139, 240, 254, 277 | 120, 127, 139, 240, 254, 277, 346 |
| Circuit breaker (Main) A | 175 | 175 |
| Frequency Hz | 60 | 60 |
| Power factor 1 Phase cos Φ 1~ | 1 | 1 |
| Power factor 3 Phase cos Φ 3~ | 0.8 | 0.8 |
| Sound level (LwA) at Prime (23 ft / 7 m) dB(A) | 67.7 | 67.7 |
| Receptacles -20 Amp GFI Duplex | 2 | 2 |
| Receptacles -50 Amp Twist Lock | 3 | 3 |
Engine / Motor | ||
| Engine / Motor | Liquid-Cooled, 4 Cylinder | Liquid-Cooled, 4 Cylinder |
| Engine / Motor manufacturer | Isuzu | Isuzu |
| Emissions Certified | Tier IV | Tier IV |
| Displacement cm³ | 2,179 | 2,179 |
| Operating performance SAE J1349 kW | 49 | 49 |
| Operating performance SAE J1995, ISO 8528-1 kW | 44 | |
| at rpm rpm | 1,800 | 1,800 |
| Coolant Capacity l | 15.1 | 15.1 |
| Engine oil Capacity l | 10.4 | 10.4 |
| Fuel type | #1/#2 ULSD | Diesel |
| Fuel consumption (Prime Load) l/h | 11.4 | 11.4 |
| Tank capacity -Fuel l | 318 | 318 |
| Quantity (Battery) | 1 | 1 |
| Battery V | 12 | 12 |
| Generator model | Mecc Alte, Brushless w/AVR | Mecc Alte, Brushless w/AVR |
| Voltage control No Load to Full Load +/- % | 1 | 1 |
| Voltage control Steady State +/- % | 0.2 | 0.2 |
| Generator insulation (class) | H | H |
| Frequency (Generator Speed) Hz | 60 | 60 |
| Runtime at 100% Prime Load h | 24.3 | 24.3 |
Imperial
| G50 (T4F) | G50 (T4F) 600V | |
|---|---|---|
Dimensions | ||
| L x W x H Operating (Skid) in | 96.25 x 38 x 53 | 96.25 x 38 x 53 |
| L x W x H Shipping (Skid) in | 100 x 40.5 x 65.1 | 100 x 40.5 x 65.1 |
| L x W x H Shipping/Operating (Trailer) in | 160 x 67.5 x 80 | 160 x 67.5 x 80 |
Weights | ||
| Weight Dry (Skid) lb | 2,783 | 2,783 |
| Weight Operating (Skid) lb | 3,388 | 3,388 |
| Weight Shipping (Skid) lb | 2,939 | 3,544 |
| Weight Operating (Trailer) lb | 4,268 | 4,268 |
| Weight Shipping (Trailer) lb | 3,663 | 3,663 |
Operating data | ||
| Trailer coupling Type | Pintle | Pintle |
| Standby output kW | 42 | 42 |
| Prime output kW | 38 | 38 |
| Voltage 3 Phase V | 240 / 480 | 240 / 480 / 600 |
| Current 3 Phase (Prime) A | 114 / 57 | 115 / 58 / 46 |
| Current 1 Phase (Prime) A | 120 / 240 | 120 / 240 |
| Voltage 3 Phase V | 208, 220, 240, 416, 440, 480 | 208, 220, 240, 416, 440, 480, 600 |
| Voltage 1 Phase V | 120, 127, 139, 240, 254, 277 | 120, 127, 139, 240, 254, 277, 346 |
| Circuit breaker (Main) A | 175 | 175 |
| Frequency Hz | 60 | 60 |
| Power factor 1 Phase cos Φ 1~ | 1 | 1 |
| Power factor 3 Phase cos Φ 3~ | 0.8 | 0.8 |
| Sound level (LwA) at Prime (23 ft / 7 m) dB(A) | 67.7 | 67.7 |
| Receptacles -20 Amp GFI Duplex | 2 | 2 |
| Receptacles -50 Amp Twist Lock | 3 | 3 |
Engine / Motor | ||
| Engine / Motor | Liquid-Cooled, 4 Cylinder | Liquid-Cooled, 4 Cylinder |
| Engine / Motor manufacturer | Isuzu | Isuzu |
| Emissions Certified | Tier IV | Tier IV |
| Displacement in³ | 133 | 133 |
| Operating performance SAE J1349 hp | 66 | 66 |
| Operating performance SAE J1995, ISO 8528-1 hp | 59 | |
| at rpm rpm | 1,800 | 1,800 |
| Coolant Capacity US qt | 16 | 16 |
| Engine oil Capacity US qt | 11 | 11 |
| Fuel type | #1/#2 ULSD | Diesel |
| Fuel consumption (Prime Load) US gal/h | 3 | 3 |
| Tank capacity -Fuel US gal | 84 | 84 |
| Quantity (Battery) | 1 | 1 |
| Battery V | 12 | 12 |
| Generator model | Mecc Alte, Brushless w/AVR | Mecc Alte, Brushless w/AVR |
| Voltage control No Load to Full Load +/- % | 1 | 1 |
| Voltage control Steady State +/- % | 0.2 | 0.2 |
| Generator insulation (class) | H | H |
| Frequency (Generator Speed) Hz | 60 | 60 |
| Runtime at 100% Prime Load h | 24.3 | 24.3 |
